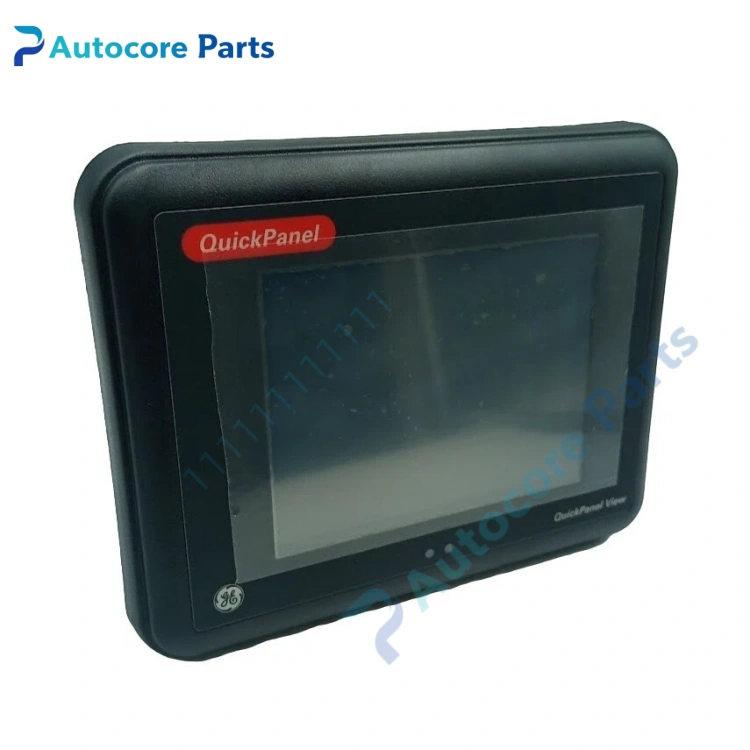

GE Fanuc IC754VSL06CTD Touch Panel HMI

Feature & Principle

It is GE Fanuc QuickPanel View series 6-inch color TFT human machine interface with Windows CE system, configured by Proficy Machine Edition software. It reads PLC data, sets parameters, displays alarms and logs data. Equipped with RS232/RS485 serial port, 10/100M Ethernet, USB and SD card slot. Supports Modbus, SNPX protocols to connect GE VersaMax and Series 90 PLC. Front panel IP65 rated, panel flush mounting. This model is discontinued, used for spare replacement of old production lines, machine tools and water treatment control cabinets.

Specifications

Model: IC754VSL06CTD Brand: GE Fanuc Series: QuickPanel View Display: 6 inch TFT color, 320×240 Touch type: Analog resistive touch Power supply: 12~30 VDC (24VDC typical) Memory: 32MB DRAM Communication: RS232, RS485, 10/100 Ethernet, USB, SD slot Front protection: IP65 Mounting: Panel flush mount Software: Proficy Machine Edition Application: Production line, machine tool, water treatment, legacy PLC system Certification: CE, UL

Components & Diagnostics

TFT display assembly, resistive touch glass, main control board, communication chip, backup lithium battery, status LED. Common faults: touch drift, backlight failure, program loss, communication offline, low battery data loss.

Product Brief

IC754VSL06CTD touch panel, GE Fanuc QuickPanel View industrial HMI spare widely used for old automation cabinet overhaul and replacement.
