GE Fanuc IC800SSD107RS1-CC Servo Amplifier

Technical SpecificationsModel：IC800SSD107RS1-CC Brand：GE Fanuc Product Type: Series 800 standalone servo amplifier unit for CNC machine motion control

Module Feature:Function:Three closed-loop control (current loop, velocity loop, position loop) for servo motor,process position command from CNC controller,output PWM power to drive servo motor,read differential encoder feedback for closed-loop positioning Input voltage:90~250VAC, single-phase / three-phase power input High speed current control loop, fast response for high dynamic motion Pulse/direction or analog ±10V velocity command input Differential quadrature encoder feedback interface Built-in overcurrent, overvoltage, undervoltage, overheat, motor overload and encoder fault protection LED status indicators:Power, RUN, Fault, Alarm Parameter storage on onboard non-volatile memory, support gain tuning Compatible with GE Fanuc Series800 servo motor Fan cooling structure for continuous heavy load operation Hardware fault self-diagnosis for power stage and feedback circuit

Electrical ParametersPower Input:90~250VAC, single/3 phase Control command:±10V analog velocity command or pulse train command Feedback:Differential line driver encoder signal

Mechanical & Structure:Mounting:Panel mount inside electrical cabinet Protection class:IP20 Weight:3.6kg

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC800SSD107RS1-CC belongs to GE Fanuc Series800 servo family. Matched with Series800 servo motor and GE Fanuc CNC controller. Widely applied on CNC machining center,lathe and high-precision automation positioning equipment.

Function

IC800SSD107RS1-CC is high-performance servo amplifier manufactured by GE Fanuc. It receives motion command signal from CNC host controller, outputs PWM power to drive servo motor. The encoder feedback forms closed loop to guarantee positioning precision. Multiple safety protection circuits prevent damage caused by overload, overvoltage and wiring error. LED indicators display operating status and alarm codes for maintenance troubleshooting.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all cabinet AC power. Mount IC800SSD107RS1-CC on cabinet panel. Connect AC main power, motor power cable, encoder feedback cable and control command wiring. Set servo parameters, perform auto-tuning, power on and test axis homing and motion operation.

Interface

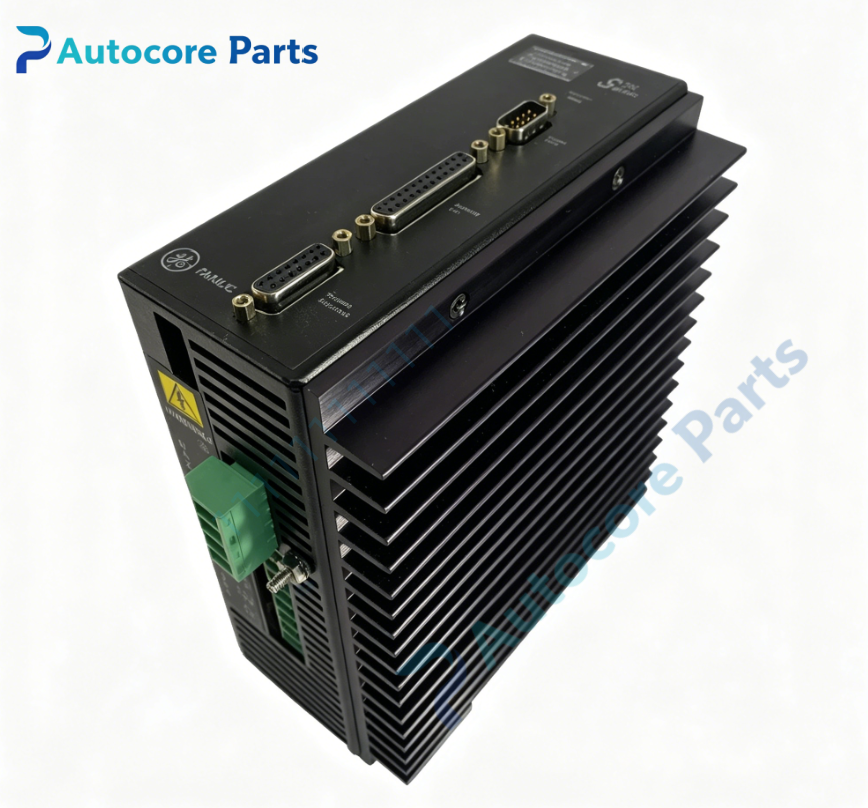

AC power terminal, servo motor power terminal, differential encoder feedback port, analog / pulse command signal terminal, status LED indicators for GE Fanuc IC800SSD107RS1-CC.

Feature

Original GE Fanuc IC800SSD107RS1-CC Series800 servo drive,90~250VAC single/3 phase input,three-loop closed control,comprehensive hardware protection,encoder feedback interface,onboard alarm LED indicators,UL & CE certified. This spare unit is used for CNC machine Series800 servo motion control system maintenance and hardware replacement.

Diagnostic

Axis no movement:Check AC power supply,command wiring and encoder feedback cable. Overspeed / tracking error alarm:Inspect servo gain setting,encoder wiring and mechanical binding. Drive fault LED on:Troubleshoot overheat,overcurrent,power module damage.

Product Brief

IC800SSD107RS1-CC is GE Fanuc legacy Series800 servo amplifier,with full closed-loop motion control for CNC machine tool axes,discontinued servo drive spare unit.
