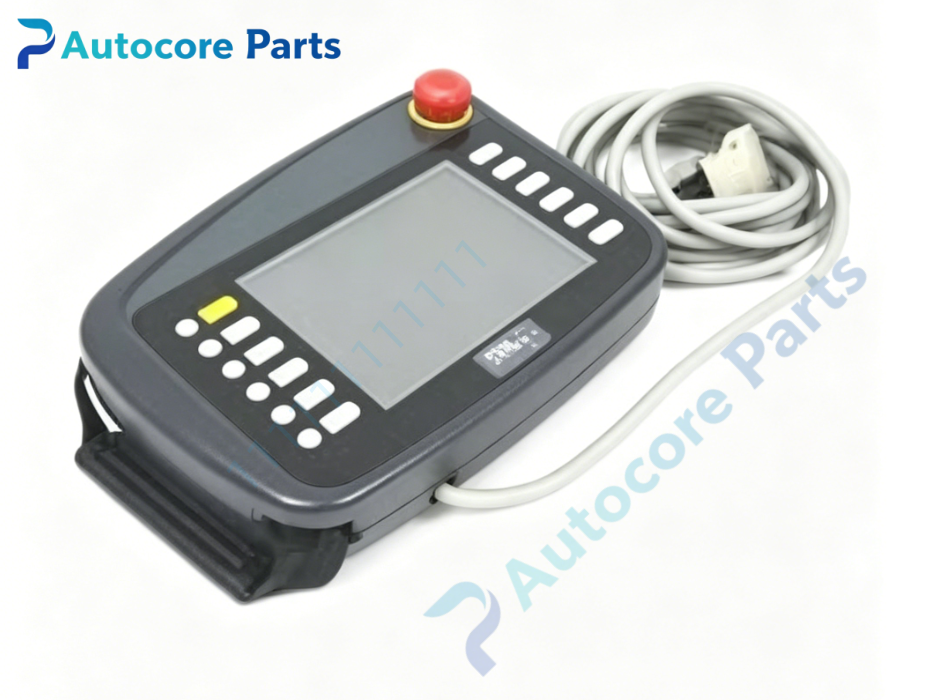

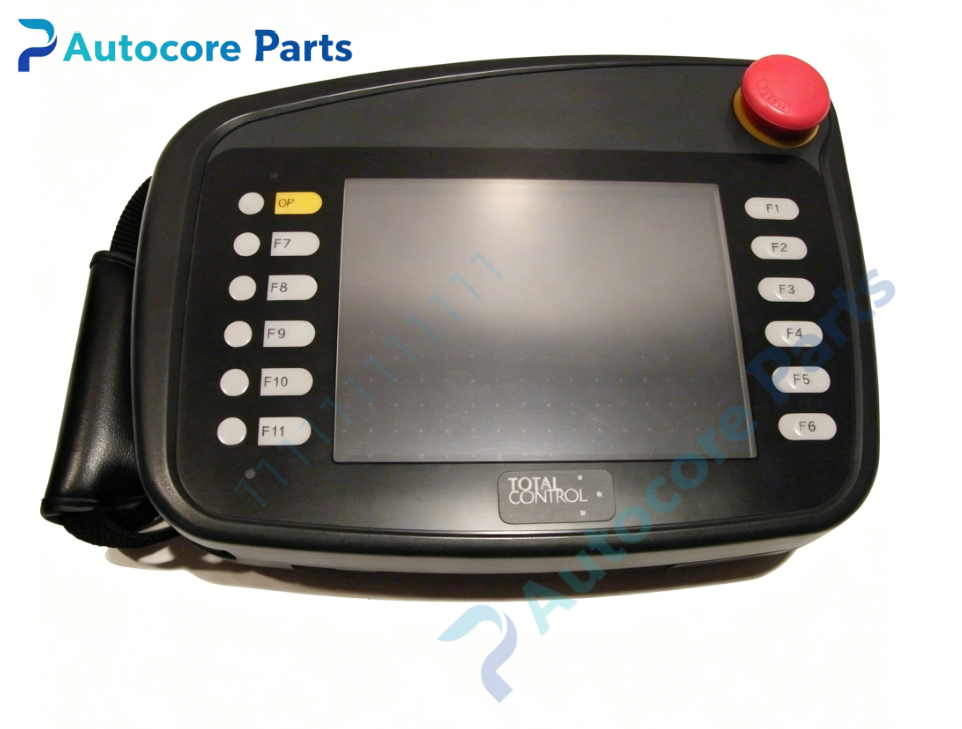

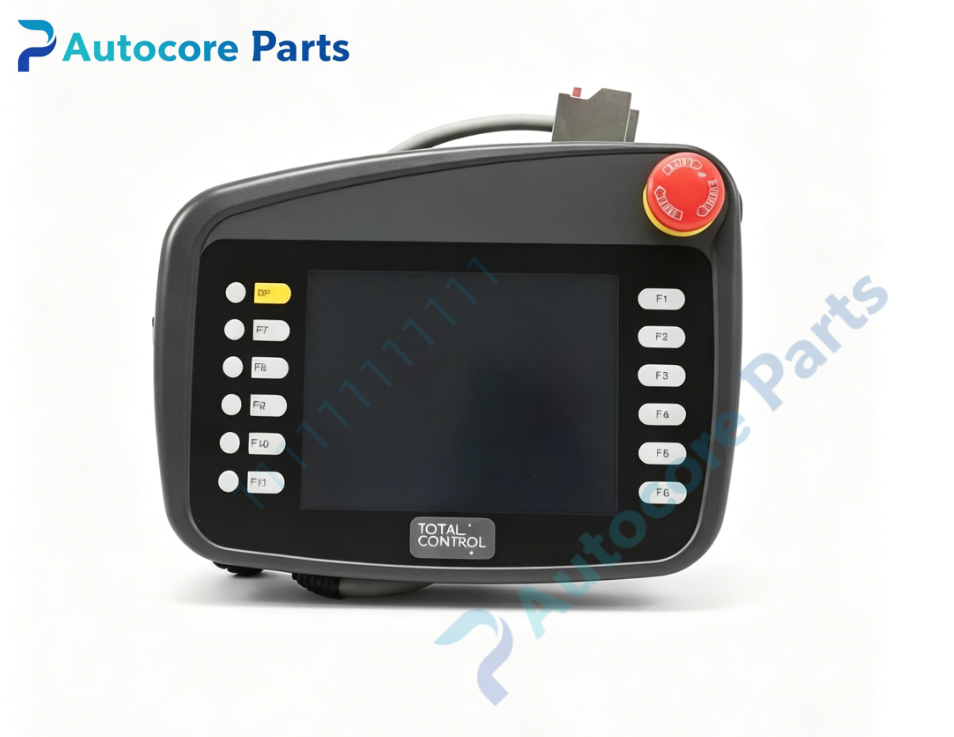

GE Fanuc QPH2D100S2P Handheld HMI Touch Panel

Technical SpecificationsModel：QPH2D100S2P Brand：GE Fanuc Product Type: QuickPanel series handheld portable HMI operator terminal

Module Feature:Display:5.7 inch STN color LCD screen, touchscreen input Physical control:Integrated hard function keys + large red emergency stop pushbutton Power supply:24VDC Enclosure rating:NEMA 4X / 12, IP65 front panel, dustproof and waterproof Communication:TCP Ethernet port, serial interface, support GE Fanuc PLC communication Programming software:QuickDesigner V3.7 Function:Local machine jogging, parameter setting, real-time data monitoring, alarm display, manual/automatic mode switching Built-in flash memory for HMI project storage Handheld ergonomic handle design for field operation LED backlight for low-light workshop environment Built-in hardware self-diagnosis for communication and screen fault detection

Electrical ParametersPower Input:24VDC, power consumption 18W Communication:Ethernet TCP, serial communication

Mechanical & Structure:Mounting:Handheld portable, optional hanging bracket Protection class:IP65 (front face) Weight:1.3kg

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

QPH2D100S2P belongs to GE Fanuc QuickPanel HMI family. Compatible with Series90-30, Series90-70, RX3i PACSystems PLC. Widely used for CNC machinery, packaging, material handling machine local manual operation.

Function

QPH2D100S2P is portable handheld HMI terminal manufactured by GE Fanuc. It connects to PLC to realize on-site local operation of automation equipment. Operators can view real-time production data, alarm messages, modify process parameters and perform manual jog control. Integrated emergency stop button provides safety protection. The IP65 front panel adapts to workshop oil mist and dust environment.

Installation

Follow lockout/tagout safety procedure before installation. Cut off 24VDC power. Mount hanging bracket if needed. Connect 24VDC power cable and communication cable to PLC. Download HMI project via QuickDesigner software. Set PLC communication parameters, power on and test touch screen, hard keys and emergency stop function.

Interface

Ethernet port, serial communication port, 24VDC power terminal, touchscreen + physical keys, emergency stop button for GE Fanuc QPH2D100S2P.

Feature

Original GE Fanuc QPH2D100S2P QuickPanel handheld HMI,5.7" STN color touch display,hard keys + E-stop button,IP65 NEMA4X front panel,24VDC supply,QuickDesigner programming,built-in diagnostic,UL & CE certified. This spare unit is used for industrial machine local manual operation HMI maintenance and hardware replacement.

Diagnostic

Screen no display:Check 24VDC power supply and power cable. Touch unresponsive:Verify touchscreen calibration and hardware damage. Communication loss:Check network/serial wiring and PLC communication configuration.

Product Brief

QPH2D100S2P is GE Fanuc legacy QuickPanel handheld HMI terminal,with built-in emergency stop for on-site manual operation of industrial machinery,discontinued portable operator panel spare.
