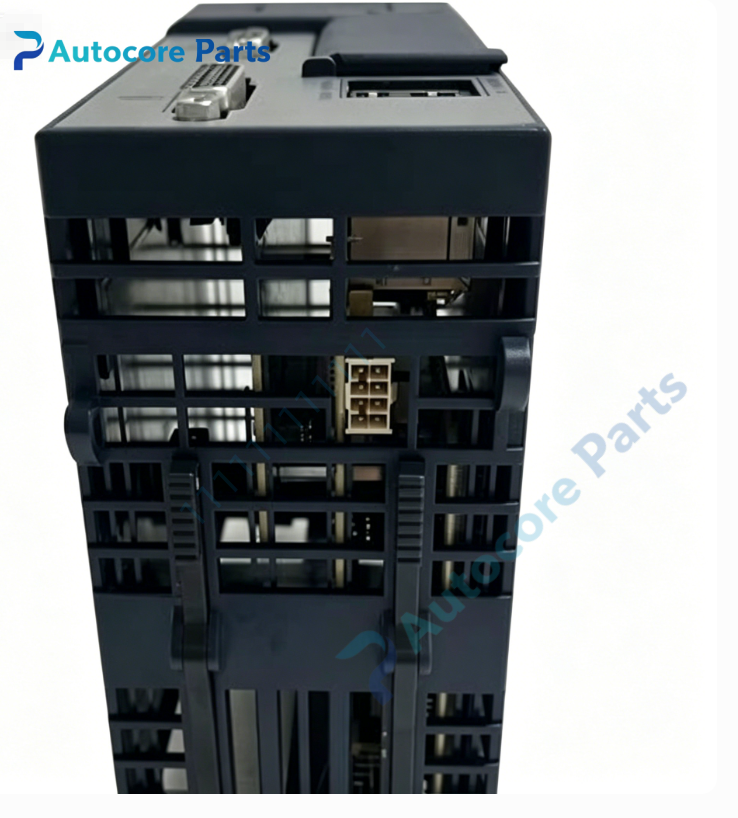

GE IC695CPE310‑ACAT PACSystem RX3i High‑Performance CPU Module

Technical Specifications

Model：IC695CPE310‑ACAT

Brand：GE Fanuc（Emerson Automation）

Product Type：PACSystem RX3i central processing unit module

Processor：1.1GHz Intel Atom processor,support floating‑point arithmetic

Memory：10 MB user RAM,10 MB non‑volatile Flash memory,battery‑less data retention

I/O Capacity：32K bits discrete I/O,32K words analog I/O

Scan Speed：0.072 ms per 1000 Boolean instructions

Ethernet：2×10/100Mbps RJ45 ports,support SRTP,Modbus TCP,EGD protocol

Serial Ports：RS‑232(COM1),RS‑485(COM2),support Modbus RTU,SNP protocol

USB Interface：USB host port for firmware upgrade and data access

Program Block：Max 512 program blocks,128KB per block

Programming Language：Ladder Diagram,Structured Text,Function Block Diagram,C language

Backplane：Dual PCI / serial RX3i universal backplane,flexible slot installation

Power Consumption：+3.3VDC 1.0A,+5VDC 1.0A

Working Temperature：0℃ ~ +60℃，non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Factory automation,power plant control,petrochemical process control,PACSystem RX3i system renovation and spare‑part replacement。

Product Details

IC695CPE310‑ACAT is high‑performance CPU for GE PACSystem RX3i platform,executes user logic,processes field I/O data and completes network communication tasks for automation system。

It adopts 1.1GHz Atom processor with floating‑point computing capability,equipped with 10MB RAM and 10MB Flash. User data can be retained without battery,optional Energy‑Pack module realizes safe data storage during power‑failure accident。

Dual independent 10/100Mbps Ethernet ports support multiple industrial protocols,realize connection with HMI,upper computer and remote I/O stations. RS‑232 and RS‑485 serial interfaces connect legacy field devices;USB port supports local firmware upgrade and file operation。

The module supports IEC‑61131‑3 standard programming languages,max 512 program blocks,meets complex process control requirements. It is compatible with most Series 90‑30 I/O modules,simplifies system upgrade and protects existing hardware investment。

Front‑panel multi‑color LED indicators display running,fault and communication status for quick on‑site diagnosis. It is widely used in manufacturing,power and petrochemical industry,as replacement spare‑part for PACSystem RX3i control racks。
