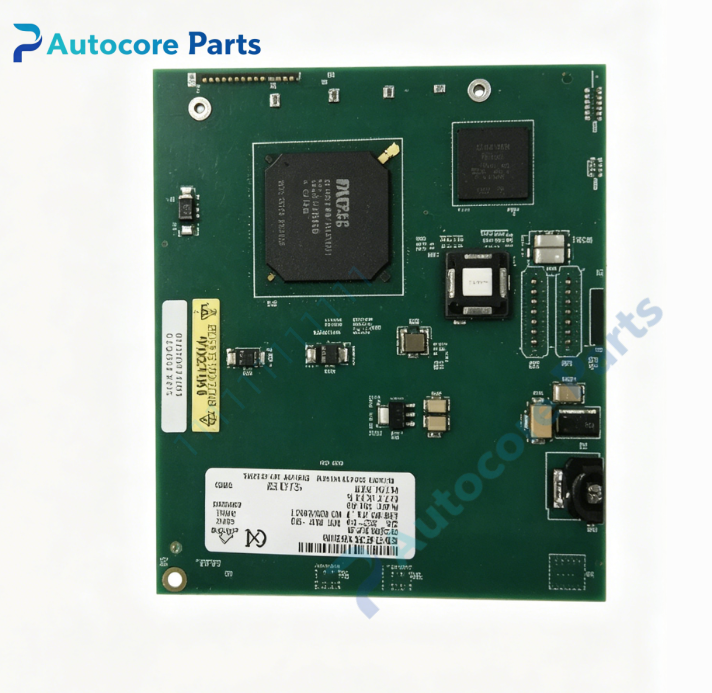

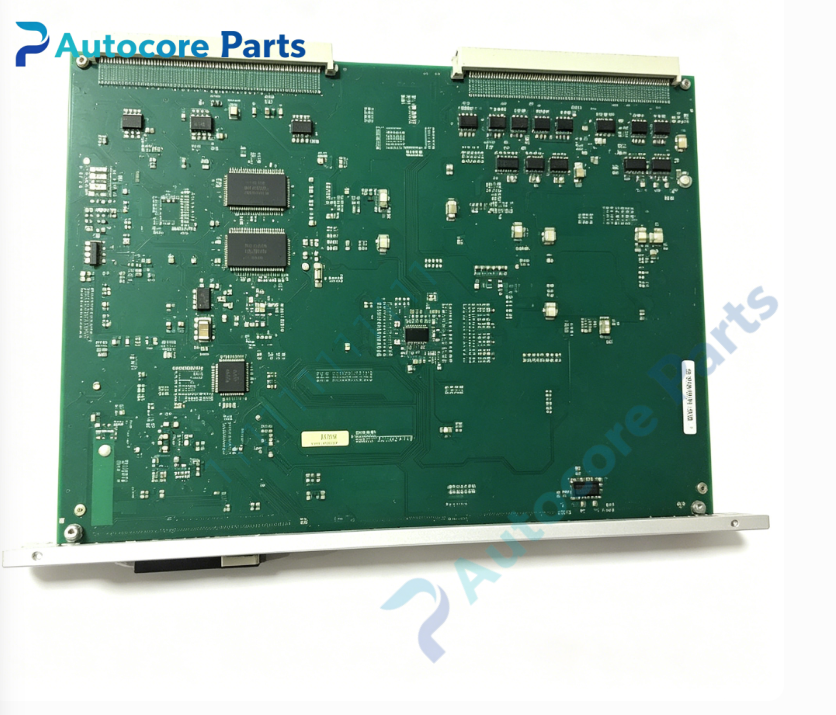

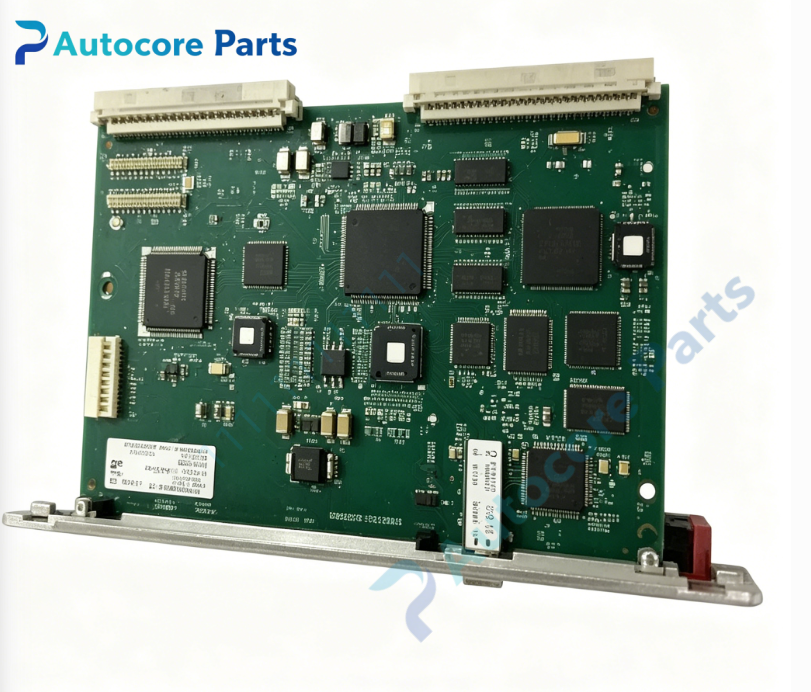

GE IC698CMX016 VMIVME‑5567 Reflective Memory Module

Technical Specifications

Model: IC698CMX016 VMIVME‑5567

Brand: GE Fanuc (Abaco Systems / VMIC)

Product Type: 6U VME Reflective Memory Communication Module

Applicable System: PACSystems RX7i controller, VME / VME64 bus distributed real‑time control system

Reflective Memory: 64MB high‑speed SDRAM shared memory space

Fiber‑Optic Rate: 2.12Gbaud optical ring network

Max Network Nodes: Up to 256 nodes in one optical ring

Interface: Duplex fiber optic interface, VME64 backplane bus interface

Transmission Mode: Hardware‑level automatic memory mirroring, deterministic real‑time data replication

Data Throughput: Up to 170MB/s effective data transfer rate

Indicator: On‑board LED for link status, network fault and module running state

Power Supply: VME rack backplane +5VDC auxiliary power, typical power consumption 10W

Operating Temperature:‑20℃ ~ +55℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet rack‑mount only

Weight:0.73kg

Dimension:233.4mm ×160mm ×20.3mm

Application: Turbine synchronous control, industrial simulation system, multi‑node distributed real‑time control, high‑speed data sharing for legacy VME equipment

Product Function Description

IC698CMX016 VMIVME‑5567 is a dedicated reflective memory communication hardware for GE RX7i and VME bus systems. It builds a real‑time shared memory ring network through optical fiber, realizing hardware‑based memory mirroring among multiple nodes.

When one node writes data to local reflective memory, the hardware automatically synchronizes the data to all other nodes on the optical ring without CPU intervention. This deterministic transmission mode ensures low‑latency synchronous data updating for multi‑controller systems. The module supports daisy‑chain optical ring topology, and can be configured with redundant optical network to improve system reliability. It is widely used in occasions requiring strict real‑time performance such as turbine coordinated control and industrial simulation platform. IC698CMX016 is the GE PACSystems part number, and VMIVME‑5567 is the corresponding VME hardware part number.

Product Details

Standard 6U Eurocard single‑slot structure, directly plug‑in VME cabinet slot. Conformal coated circuit board adapts to harsh industrial environment with dust and electromagnetic interference. This legacy reflective memory module has been discontinued by original manufacturer, mainly used for old‑equipment maintenance and spare‑part replacement. Strict ESD protection shall be adopted during installation. Verify optical fiber parameter and node address configuration before commissioning.
