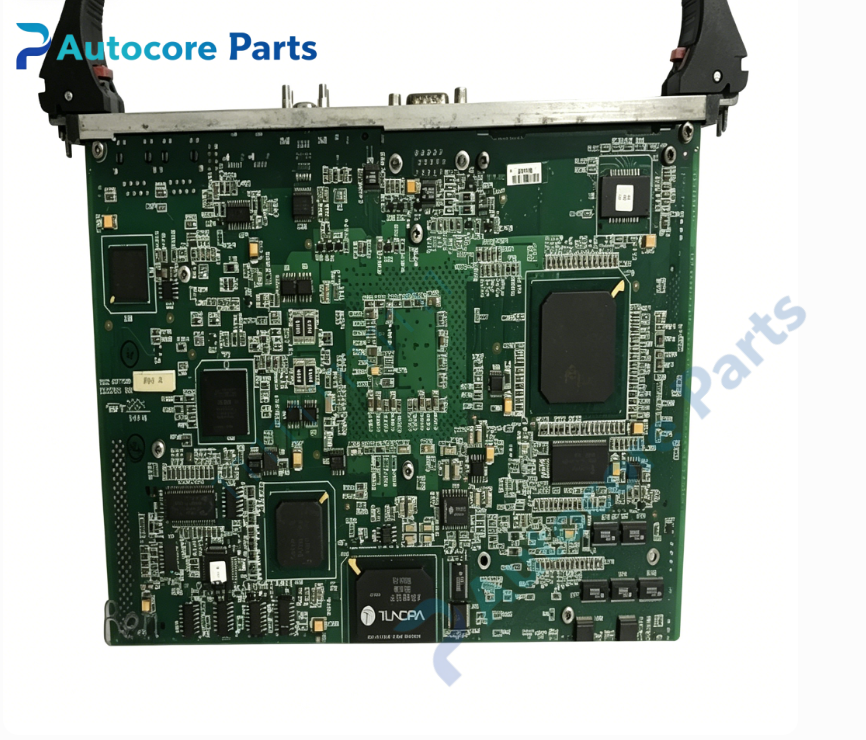

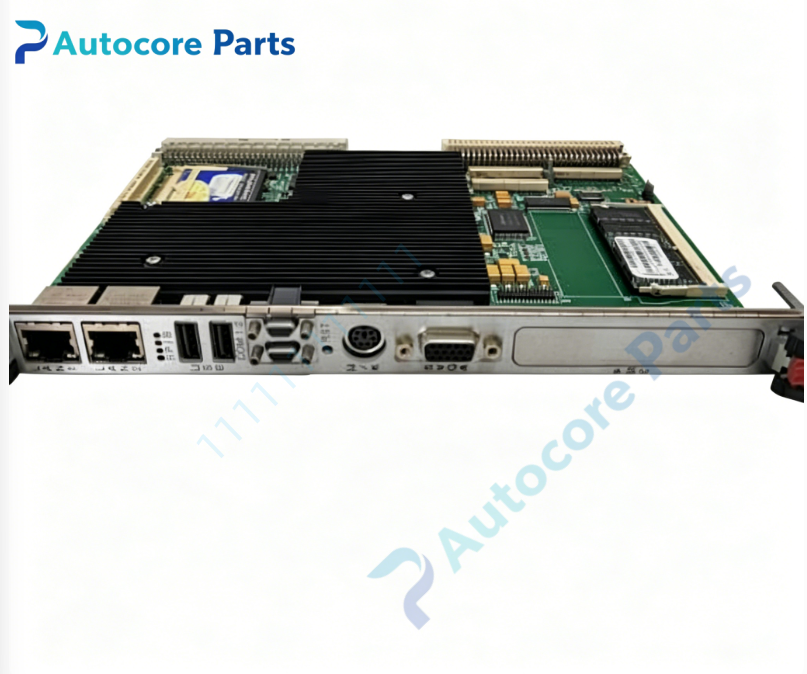

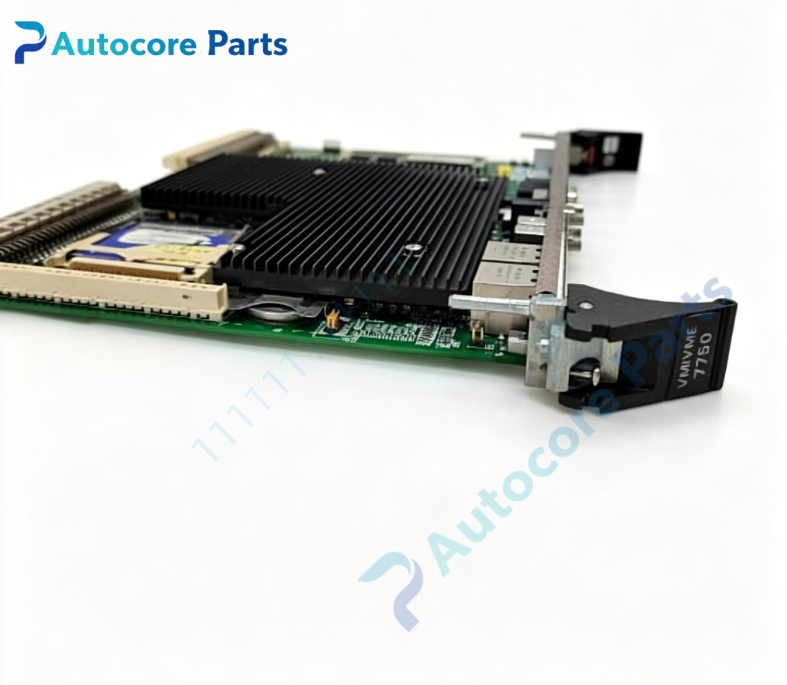

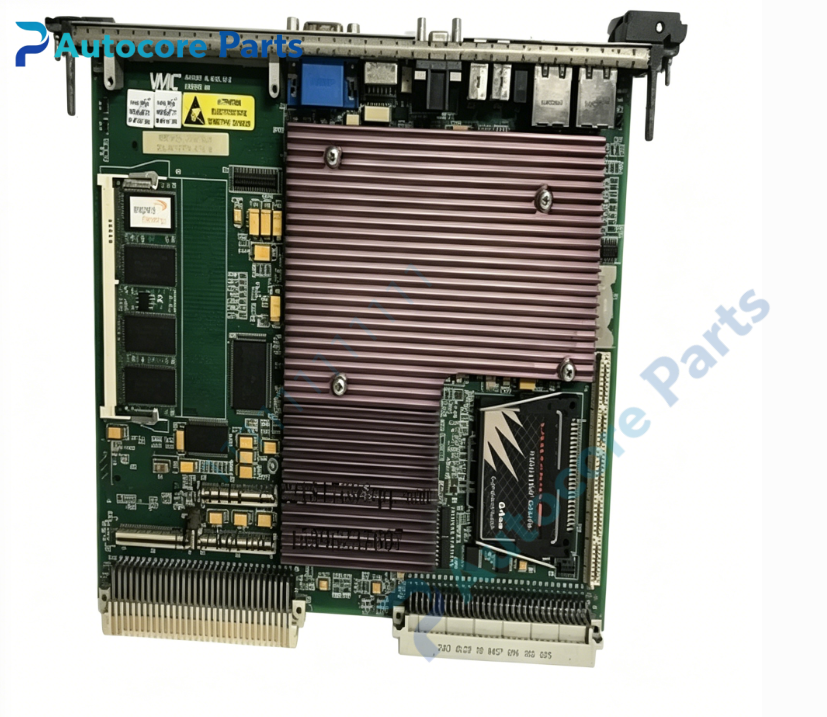

GE VMIVME‑7750 VME Single Board Computer

Technical Specifications

Model: VMIVME‑7750

Brand: GE Fanuc (Abaco Systems / VMIC)

Product Type: 6U VME Single Board Computer

Applicable System: VME / VME64 bus industrial embedded control system

Processor: Intel Pentium‑III 850MHz‑1.26GHz, 512KB on‑chip L2 cache

Chipset: Intel 815E, 133MHz front‑side bus

Memory: Max 512MB PC133 SDRAM SODIMM module

Non‑volatile Memory: Programmable flash BIOS, hardware watchdog timer

Storage: ATA‑100 IDE interface, bootable CompactFlash up to 1GB

VME Bus Bridge: Tundra Universe II PCI‑VME transparent bridge, VME C.1 / VME64 compliant

Expansion Slot: 1× PMC expansion site for custom I/O daughter‑board

Communication Interface: Dual 10/100Mbps Ethernet ports, two RS232 serial ports, dual USB ports, PS/2 keyboard‑mouse interface

Video Interface: Integrated AGP SVGA graphics, max resolution 1600×1200

Indicator: On‑board LED for power, network and watchdog status

Power Supply: VME rack backplane auxiliary power

Operating Temperature:0℃ ~ +55℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet rack‑mount installation only

Weight:0.70kg

Dimension:233.4mm ×160mm ×20.3mm

Application: Legacy VME system renovation, industrial data acquisition, test‑measurement platform, simulation and industrial control equipment

Product Function Description

VMIVME‑7750 is a single‑slot passively cooled 6U VME single‑board computer built on Intel Pentium‑III platform, designed for high‑reliability embedded industrial applications. It can serve as main system controller or secondary peripheral CPU inside multi‑processor VME rack.

The PCI‑VME transparent bridge supports A24/A32 addressing and high‑speed block data transmission between local processor and other VME bus modules. PMC expansion slot allows users to install various custom I/O sub‑boards to expand hardware functions. Rich front‑panel peripheral interfaces include dual Ethernet, serial ports, USB, PS/2 and SVGA video output, supporting mainstream embedded operating systems such as VxWorks, QNX, Linux and Windows embedded series. Built‑in programmable hardware watchdog improves system fault tolerance for long‑term field operation.

Product Details

Standard 6U Eurocard structure, directly plug‑in VME cabinet slot, passive heat dissipation without fan. Conformal coated circuit board adapts to dusty and humid industrial environment. This legacy SBC has been end‑of‑life by original manufacturer, mainly used for old‑equipment overhaul and spare‑part replacement. Strict electrostatic protection shall be adopted during installation, verify BIOS firmware and PMC module compatibility before commissioning.
