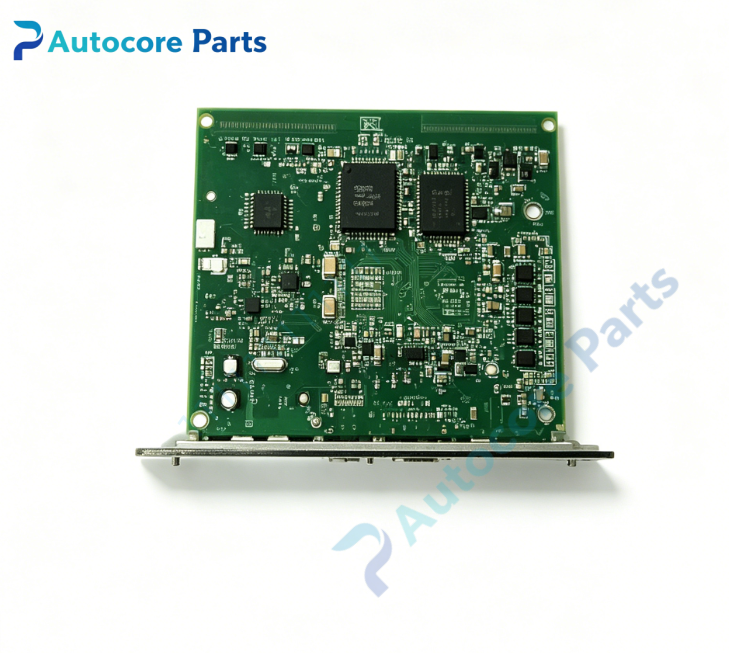

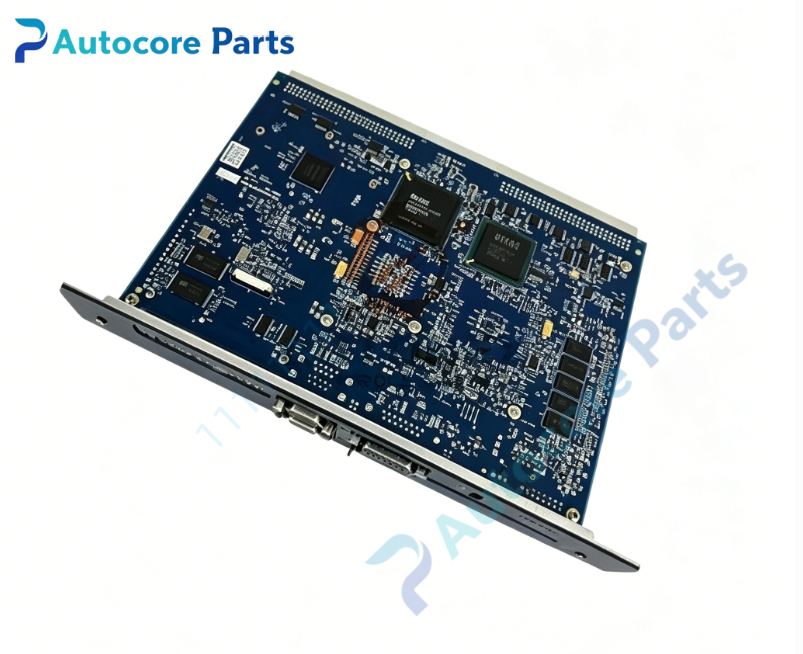

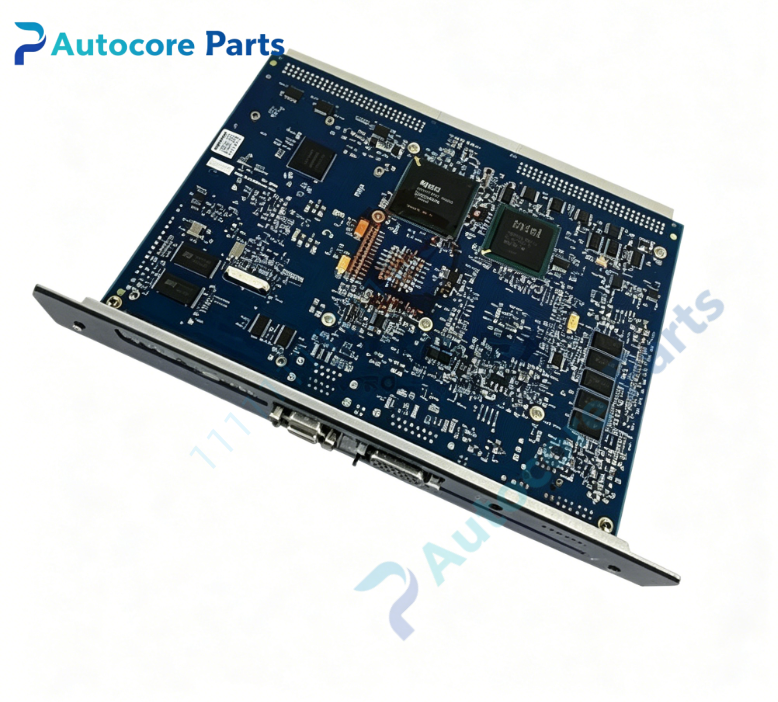

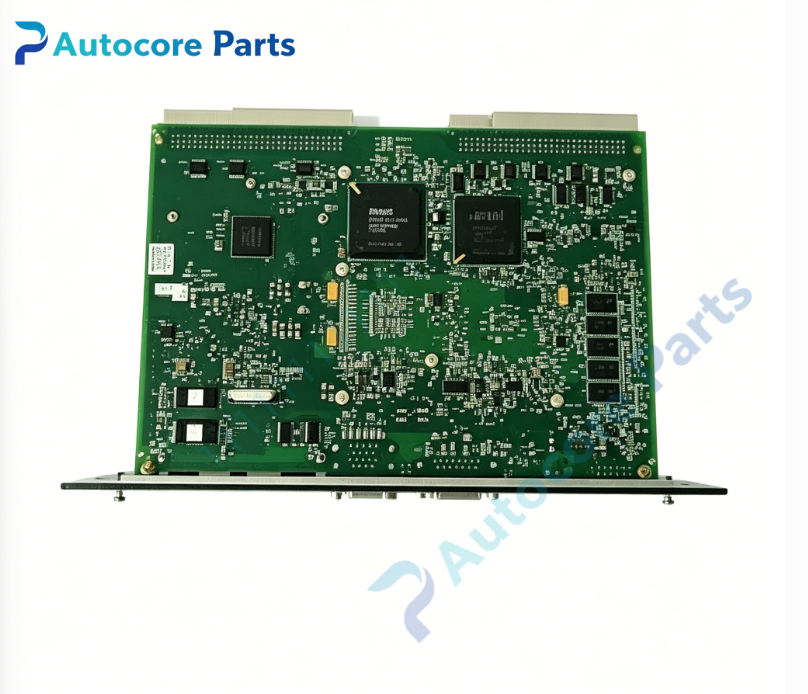

GE IC698CPE030 PACSystems RX7i CPU Processor Module

Technical Specifications

Model: IC698CPE030

Brand: GE Fanuc（Emerson Automation）

Product Type: PACSystems RX7i VME64 central processing unit

Processor: 600MHz Pentium‑M microprocessor

User Memory: 64MB battery‑backed RAM

Flash Memory: 64MB non‑volatile flash memory

I/O Capacity: Up to 32K bits discrete I/O, up to 32K words analog I/O

Communication Ports: 2×Ethernet 10/100Mbps, 1×RS232, 1×RS485, station manager port

Supported Ethernet Protocols: SRTP, Modbus TCP Server/Client, Ethernet Global Data(EGD)

Supported Serial Protocols: Modbus RTU Slave, SNP, Serial I/O

Built‑in Function: Web server & FTP, maximum 16 concurrent connections

Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C language

Max Program Blocks: 512 blocks, single block up to 128KB

Backplane Bus: VME64 standard, single‑slot plug‑in installation

Power Requirement: +5VDC 3.2A nominal, +12VDC 0.003A,‑12VDC 0.003A

Real‑time Clock: Battery‑backed calendar clock

Configuration Tool: Proficy Machine Edition 4.0 or higher version

Operating Temperature:0℃ ~ +50℃，non‑condensing；0‑60℃ with fan tray

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:0.82kg

Dimension:160mm ×233mm ×32mm

Application: Power plant control, petrochemical process control, heavy‑industry automation, legacy PACSystems RX7i system maintenance and spare‑part replacement.

Product Details

IC698CPE030 is a high‑performance VME64‑form‑factor CPU processor for GE PACSystems RX7i platform, adopting industrial‑grade Pentium‑M 600MHz microprocessor for heavy‑duty real‑time industrial control tasks.

This CPU module is equipped with 64MB battery‑backed RAM and 64MB non‑volatile flash memory. User programs, system configurations, register data and symbolic variables can be stored reliably. Memory allocation for program and data can be configured flexibly according to project requirements.

Rich communication interfaces are integrated on the front panel. Dual Ethernet ports support Modbus TCP, EGD and SRTP protocols for connecting HMI, SCADA and field controllers. RS232 and RS485 serial ports support Modbus RTU and SNP for serial‑device access. Built‑in web server and FTP function allow up to 16 connections for remote monitoring and firmware upgrade.

It supports multiple standard IEC programming languages and up to 512 program blocks. It is compatible with Series 90‑70 I/O modules and most third‑party VME64 modules. Test‑edit mode supports online program modification without stopping the running process, which brings great convenience for site debugging and maintenance.

The module provides complete self‑diagnosis after power‑on. LED indicators show working status, fault alarm and link condition. It is widely deployed in power, petrochemical and heavy‑industry sites for upgrading and spare‑part replacement of legacy RX7i PAC automation systems.
