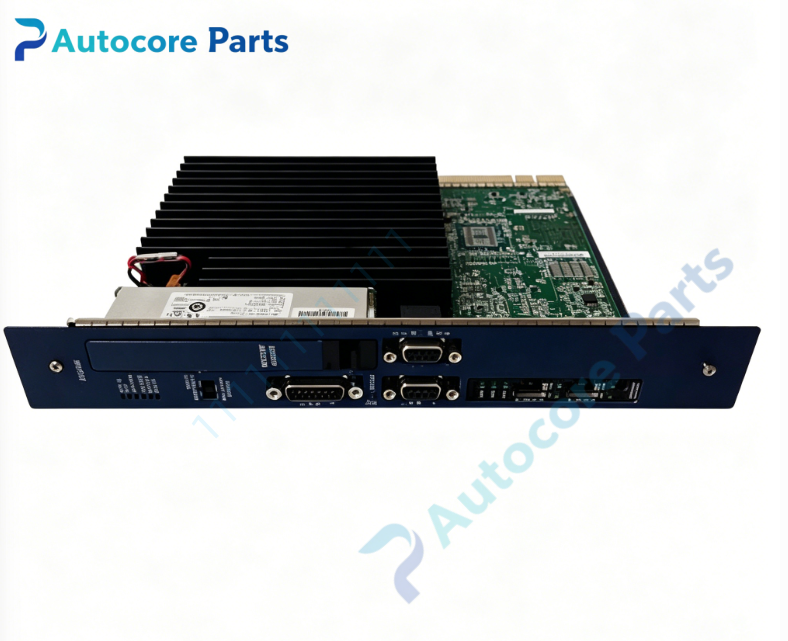

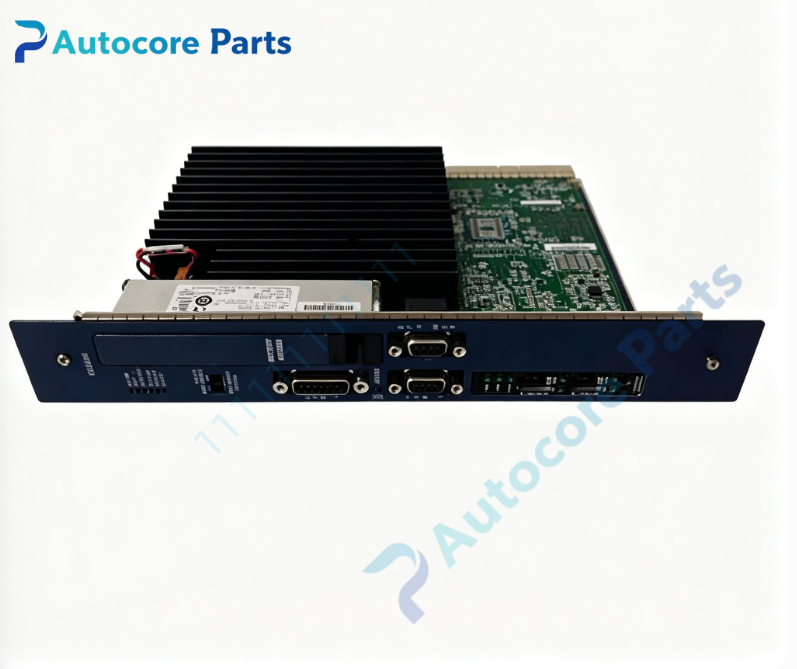

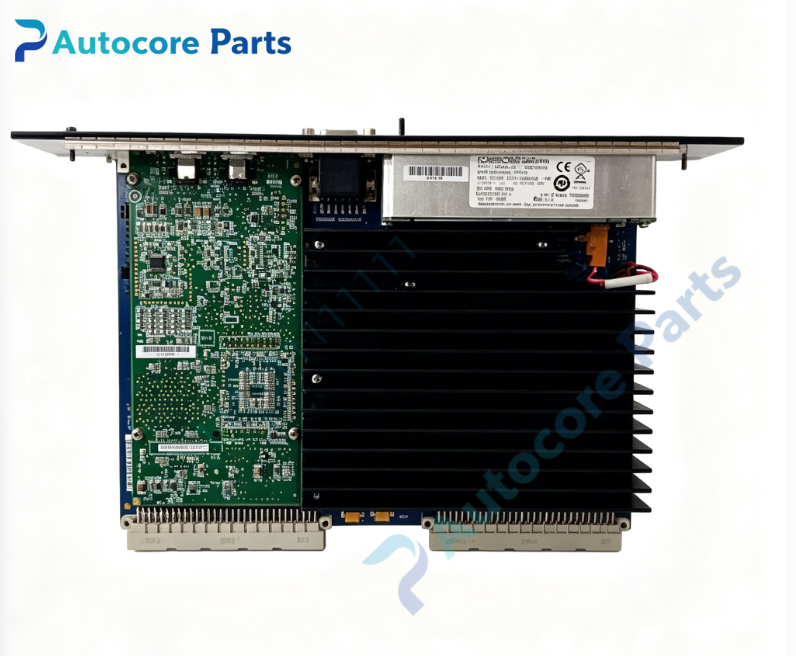

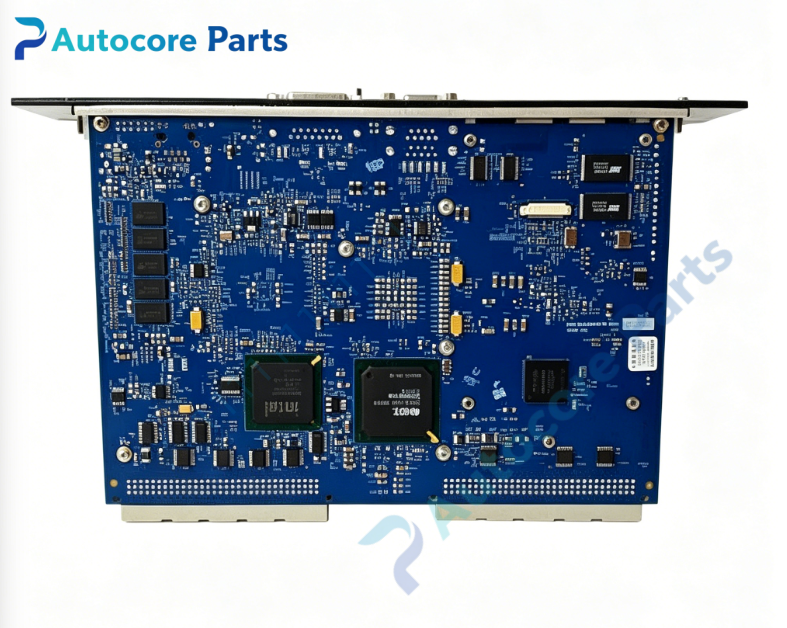

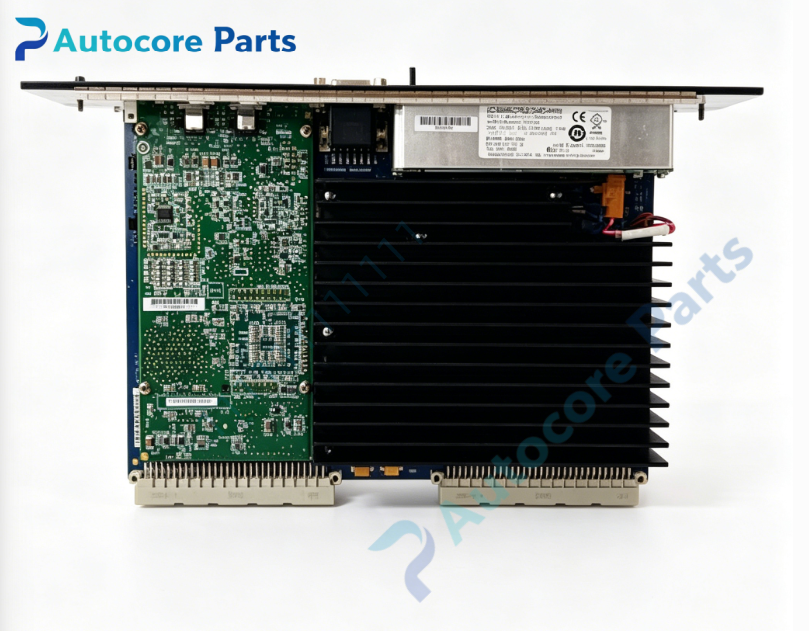

GE IC698CRE040 Redundant CPU Processor Module

Technical Specifications

Model: IC698CRE040

Brand: GE Fanuc（Emerson Automation）

Product Type: Hot‑standby redundant CPU processor module for PACSystem RX7i

Applicable System: GE PACSystem RX7i VME rack system，compatible with IC698CHS series VME racks, supports Series 90‑70 I/O and standard VME modules

Processor: 1.8GHz Pentium‑M industrial processor, floating‑point arithmetic supported

User Memory: 64MB battery‑backed RAM, 64MB non‑volatile flash memory for program, configuration and data storage

Scan Performance: 0.024ms per 1000 boolean contacts/coils, high‑speed real‑time control capability

Ethernet Port: Dual independent 10/100Mbps RJ45 Ethernet ports, auto‑negotiation, supports SRTP, Modbus‑TCP, EGD protocol, redundant IP function available

Serial Interface: RS232, RS485 and station manager port；supports Modbus RTU, SNP protocol, for programming, debugging and firmware upgrade

Web Server: Max 16 combined web server and FTP concurrent connections, supports remote web monitoring

Redundancy Function: Built‑in hot‑standby(HSB) redundancy function；needs IC698RMX016 memory‑exchange module for redundancy link, bumpless switchover between primary‑standby CPU

Programming Language: Ladder Diagram, Structured Text, Function Block Diagram, C language support, up to 512 program blocks

On‑board Clock: Battery‑backed calendar real‑time clock

Power Requirement: +5VDC 6.8A nominal, +12VDC /‑12VDC small auxiliary current, powered by RX7i VME backplane

Installation Mode: VME standard slot plug‑in installation, occupies slot‑1 of RX7i rack

Operating Temperature:0℃ ~ +60℃，non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Certification: UL, CE, CSA safety certification

Weight:0.78kg

Dimension:160mm ×220mm ×34mm

Application: Power‑plant critical auxiliary control, petrochemical process control, large‑scale production‑line high‑reliability control, legacy RX7i redundant system maintenance and spare‑part replacement.

Product Function Description

IC698CRE040 is the high‑performance hot‑standby redundant CPU processor of GE Fanuc PACSystem RX7i VME‑based PAC platform。

This module adopts 1.8GHz Pentium‑M industrial processor, equipped with 64MB RAM and 64MB flash memory, provides powerful real‑time logic operation, floating‑point calculation and data storage capacity. It supports multiple IEC‑61131‑3 programming languages, can execute complex continuous‑process control logic for large industrial sites。

As a redundancy‑enabled CPU, it can build hot‑standby redundant control system by pairing with another IC698CRE040 and IC698RMX016 memory‑exchange module. The standby CPU keeps synchronizing user program, variables and running status from primary CPU, realizes bumpless switchover when main CPU fails, greatly improves system reliability for critical production processes。

Dual independent Ethernet ports can realize network redundancy configuration, supports EGD real‑time data exchange, Modbus‑TCP client/server communication. Serial ports are used for local programming, debugging and firmware upgrade. Built‑in web‑server function allows remote status browsing and simple diagnosis via browser。

This CPU is backward compatible with Series 90‑70 I/O modules and standard VME third‑party modules, convenient for upgrade and reconstruction of old GE automation sites. All configuration and programming work is completed via Proficy Machine Edition software.

Product Details

Standard VME form‑factor plug‑in CPU module, industrial‑grade anti‑interference hardware design, suitable for complex electromagnetic‑interference environment of factory and power‑plant sites. This legacy RX7i redundant CPU has been discontinued by original manufacturer, mainly used for old‑equipment overhaul and spare‑part replacement. Please pay attention to firmware version consistency of primary‑standby CPU and matching redundancy‑link module before commissioning. Strict ESD protection shall be adopted during installation.
