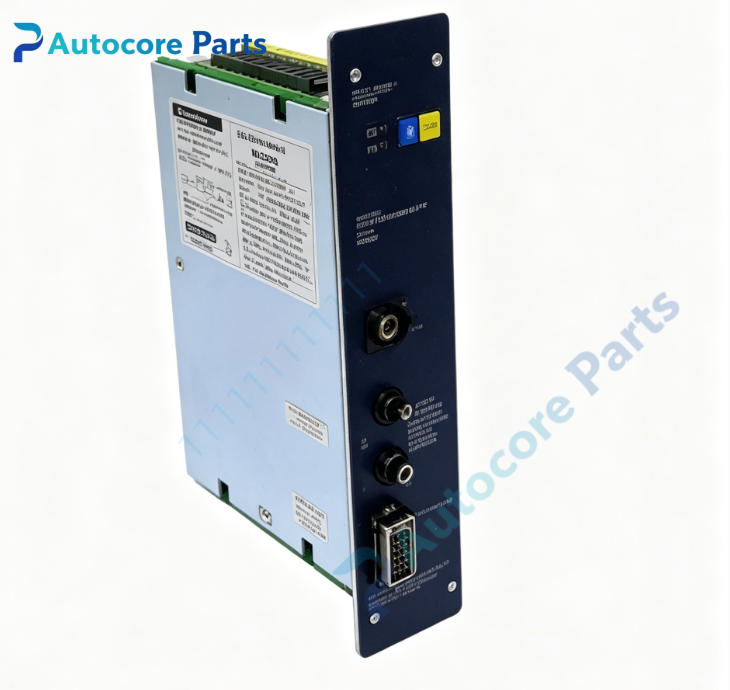

GE IC698PSA100D PACSystem RX7i 100W Rack‑Mount Power Supply Module

Technical Specifications

Model：IC698PSA100D

Brand：GE Fanuc（Emerson Automation）

Product Type：PACSystem RX7i rack‑mount power supply module

Installation Slot：Only for slot 0 of RX7i main chassis

Input Voltage：85‑264VAC 47‑63Hz,100‑150VDC

Max Input Power：125W typical,150W maximum

Total Output Power：100W maximum

Output Channel：+5VDC(0‑20A),+12VDC(0‑2A),‑12VDC(0‑1A)

Cooling Mode：Natural convection cooling, no forced fan required

Protection：Over‑current,over‑voltage,short‑circuit and over‑temperature protection

Feature：Power factor correction,AC‑FAIL warning signal,front‑panel LED status indicator

Working Temperature：0℃ ~ +60℃，non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Power plant automation,petrochemical process control,PACSystem RX7i control system maintenance and spare‑part replacement.

Product Details

IC698PSA100D is compact rack‑mount power supply module for GE PACSystem RX7i PLC platform, it provides stable multi‑rail DC power for all backplane modules.

This power unit must be installed in slot 0 of RX7i main chassis. It supports wide‑range AC and DC dual‑input, adapting to complex power supply conditions of industrial sites. The total rated output power is 100W, which can supply CPU, communication boards and medium‑scale I/O configurations.

It adopts natural convection cooling design, no fan tray is needed within full working temperature range, reducing fan‑related failure risks. Front‑panel LED indicators display power status and fault alarm information for convenient on‑site troubleshooting.

Built‑in complete protection functions including over‑current, over‑voltage, short‑circuit and over‑temperature protection. When power abnormality occurs, it quickly cuts off output to protect other modules on the backplane. It sends AC‑FAIL warning signal to controller for power‑loss early warning.

This power supply is widely used in thermal power, petrochemical and other industrial automation projects. It is used as replacement spare‑part for medium‑load PACSystem RX7i control racks.
