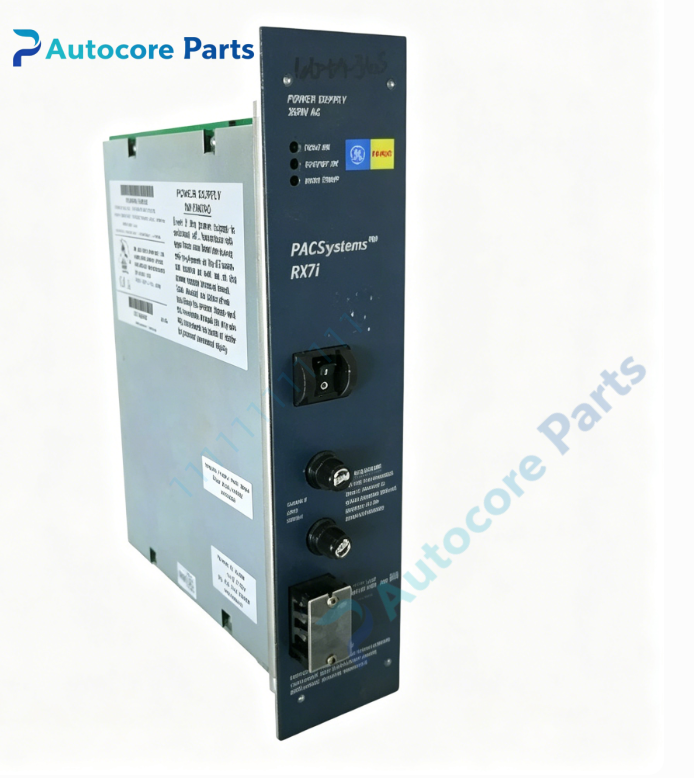

GE IC698PSA350D PACSystem RX7i High‑Capacity Power Supply Module

Technical Specifications

Model：IC698PSA350D

Brand：GE Fanuc（Emerson Automation）

Product Type：PACSystem RX7i high‑capacity rack power supply module

Installation Slot：Only for slot 0 of RX7i chassis

Input Voltage：85‑264VAC 47‑63Hz,100‑150VDC

Max Input Power：440W typical,500W maximum

Total Output Power：350W maximum

Output Channel：+5VDC(0‑60A),+12VDC(0‑12A),‑12VDC(0‑4A)

Natural Cooling Output：100W @0‑60℃ without forced air cooling

Protection：Over‑current,over‑voltage,short‑circuit and over‑temperature protection

Feature：Power factor correction,backplane logic sequencing signal output

Working Temperature：0℃ ~ +60℃，non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Power plant automation,petrochemical process control,PACSystem RX7i control system maintenance and spare‑part replacement.

Product Details

IC698PSA350D is a high‑performance rack‑mount power supply module for GE PACSystem RX7i PLC platform, it supplies stable multi‑voltage power for all modules on RX7i backplane.

This power module must be installed in slot 0 of RX7i chassis, it accepts wide‑range AC and DC dual‑mode input to adapt to complex industrial power supply conditions. It delivers 350W total output power, provides +5VDC, +12VDC and ‑12VDC three groups of DC outputs to satisfy power consumption of CPU, communication and I/O boards.

The module integrates complete fault protection mechanism, including over‑current, over‑voltage, electronic short‑circuit and over‑temperature protection. When abnormal power condition occurs, it will cut off output rapidly to prevent damage to other backplane modules. It can send logic level sequencing signal to coordinate power‑on and power‑off timing of each unit inside the rack.

Without forced fan cooling, the allowable output power is 100W under full temperature range. When equipped with fan tray, it can reach full‑load 350W output for large‑scale heavy‑load RX7i configuration.

It is widely used in thermal power, petrochemical and heavy‑industry automation projects. It serves as replacement spare part for old PACSystem RX7i control systems.
