GE IC698PSA100E PACSystem RX7i 100W Rack‑Mount Power Supply Module

Technical Specifications

Model：IC698PSA100E

Brand：GE Fanuc（Emerson Automation）

Product Type：PACSystem RX7i rack‑mount power supply module

Installation Slot：Only for slot 0 of RX7i main chassis

Input Voltage：85‑264VAC 47‑63Hz,100‑150VDC

Max Input Power：125W typical,150W maximum

Total Output Power：100W maximum

Output Channel：+5VDC(0‑20A),+12VDC(0‑2A),‑12VDC(0‑1A)

Cooling Mode：Natural convection cooling, no forced fan required

Protection：Over‑current,over‑voltage,short‑circuit and over‑temperature protection

Feature：Active power factor correction,AC‑FAIL warning signal,front‑panel LED status indicator,logic‑level power switch

Working Temperature：0℃ ~ +60℃，non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Power plant automation,petrochemical process control,PACSystem RX7i control system maintenance and spare‑part replacement.

Product Details

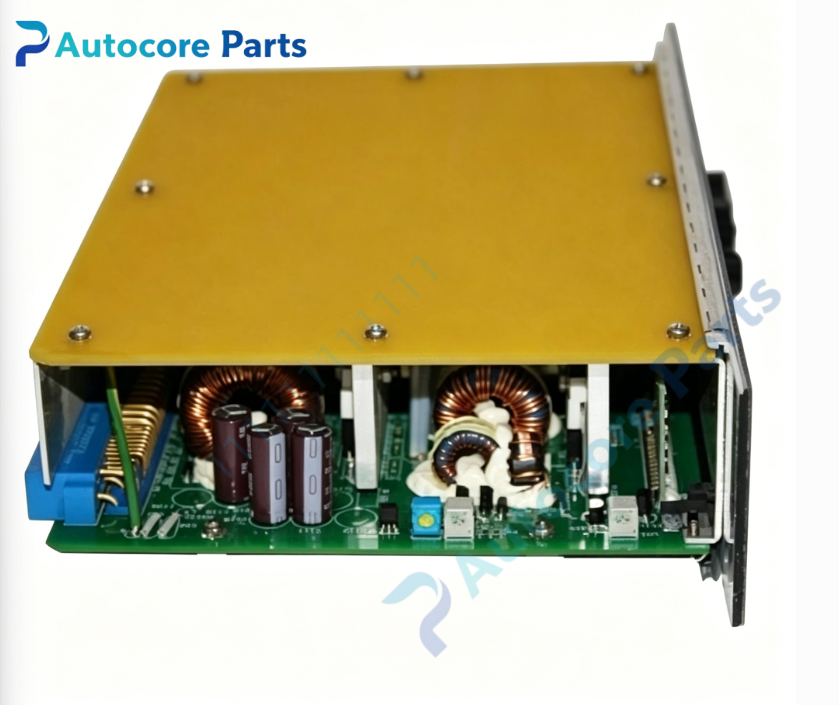

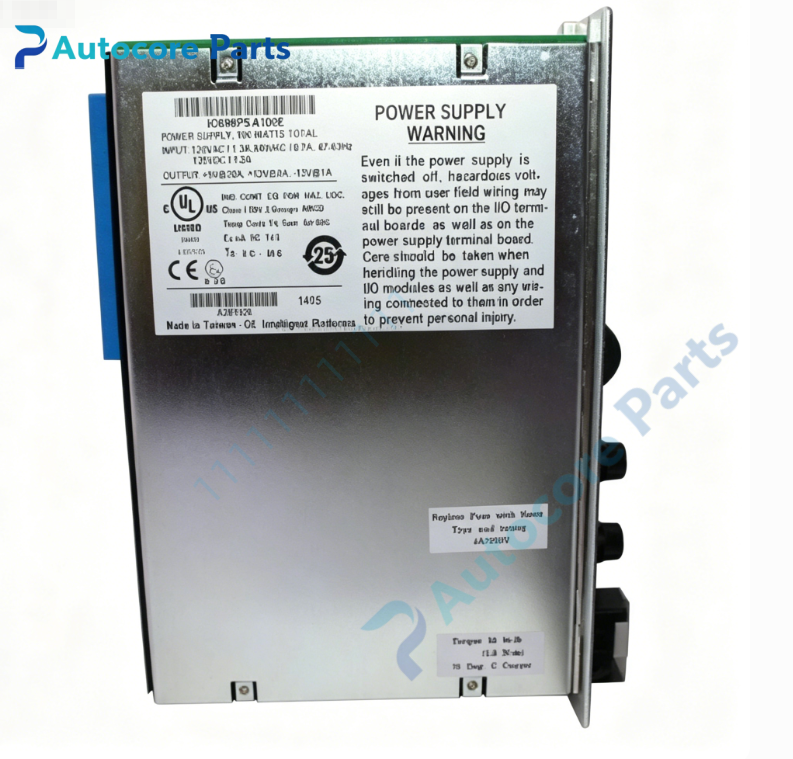

 IC698PSA100E is a compact rack‑insert power supply for GE PACSystem RX7i PLC platform, it supplies stable multi‑rail DC power for all back‑plane inserted modules.

This power unit must be installed in slot 0, the leftmost slot of RX7i main chassis. It supports universal AC and DC dual‑range input, adapting to unstable power supply conditions in industrial field. The rated total output power reaches 100W, meeting power consumption of CPU, communication boards and medium‑size I/O groups.

It adopts natural convection cooling design, and can run at full power within whole operating temperature range without fan tray, eliminating fan failure risk. Front‑panel LED indicators directly display power running status and fault alarm information for quick site diagnosis.

Built‑in comprehensive electronic protection functions including over‑current, over‑voltage, short‑circuit and over‑temperature protection. When power abnormality occurs, it will cut off output rapidly to protect other modules on the backplane. It sends AC‑FAIL warning signal to CPU for advance power‑loss warning. The front‑panel logic‑level switch will not cut off main AC input directly.

This power supply is widely used in thermal power, petrochemical and heavy‑industry automation projects. It serves as replacement spare‑part for medium‑load PACSystem RX7i control racks.
