GE IS200SAMBH1ABA Acoustic Monitoring Terminal Board

Technical Specifications

Model: IS200SAMBH1ABA

Part Number: IS200SAMBH1ABA，MRP681847

Brand: GE（GE Vernova）

Product Type: Acoustic monitoring terminal board

Matching System: GE Speedtronic Mark VI turbine control system

Power Supply: 24VDC

Signal Channel:18‑channel two‑wire input,18‑channel buffered output

Filter: Built‑in passive EMI noise suppression filter

Terminal: 36‑pin input terminal block,36‑pin output terminal block

Installation: Mark VI control cabinet rack plug‑in installation

Operating Temperature:‑35℃ ~ +65℃, non‑condensing

Protection Class:IP20

Weight:0.42kg

Dimension:242mm ×166mm ×32mm

Compatible System: Power plant gas‑steam turbine control cabinet

Core Function: Dedicated acoustic monitoring terminal board for Mark VI turbine control system. It receives acoustic and vibration sensor two‑wire signals, completes signal termination, filtering and buffering output. Transmits conditioned signals to rear‑stage processing board for turbine casing acoustic monitoring and early fault detection. Supports TMR triple‑modular redundant system architecture, built‑in EMI filter to restrain high‑frequency interference and guarantee signal acquisition stability.

Product Details

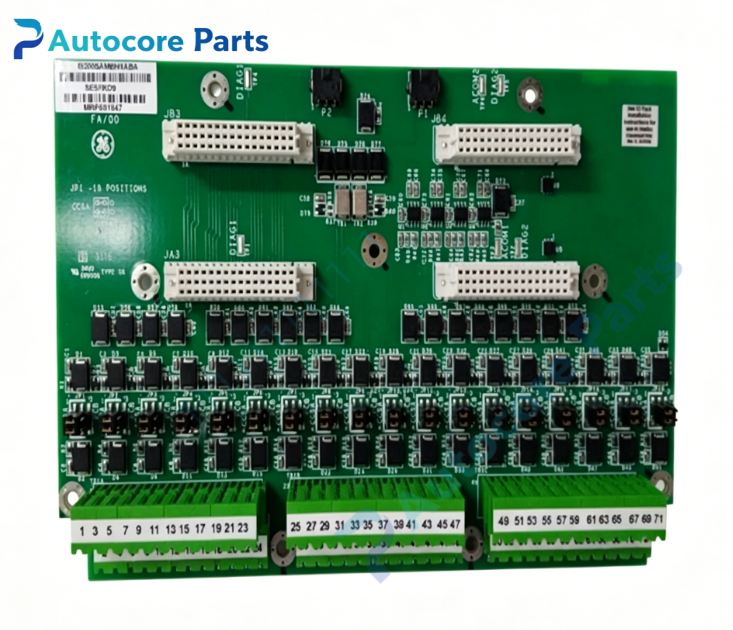

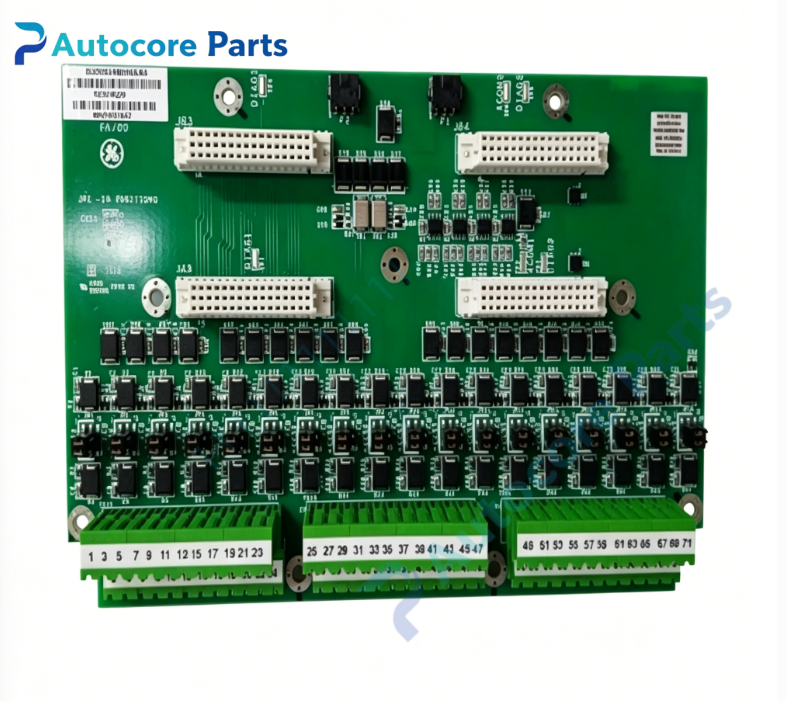

The IS200SAMBH1ABA (MRP681847) is acoustic monitoring terminal board for GE Mark VI Speedtronic turbine control system.

This board is installed inside Mark VI turbine control rack, equipped with high‑density terminal blocks for field acoustic and vibration sensor wiring. It provides 18 two‑wire signal input channels and 18 buffered output channels, transfers sensor acoustic‑vibration signals to subsequent signal processing boards. Built‑in passive EMI filter suppresses external high‑frequency noise interference, effectively improves anti‑interference capability of acoustic measuring loop. It is used for turbine casing acoustic monitoring, realizing early warning of component wear, looseness and abnormal impact faults.

Conformal coated circuit board enhances anti‑vibration and anti‑interference performance, adapts to harsh electromagnetic environment of power‑plant turbine hall. It supports TMR triple‑modular redundant configuration for turbine safety control system.

It belongs to key signal terminal spare‑part for Mark VI turbine control system, widely used in overhaul and renovation projects of gas‑steam turbine generating units.

It is important spare hardware for turbine acoustic‑vibration measuring loop debugging and defective IS200SAMBH1ABA board replacement.
