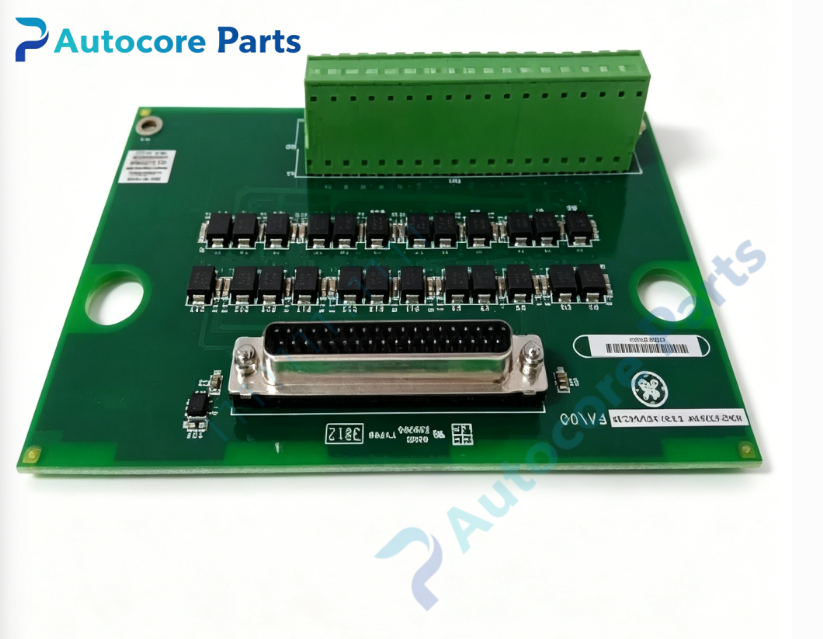

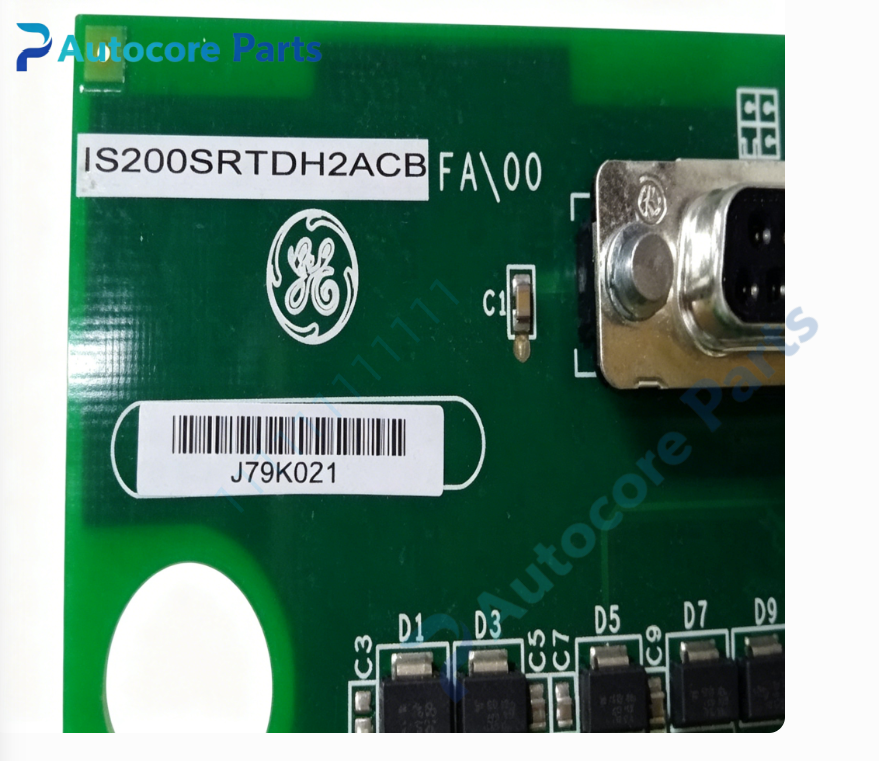

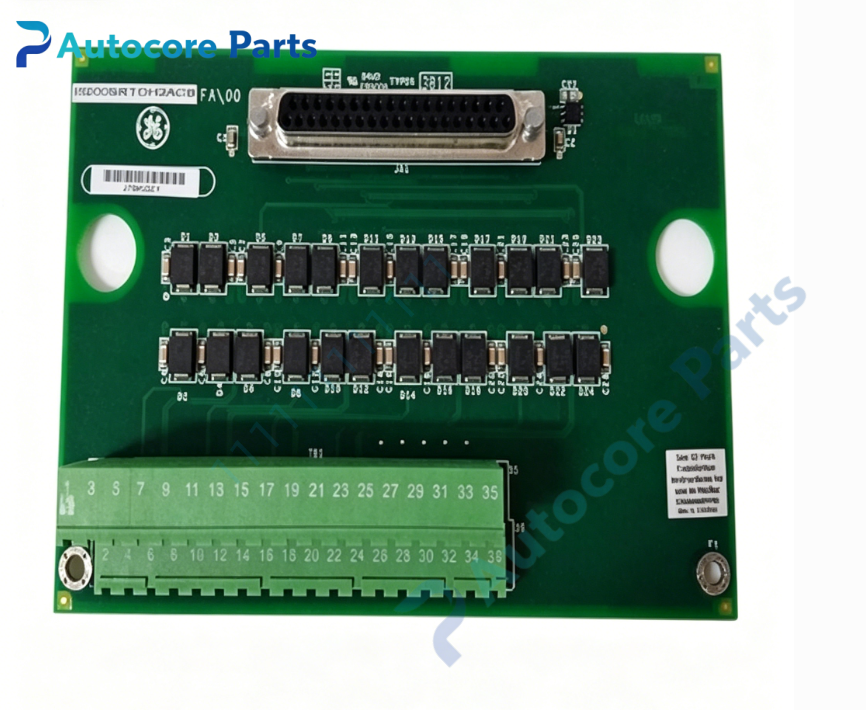

GE IS200SRTDH2ACB RTD Input Terminal Board

Technical Specifications

Model: IS200SRTDH2ACB

Part Number: IS200SRTDH2ACB

Brand: GE（GE Vernova）

Product Type: RTD temperature measuring terminal board

Matching System: GE Mark VI Speedtronic turbine control system

Power Supply: 24VDC ±10%, typical 0.3A

Input Channels:8 independent RTD input channels

Supported Sensors:Pt100, Pt1000, Ni100, Cu100

Wiring Mode: 2‑wire, 3‑wire,4‑wire configurable

Isolation: Channel‑to‑ground galvanic isolation

Installation: Turbine control cabinet internal rack mounting

Operating Temperature:‑40℃ ~ +85℃, non‑condensing

Protection Class:IP20

Weight:0.45kg

Dimension:178mm ×159mm ×45mm

Compatible System: Gas‑steam turbine control cabinet of power plant

Core Function: Special RTD signal terminal board for Mark VI turbine control system. It receives resistance temperature signals from bearing, casing and other RTD sensors, completes signal routing and conditioning, transmits temperature signals to upper‑level I/O processing board, realizes real‑time temperature monitoring, thermal protection and over‑temperature alarm for turbine equipment.

Product Details

The IS200SRTDH2ACB is RTD input terminal board for GE Mark VI Speedtronic turbine control system.

This board is installed inside turbine control cabinet, connected with field RTD temperature sensors through terminal blocks. It supports multiple wiring modes such as 2‑wire,3‑wire and 4‑wire, and can collect temperature signals of turbine bearing, casing, inlet and exhaust parts. It transfers resistance signals to the rear‑stage I/O processing board for conversion and calculation, providing accurate temperature process data for turbine thermal monitoring, protection and control logic.

It supports open‑circuit and short‑circuit diagnosis of each channel, and can upload fault alarm information to the turbine controller. The board adopts conformal coating process, which has good anti‑interference performance and adapts to harsh electromagnetic environment of power‑plant turbine site.

It belongs to key spare‑part for maintenance of old‑generation Mark VI turbine control system, widely used in overhaul and renovation projects of gas‑steam generating units.

It is important spare hardware for temperature signal acquisition loop debugging and defective IS200SRTDH2ACB board replacement.
