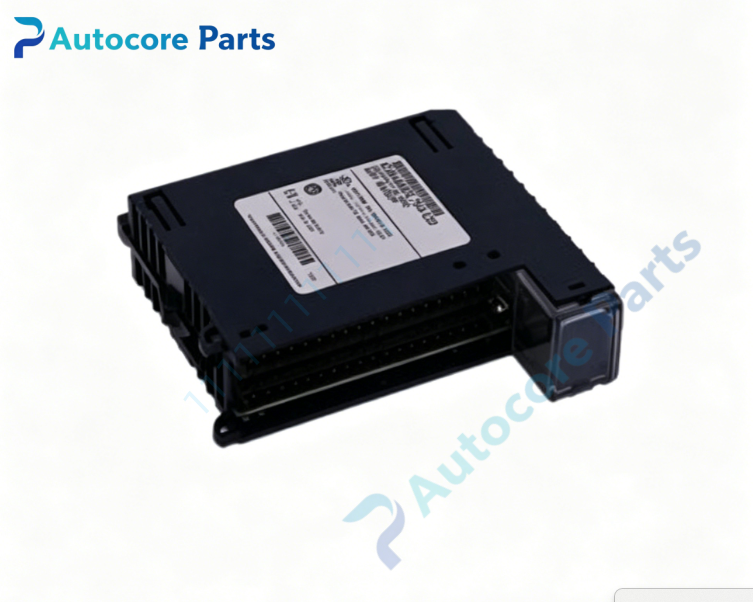

GE IS230SRTDH2A RTD SMX DIN‑Rail Terminal Board

Technical Specifications

Model: IS230SRTDH2A

Part Number: IS230SRTDH2A

Brand: GE（GE Vernova）

Product Type: SMX RTD terminal board

Matching System: GE Speedtronic Mark VIe Turbine Control System, mate with PRTD / VRTD I/O processor

Power Supply:24VDC, max 5.4W power consumption

Input Channels:8‑channel independent RTD input

Supported Sensors:Pt100, Pt1000, Cu50, Cu100

Wiring Mode:2‑wire, 3‑wire, 4‑wire configurable

Isolation:Field‑to‑system galvanic isolation

Installation:35mm standard DIN‑rail mounting or flat panel mounting

Operating Temperature:‑40℃ ~ +70℃, non‑condensing

Protection Class:IP20

Weight:1.2kg

Dimension:264mm ×167mm ×55mm

Compatible System:Power plant gas turbine, steam turbine control cabinet

Core Function:Special RTD signal termination module for Mark VIe turbine control system. It receives resistance temperature signals from bearing, casing and other RTD sensors, completes signal isolation and filtering, transmits conditioned signals to PRTD/VRTD I/O processor. It realizes real‑time temperature monitoring, over‑temperature alarm and thermal protection for turbine units, effectively avoids ground‑loop interference and guarantees temperature measuring accuracy.

Product Details

The IS230SRTDH2A is SMX series DIN‑rail type RTD terminal board for GE Mark VIe Speedtronic turbine control system.

This module adopts compact DIN‑rail installation structure, equipped with high‑density euro‑style terminal blocks for field RTD sensor wiring. It supports multiple wiring modes for various thermal resistance sensors, collects temperature signals of turbine bearings, casings, pipelines and other key positions. After isolation and filtering processing, valid temperature data is sent to rear‑stage PRTD or VRTD I/O processor for conversion and calculation, providing accurate temperature data for turbine monitoring and protection logic.

Built‑in channel diagnosis function, capable of detecting sensor open‑circuit, short‑circuit and signal abnormality, and upload fault alarm information to turbine controller. Conformal coated circuit board improves anti‑interference capability, adapts to harsh electromagnetic environment of power‑plant turbine site.

It belongs to key spare‑part for Mark VIe turbine control system maintenance, widely used in overhaul and renovation projects of gas‑steam turbine generating units.

It is important spare hardware for turbine temperature measuring loop debugging and defective IS230SRTDH2A module replacement.
