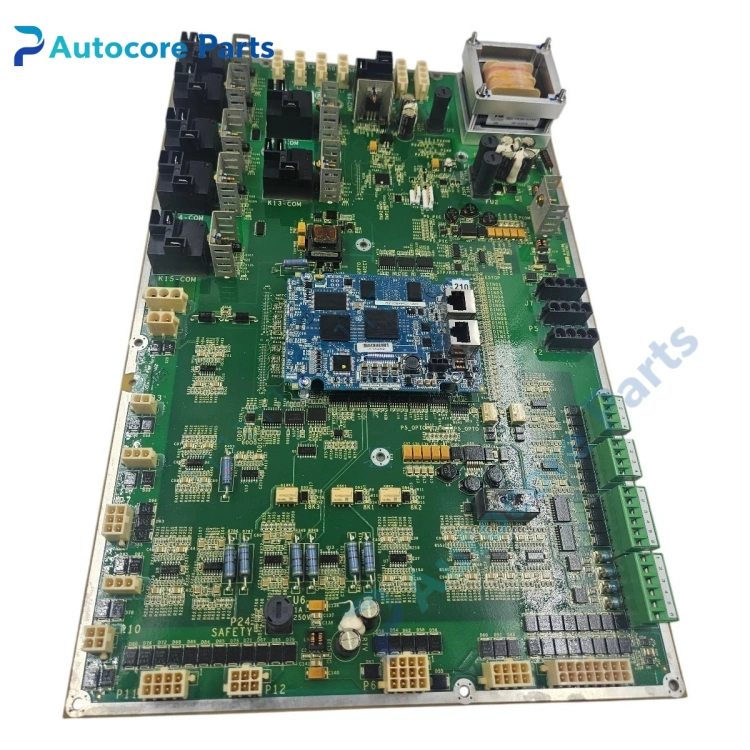

GE IS200WEMAH1AEA Circuit Board

Feature & Principle

It is GE Mark VIe system WEMA wind energy main circuit board. It collects analog and digital field signals, completes signal conditioning and data forwarding, and realizes data interaction between the main controller and on-site sensors and actuators. It has built-in fuse, relay and multi-channel signal circuit, with multi-protection function such as over-current and over-voltage. It adopts standard rack plug-in structure, supports online fault diagnosis, suitable for energy equipment control cabinet with high vibration and wide temperature environment.

Specifications

Model: IS200WEMAH1AEA Brand: GE Series: Mark VIe Type: Wind energy main assembly board Power supply: 24VDC Operating temperature: -30℃ ~ +70℃ Installation: Rack plug-in Application: Gas turbine, steam turbine, wind turbine control system Certification: CE

Components & Diagnostics

Main processing chip, signal conditioning circuit, fuse, relay, gold-plated backplane connector, status indicator. Common faults: signal channel loss, communication interruption, fuse blown, connector poor contact.

Product Brief

IS200WEMAH1AEA main control board, GE Mark VIe energy control spare widely used for turbine and wind power control cabinet overhaul and replacement.
