GE IS420UCSBH3A Mark VIe UCSB Controller Unit

Module Feature

IS420UCSBH3A is GE Mark VIe Speedtronic series UCSB standalone turbine controller module. Equipped with 1200 MHz Intel EP80579 processor, adopts fan‑less and battery‑less hardware design, no jumper setting required for commissioning. It acts as core computing unit, executes turbine control loop logic, I/O data processing and equipment protection algorithm. Support IONet I/O network, Modbus, EGD, OPC‑UA communication protocols, applicable to gas turbine, steam turbine and wind power unit control, can realize simplex or dual redundant system architecture.

Working principle

Controller obtains field signal data from IONet I/O modules. CPU runs turbine control and protection application software, outputs regulation commands to actuators. Realize data interaction with HMI, historian and other controllers via multi‑Ethernet ports; execute trip protection logic automatically when abnormal operating condition occursGE Vernova.

Onboard components

Intel processor core, on‑board flash storage, multiple Ethernet physical layer circuit, front‑panel LED array, IONet communication circuit, metal rack‑mount housing.

LED indicators

Front‑panel LEDs indicate power, run status, system fault, network link and communication abnormal information.

Hardware self‑diagnosis

Detect processor error, storage anomaly, IONet and Ethernet communication failure, internal hardware fault. View detailed diagnostic logs via Mark VIe engineering tool.

Programming software

Configuration, logic programming, commissioning and diagnosis by GE Mark VIe Control System Toolbox software.

Electrical & Process Parameters

Model:IS420UCSBH3A Brand:GE (General Electric / GE Vernova) Device type:Standalone Turbine Controller Module CPU:1200 MHz EP80579 Intel processor Power supply:24/28 VDC Communication:IONet I/O network, multiple Ethernet ports, Modbus, EGD, OPC‑UA Design:Fan‑less, battery‑less, jumper‑free Function:Control, monitoring and protection for gas / steam / wind turbine unit

Mechanical & Structure

Mounting:Mark VIe cabinet rack slot mounting Protection class:IP20 Housing:Metal enclosed module housing

Environmental

Operating temperature:0℃ ~ +65℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:Industrial power generation control system compliant Status:GE original Mark VIe Speedtronic controller module

Installation

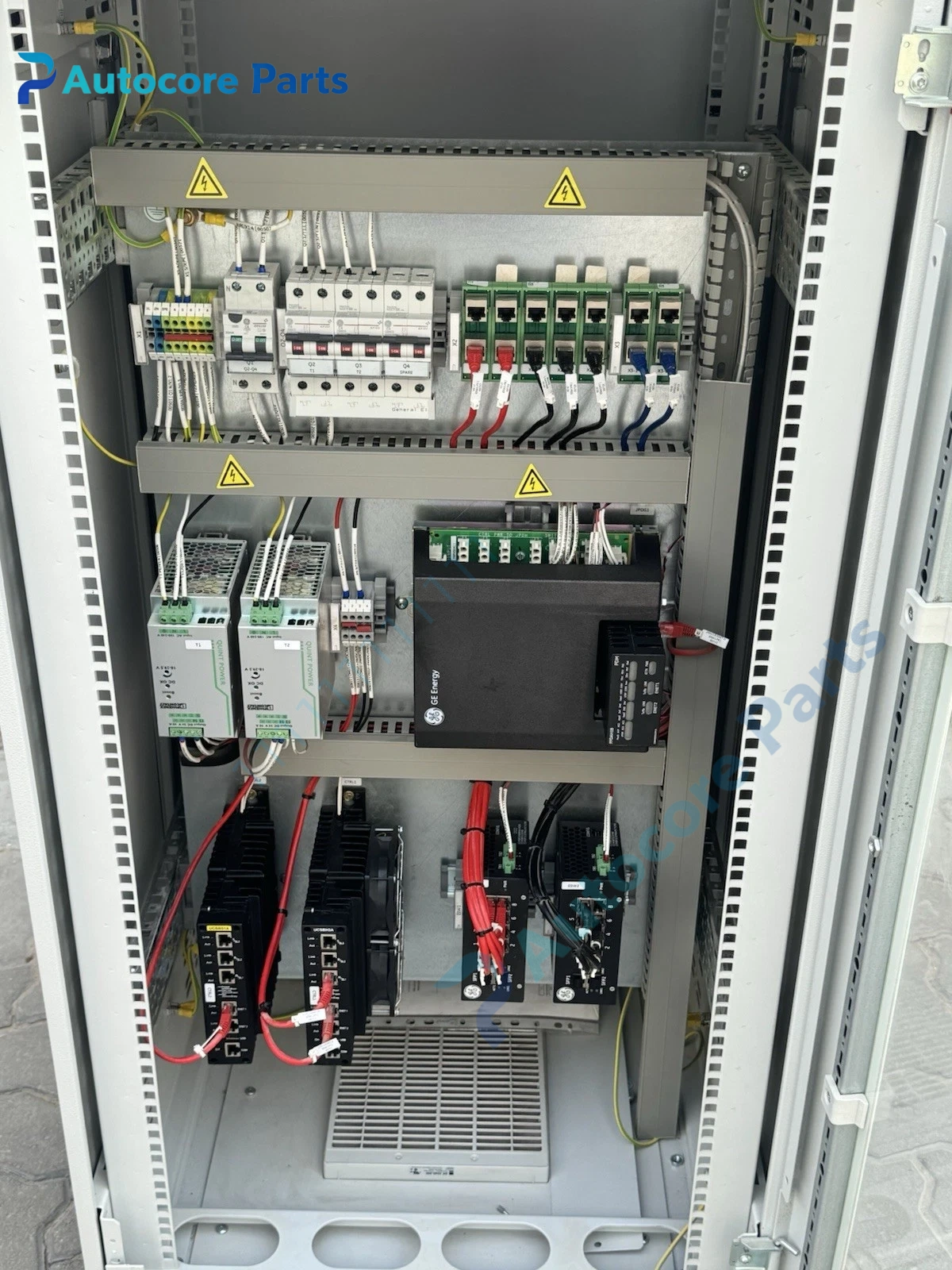

Insert module into Mark VIe system cabinet rack slot. Connect 24VDC power supply, IONet network cable and Ethernet communication cables. Complete hardware configuration, download turbine application project in Mark VIe engineering software.

Interface

Multiple RJ45 Ethernet ports (IONet, ENET1, ENET2), power terminals, rack backplane interface.

Diagnostic

Controller cannot run:24VDC power supply fault or flash firmware corruption. IONet communication lost:network cable damage or I/O module failure. Protection trip action:check system event log for turbine trip root‑cause information.

Product Brief

GE IS420UCSBH3A UCSB standalone controller, core CPU hardware of Mark VIe Speedtronic turbine control system, fan‑less and battery‑less for power generation turbine control and protection.
