GE MN31W16 M-PACT Plus ACB Unit

Module Feature

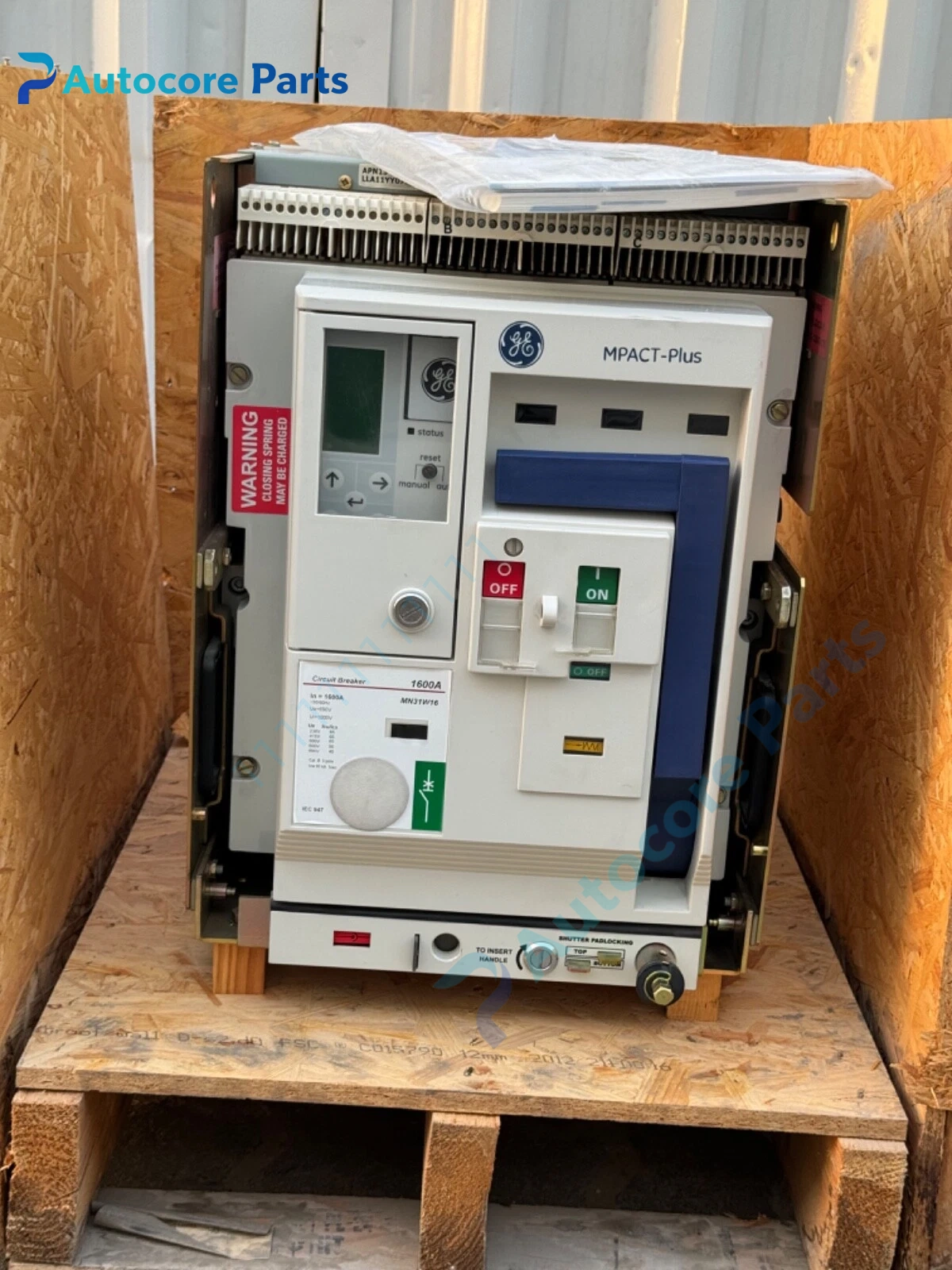

MN31W16 belongs to GE M-PACT Plus series drawout air circuit breaker.

It adopts 3-pole layout with 1600A frame current rating, non-automatic operating mechanism design. It supports drawout racking function with test, connected and isolated positions, equipped with mechanical interlock to prevent misoperation. It can be configured with auxiliary contact set and shunt trip accessories. It is widely used in factory power centers, mining substations and combined cycle power plant low voltage distribution cabinets for spare replacement.

Working principle

The manual stored-energy mechanism drives main contacts to close and open.

Arc extinguishing chamber quenches fault arc rapidly when breaking. Mechanical and electrical interlocks ensure safe racking operation. External protective relay is required for overload and short-circuit protection.

Onboard components

Main contact assembly, arc chute module, manual operating mechanism, drawout carriage, mechanical position indicator, auxiliary contact block, insulation support frame.

LED indicators

Not applicable.

Hardware self‑diagnosis

No built-in electronic self-diagnosis. Contact resistance, insulation resistance and operating sequence are checked during periodic maintenance.

Programming software

Not applicable.

Electrical & Process Parameters

Model:MN31W16 Brand:GE Device type:Drawout air circuit breaker Rated frame current:1600A Function:Switching and isolation for low voltage main incoming and bus tie feeder circuits

Mechanical & Structure

Mounting:Drawout carriage installation inside switchgear compartment Protection class:IP20 Housing:Insulated molded and metal frame assembly

Environmental

Operating temperature:-25℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC60947, UL

Status:Original GE power distribution spare

Installation

Install the drawout carriage into switchgear compartment.

Check racking interlock, contact engagement and auxiliary signal feedback before energizing.

InterfacePrimary busbar terminals, secondary control and auxiliary signal terminals.

Diagnostic

Fail to rack in/out: Mechanical jam or interlock not released. Overheating: Poor contact surface or insufficient terminal torque. Cannot open: Mechanism stuck or trip linkage blocked.

Product Brief

GE MN31W16 air circuit breaker, 3-pole 1600A drawout ACB for industrial low voltage distribution cabinet maintenance replacement.
