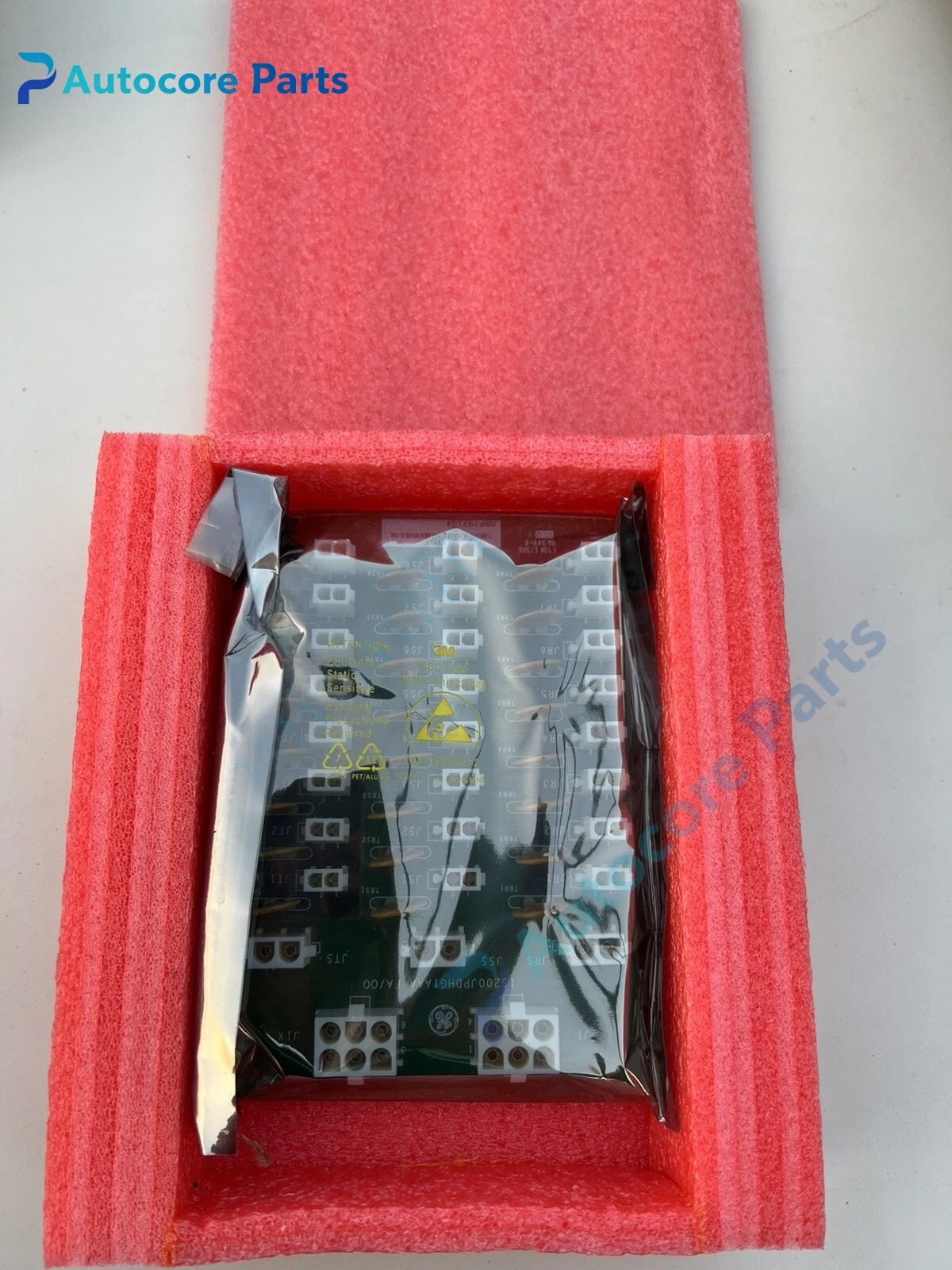

GE IS200JPDHG1AAA Power Distribution Board Unit

Module Feature

IS200JPDHG1AAA belongs to GE Speedtronic Mark VIe turbine control platform.

It is a conformal coated high-density power distribution board. It accepts triple redundant 28VDC input and distributes power to up to 24 I/O packs and 3 Ethernet switches. Each output channel has independent PTC resettable overload protection to isolate faulty branches without shutting down the whole rack. It supports daisy-chain expansion via J1X connector and meets Class I Div 2 hazardous area requirements. It is widely used on gas turbines, steam turbines and compressor control skids in power and oil & gas stations.

Working principle

The board receives redundant 28VDC power through the J1 input connector.

Internal circuits distribute power to each output channel, and PTC elements limit current when overload or short circuit occurs. It continuously monitors input voltage and channel health, and sends fault status to the Mark VIe controller for alarm reporting.

Onboard components

Power input terminal block, PTC protection array, distribution circuit, daisy-chain J1X connector, status LED array, conformal coated PCB, signal routing traces.

LED indicators

Front LEDs indicate main power health, channel fault status and daisy-chain link status.

Hardware self‑diagnosis

Built-in monitoring detects loss of 28VDC input, over-current trip of PTC channels, abnormal board temperature and backplane communication failure. Fault information is uploaded to the turbine control HMI and control software.

Programming softwareGE ToolboxST, used for system configuration, channel status checking and fault diagnosis for Mark VIe.

Electrical & Process Parameters

Model:IS200JPDHG1AAA Brand:GE Device type:High density 28VDC power distribution board Supply voltage:20–30V DC Function:Protected 28VDC power distribution for Mark VIe I/O packs and network switches

Mechanical & Structure

Mounting:DIN rail carrier installation inside turbine control cabinet Protection class:IP20 Housing:PCB assembly with acrylic conformal coating

Environmental

Operating temperature:-40℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IECEx, Class I Div 2 approved

Status:Original GE turbine control spare

Installation

Install the board in matched DIN rail carrier.

Connect redundant 28VDC power cables and daisy-chain cable if needed, verify each channel voltage and PTC status before turbine commissioning.

InterfaceJ1 triple redundant power input terminal, J1X daisy-chain expansion port, multi-channel output terminals for I/O and switches.

Diagnostic

Channel tripped: Short circuit or overload on the downstream I/O module. Input power alarm: Loss of one or more redundant 28VDC feed. Daisy chain unstable: Loose J1X connector or damaged cable.

Product Brief

GE IS200JPDHG1AAA JPDH power distribution board, protected 28VDC supply card for Mark VIe gas and steam turbine control rack maintenance replacement.
