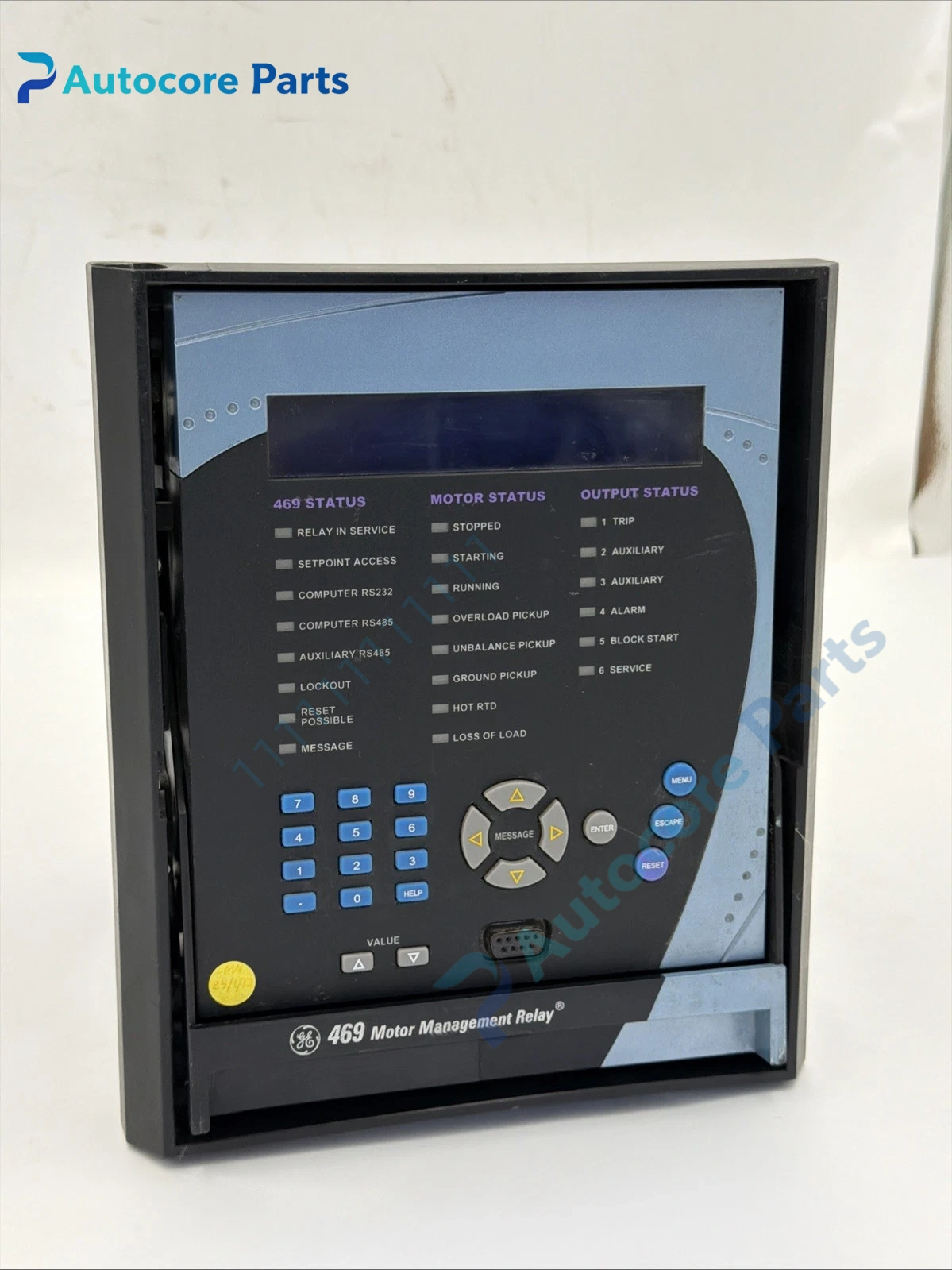

GE Multilin 469-P5-LO-A20-E-H Motor Management Relay Unit

Feature & Principle

This pluggable motor protection relay adopts advanced thermal model algorithm. It collects current, voltage and RTD temperature signals, realizes overload, unbalance, earth fault, locked rotor and over-torque protection. It supports event log and waveform recording, communicates via RS232 / RS485 Modbus, can upload running data and alarm information to SCADA system. Draw-out structure facilitates quick replacement without disconnecting CT circuit.

Specifications

Model: 469-P5-LO-A20-E-H Brand: GE Multilin (GE Vernova) Series: 469 Control power: 24~60V DC / 20~48V AC RTD: 100Ω Pt optional Communication: RS232, dual RS485 Analog output: 4 channels 4-20mA Structure: Full draw-out with automatic CT shorting Mounting: Panel mount Certification: IEC60255, CE, UL

Components & Diagnostics

CPU mainboard, signal sampling board, RTD acquisition module, relay output contact set, LCD display keypad and draw-out base. Common faults include communication interruption, false overload alarm, RTD channel failure, contact burnout and power supply abnormality.

Product Brief

469-P5-LO-A20-E-H motor relay, GE Vernova protection spare widely used for fans, pumps, compressors and other medium/large motor control centers.
