Giddings & Lewis 502-03640-02 Digital Output Module

Technical SpecificationsModel：502-03640-02 Brand：Giddings & Lewis Product Type: Single-slot plug-in PiC900 series 32-point 24VDC sourcing digital output module for PiC900 rack backplane

Module Feature:Function: Digital output module for PiC900 CNC system, receives commands from CNC CPU to drive field 24VDC actuators, relays, solenoid valves and indicator lights on machine tools. Channel count:32 channels sourcing digital output Output type:Source output Rated voltage:5~32VDC, nominal 24VDC Single channel max current:0.4A per channel Group rating:Max 2A per group of 8 outputs Switching delay:Max 30μs on delay, max 300μs off delay LED indicators:OK, CHANNEL STATUS, FAULT diagnostic lights Hardware self-diagnosis:Overcurrent detection, short-circuit protection, backplane bus communication monitoring Programming software:PiCPro I/O address configuration software

Electrical ParametersBackplane supply:+5V from PiC900 rack Field supply:24VDC external field power Power consumption:Max 3.1W External 24VDC field power required for output channels

Mechanical & Structure:Mounting:Plug into PiC900 rack single slot Weight:0.21kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC I/O module

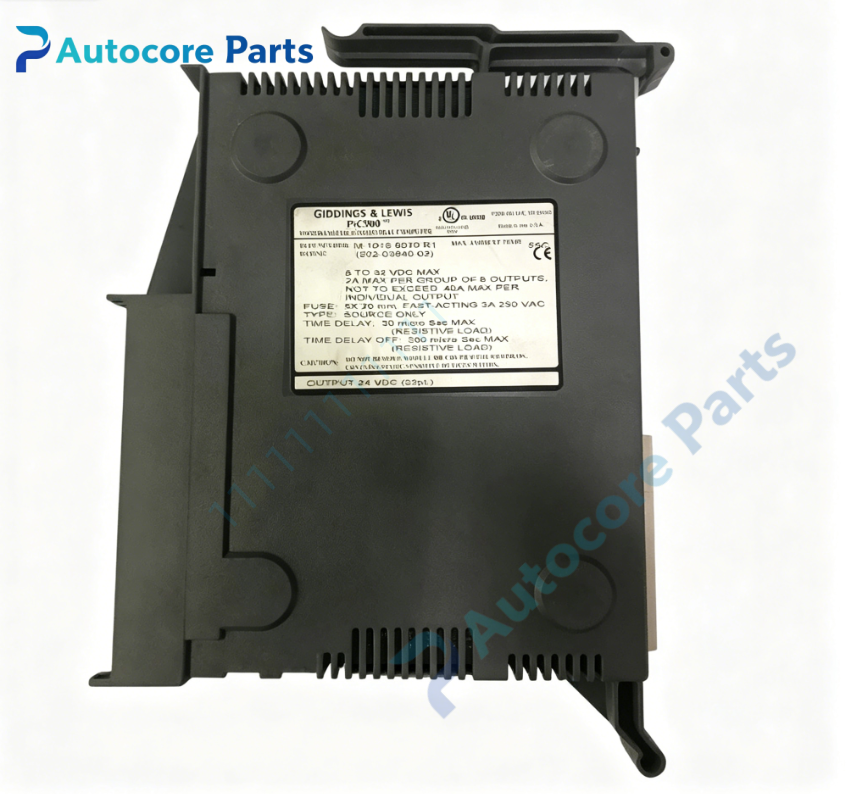

System compatibility502-03640-02 belongs to Giddings & Lewis PiC900 control family, also marked as M.1016.9070 R1. Compatible with PiC900 backplane, CPU processor boards and other I/O modules. Widely used on G&L 70A horizontal boring mills, PMC CNC boring machines and heavy machining centers for controlling solenoid valves, lubrication and coolant relays.

Function502-03640-02 is PiC900 32-point 24VDC sourcing digital output module made by Giddings & Lewis. It converts CNC logic commands into 24VDC field output signals. Each channel has overcurrent and short-circuit protection to prevent module damage when field wiring fault occurs. It controls machine auxiliary components including hydraulic solenoids, lubrication pumps, coolant valves and alarm lamps.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power and external 24VDC field power. Insert 502-03640-02 module into PiC900 backplane slot and lock retainer. Connect field 24VDC wiring to terminal block, separate power cable from signal cable to reduce interference. Assign I/O addresses in PiCPro software. Power on and test each output channel status.

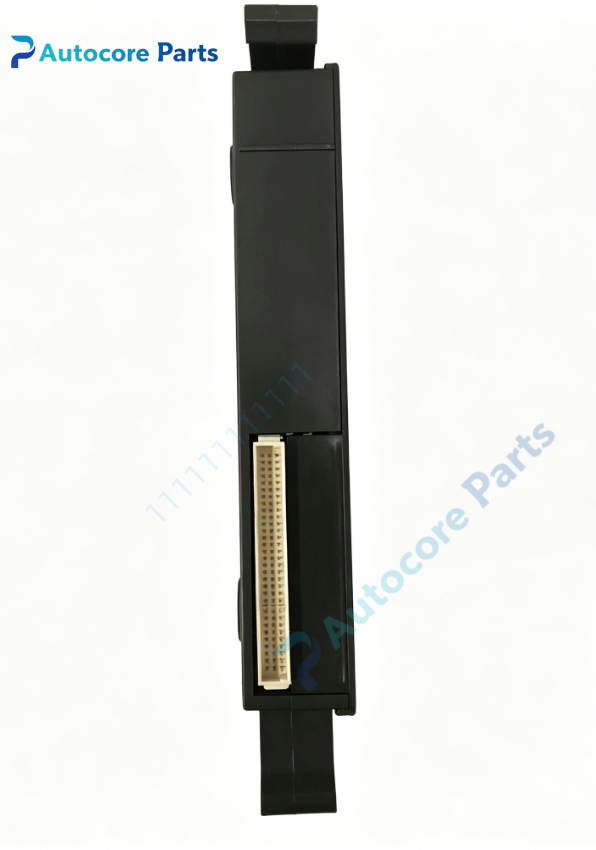

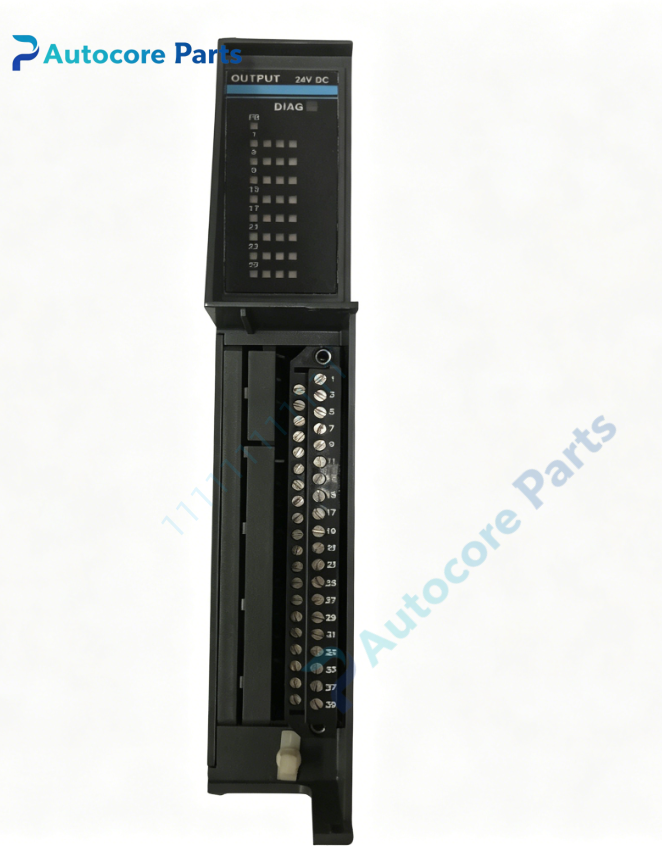

InterfacePiC900 backplane gold-edge connector,field wiring terminal block,on-board OK / CHANNEL STATUS / FAULT LED indicators for Giddings & Lewis 502-03640-02.

DiagnosticOutput channel no power:Check external 24VDC field supply, wiring or channel address configuration. FAULT LED lit:Channel short circuit, overcurrent or backplane communication failure. Individual channel not switching:Output channel burnout or field load fault.

Product Brief502-03640-02 is Giddings & Lewis legacy PiC900 32-point 24VDC sourcing digital output module,for controlling solenoid valves and auxiliary actuators on heavy CNC boring mills,discontinued CNC I/O spare card.
