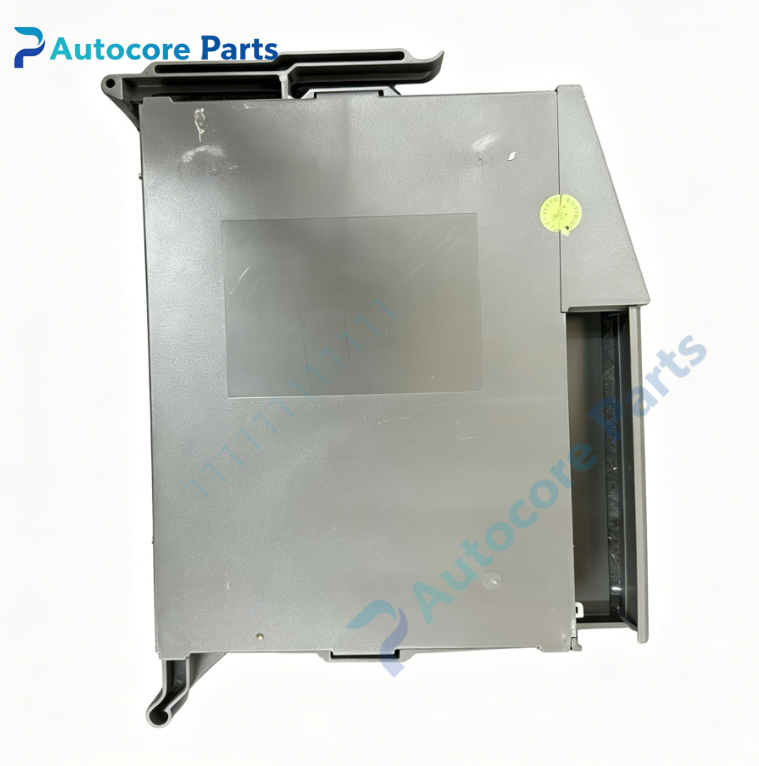

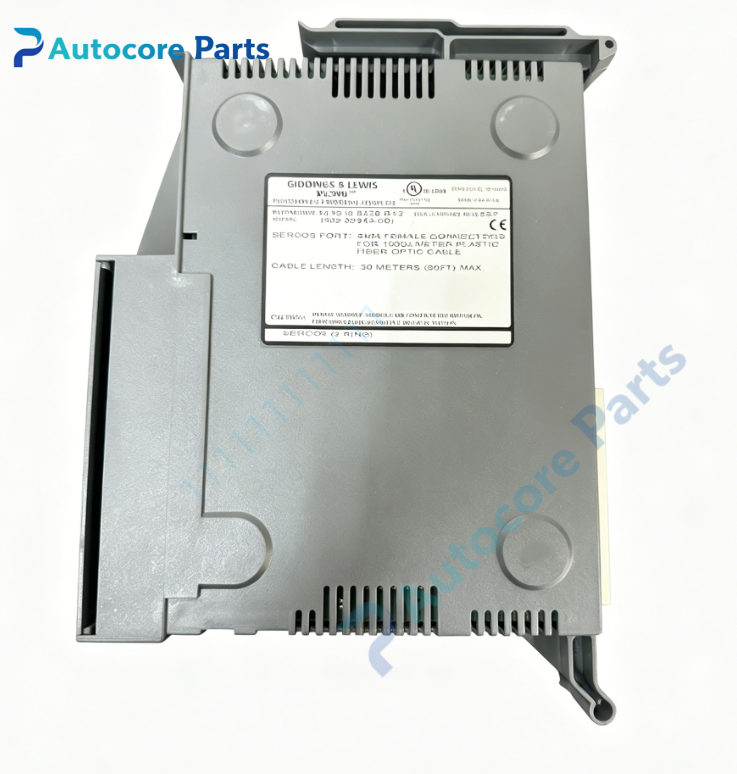

Giddings & Lewis 502-03944-00 SERCOS Interface Module

Technical SpecificationsModel：502-03944-00 Brand：Giddings & Lewis Product Type: Single-slot plug-in SERCOS fiber interface module for PiC900 CNC control rack

Module Feature:Function: Dual-ring SERCOS fiber communication module for PiC900 CNC system, establishes real-time fiber SERCOS link between CNC controller and SERCOS servo drives. Topology: Two independent SERCOS fiber rings Max slave devices: Up to 8 SERCOS slaves per ring Connector type: SMA female fiber ports, compatible with 1000m plastic optical fiber Onboard port: RS232 serial port for firmware update and diagnostic Onboard processor: Local processor for SERCOS protocol handling LED indicators: OK, RUN, COM, FAULT, RING diagnostic lights Hardware self-diagnosis: Fiber link detection, slave node status monitoring, ring break detection, backplane bus diagnosis Programming software: PiCPro for network configuration and firmware upgrade

Electrical ParametersBackplane supply:+5V from PiC900 rack backplane, 575mA Power consumption:Max 2.9W No external field power required

Mechanical & Structure:Mounting:Plug into PiC900 rack single slot Dimension:41mm × 305mm × 213mm Weight:0.28kg Protection class:IP20

Environmental:Operating temperature:7℃ ~ +55℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC communication module

System compatibility502-03944-00 belongs to Giddings & Lewis PiC900 control platform. Compatible with PiC900 CPU board, PiC900 backplane and SERCOS based Centurion servo drives. Widely used for G&L 70A horizontal boring mills and PMC series CNC boring machines.

Function502-03944-00 is PiC900 SERCOS fiber interface module manufactured by Giddings & Lewis. It handles high-speed real-time SERCOS fiber bus communication between CNC CPU and servo drives. Dual ring design improves network redundancy and reliability. It transmits cyclic motion commands and receives servo position feedback independently. RS232 port supports field firmware upgrade and module diagnosis. It is critical spare communication card for legacy G&L SERCOS CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert 502-03944-00 module into PiC900 backplane slot and lock retainer. Connect plastic SERCOS fiber cables to SMA ports and configure ring topology. Set SERCOS node addresses in PiCPro software. Power rack on and verify fiber link and servo slave communication.

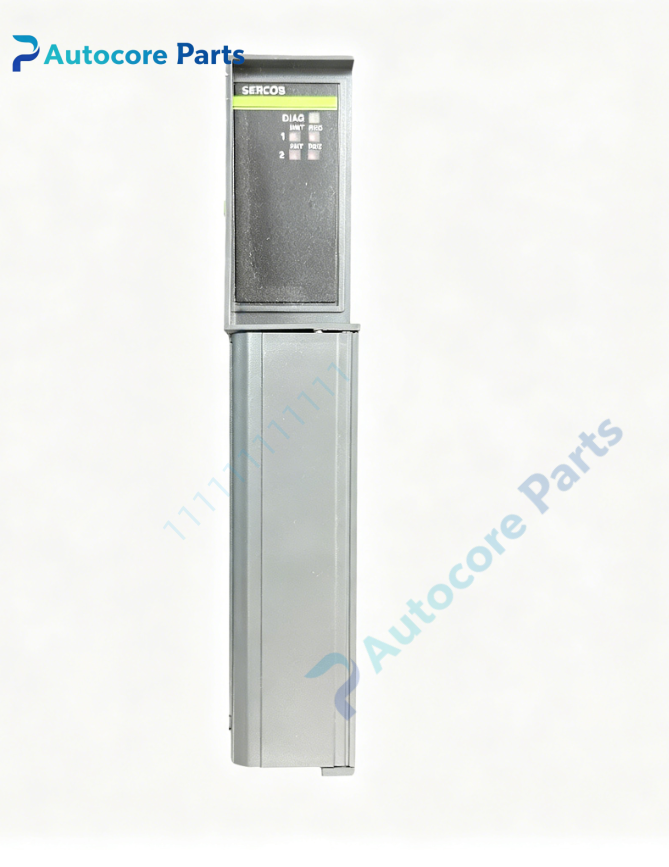

InterfacePiC900 backplane gold-edge connector,dual SMA fiber ports,RS232 update port,on-board OK / RUN / COM / FAULT / RING LED indicators for Giddings & Lewis 502-03944-00.

DiagnosticServo slave offline:Check fiber cable, SMA connector cleanliness, ring termination or node address error. RING alarm:Fiber damage, broken ring or optical power attenuation. FAULT LED lit:Backplane communication fault or module firmware corruption.

Product Brief502-03944-00 is Giddings & Lewis legacy PiC900 dual-ring SERCOS fiber interface module,for high speed real-time communication between CNC controller and SERCOS servo drives,discontinued CNC spare card.
