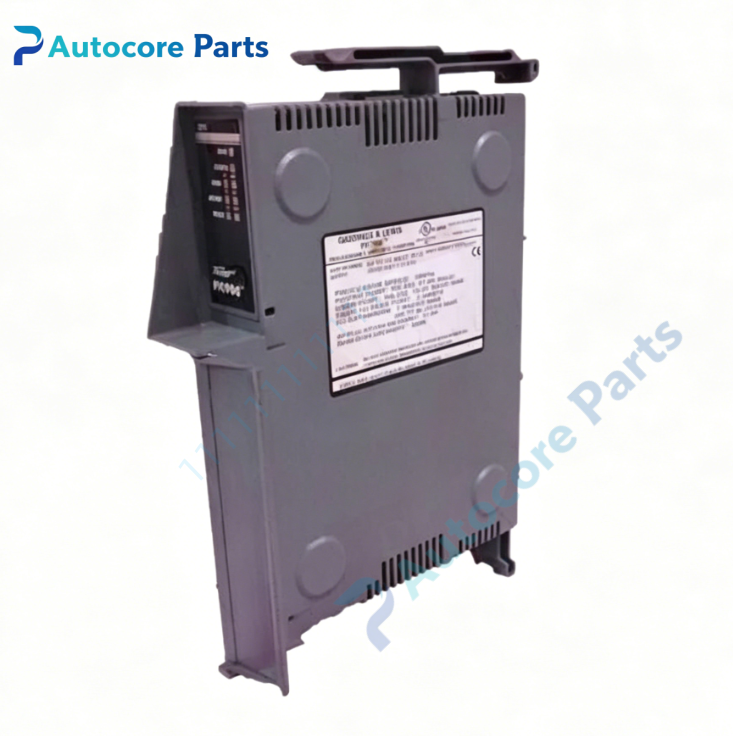

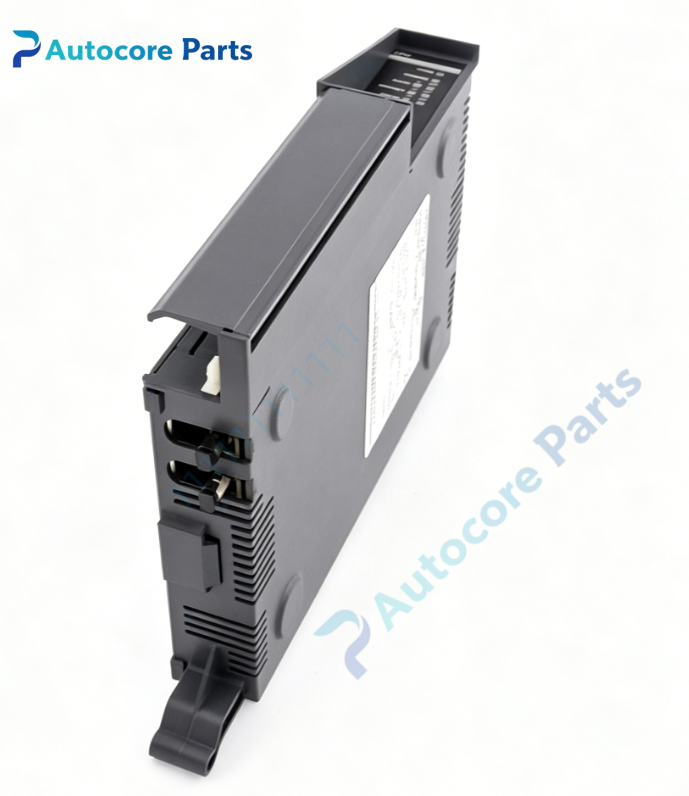

Giddings & Lewis M.1016.9627 Processor Module

Technical SpecificationsModel：M.1016.9627 Brand：Giddings & Lewis Product Type: Single-slot plug-in PiC900 series CNC processor control module for Giddings & Lewis machine tool backplane

Module Feature:Function: Main CPU processor board of PiC900 CNC system, executes CNC motion control program, handles axis interpolation, I/O scanning and serial communication for boring mills and machining centers. Onboard memory: Built-in program flash memory and battery backed RAM for motion parameters and user program storage Onboard ports: 2×RS232 serial communication ports for operator panel and peripheral device connection Control capability: Multi-axis servo motion interpolation, supports closed-loop position control for machine axes Firmware: Field upgradable PiCPro firmware LED indicators: OK, RUN, SYS FLT, COM diagnostic status lights Hardware self-diagnosis: Memory integrity check, backplane bus detection, serial port self-test, servo communication monitoring Programming software: PiCPro for program configuration and debug

Electrical ParametersBackplane supply:+5V and +3.3V from rack backplane Power consumption:Max 4.8W Battery for RAM data retention, sold separately

Mechanical & Structure:Mounting:Plug into PiC900 rack backplane single slot Weight:0.23kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC control module

System compatibilityM.1016.9627 belongs to Giddings & Lewis PiC900 control family. Compatible with PiC900 rack, servo drive modules, I/O modules and original operator panels. Widely used for 70A series boring mills, PMC series CNC horizontal boring machines and other Giddings & Lewis heavy machine tools.

FunctionM.1016.9627 is PiC900 CNC processor board manufactured by Giddings & Lewis. It runs PiCPro control software, performs multi-axis interpolation and real-time motion control for heavy machine tools. It communicates with servo drives and I/O modules via backplane bus, handles serial connection to HMI panel. Battery backup preserves program and axis parameters when power loss. It is the core spare controller board for G&L legacy boring mill CNC systems.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert M.1016.9627 module into PiC900 backplane slot and lock retainer. Install backup battery for memory retention. Connect RS232 serial cables to operator panel. Download CNC program and axis parameters via PiCPro software. Power rack on and verify CNC boot and axis control.

InterfacePiC900 backplane gold-edge connector,dual RS232 serial ports,on-board multi-status LED indicators for Giddings & Lewis M.1016.9627.

DiagnosticCNC unable to boot:Check backplane power supply, battery voltage or module seating. SYS FLT LED lit:Memory fault, backplane communication error or firmware damage. No HMI communication:RS232 cable fault, baud rate mismatch or serial port failure.

Product BriefM.1016.9627 is Giddings & Lewis legacy PiC900 CNC processor module,the core motion control board for heavy boring mills and machining centers,discontinued CNC control spare card.
