Giddings & Lewis PMC5-3X CNC Horizontal Boring Mill

Technical SpecificationsModel：PMC5-3X Brand：Giddings & Lewis Product Type: Heavy-duty CNC table type horizontal boring mill for large cast and forged workpiece boring, milling and tapping

Module Feature:Function: CNC controlled heavy horizontal boring mill, performs multi-axis precision boring, milling, drilling and tapping for large heavy workpieces in heavy industry. Spindle diameter:5 inch Main spindle motor:25HP Spindle taper:ANSI #50 taper with power drawbar Max spindle speed:1120 RPM Work table dimension:48" × 120" rotary table Axis travel:X axis 84", Y axis 96", Z axis ram travel Structure: Thick cast iron heavy frame, high rigidity box way design Control system: Original Giddings & Lewis CNC control, support axis interpolation LED indicators: Spindle RUN, axis motion, hydraulic pressure, lubrication, overload alarm lights Hardware self-diagnosis: Spindle load monitoring, axis overtravel protection, hydraulic pressure detection, lubrication flow monitoring

Electrical ParametersMain power supply:480V 3-phase AC Main motor rated power:25HP Power consumption:Max 22kW Auxiliary power for hydraulic station, lubrication and coolant pump

Mechanical & Structure:Mounting:Fixed floor installation, heavy reinforced concrete foundation required Weight:Approx 26400kg Protection class:IP20

Environmental:Operating temperature:5℃ ~ +40℃ Ambient humidity:5~85% non-condensing Certification:CE, OSHA industrial machine safety standard Status:Manufacturer discontinued legacy CNC machine tool

System compatibilityPMC5-3X belongs to Giddings & Lewis PMC series CNC boring mill family. Compatible with original machine spare parts, servo drives, spindle components and third-party CNC retrofit kits. Widely used in energy, mining equipment, heavy machinery and large mold manufacturing workshops.

FunctionPMC5-3X is heavy-duty CNC horizontal table boring mill manufactured by Giddings & Lewis. The heavy cast iron boxway structure delivers excellent rigidity for heavy metal cutting. Equipped with large rotary worktable for multi-sided machining of large components. CNC system supports multi-axis contouring and automatic tool processing, suitable for precision machining of large castings and forgings. It can be retrofitted with modern CNC control for upgrade.

InstallationFollow heavy machine safety installation procedure. Build reinforced concrete foundation according to machine layout drawings. Position and level machine by precision level instrument. Connect three-phase power supply, hydraulic pipeline, lubrication oil circuit and coolant system. Install and test CNC control system, set axis reference. Perform no-load running test and cutting test to verify machining precision.

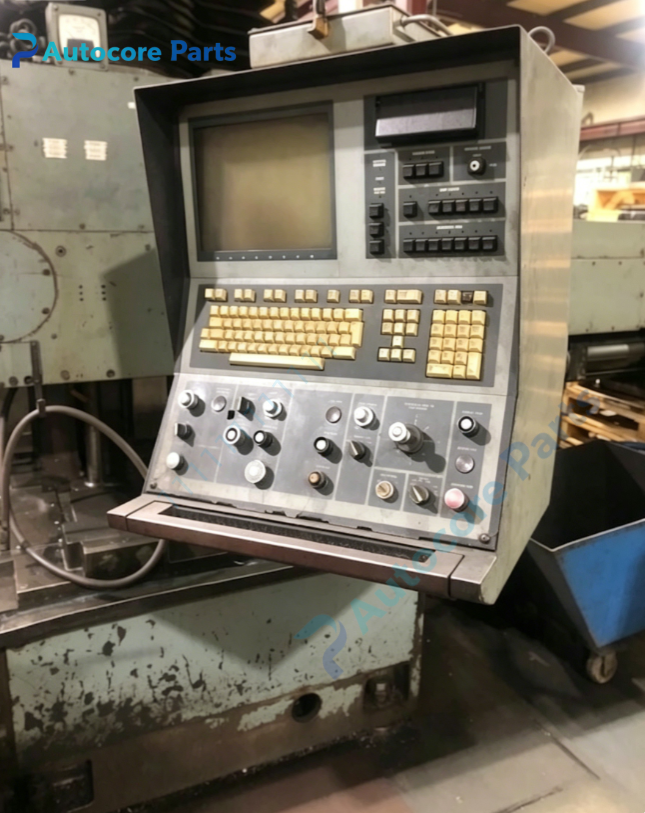

Interface3-phase power terminal block, hydraulic oil inlet/outlet, coolant ports, CNC operator panel and multi-status LED indicators for Giddings & Lewis PMC5-3X.

DiagnosticSpindle cannot start:Check three-phase power, overload relay trip or insufficient lubrication pressure. Axis movement abnormal:Box way oil shortage, metal chip jam or limit switch fault. CNC axis alarm:Servo drive fault, encoder error or cable damage.

Product BriefPMC5-3X is Giddings & Lewis legacy CNC horizontal table boring mill,with 5 inch spindle and 25HP spindle motor for heavy large workpiece precision boring and milling,discontinued heavy CNC machine tool.
