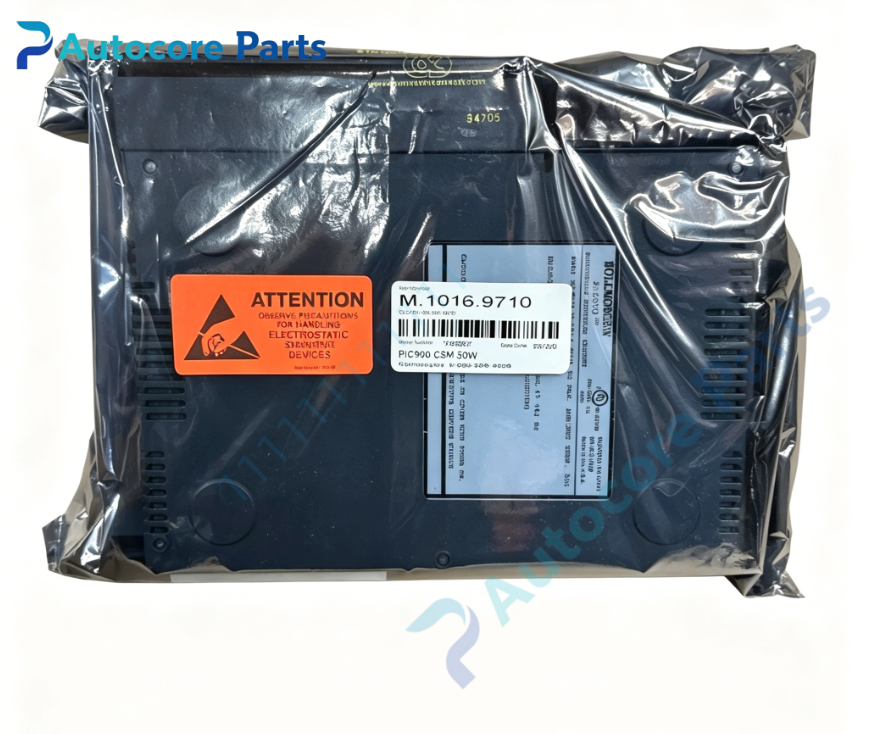

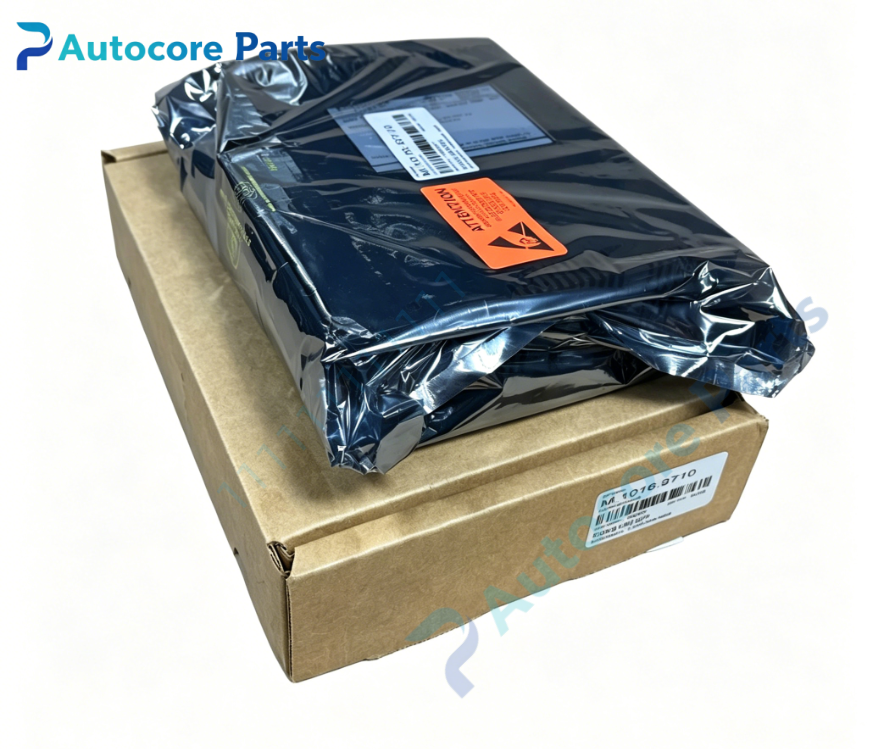

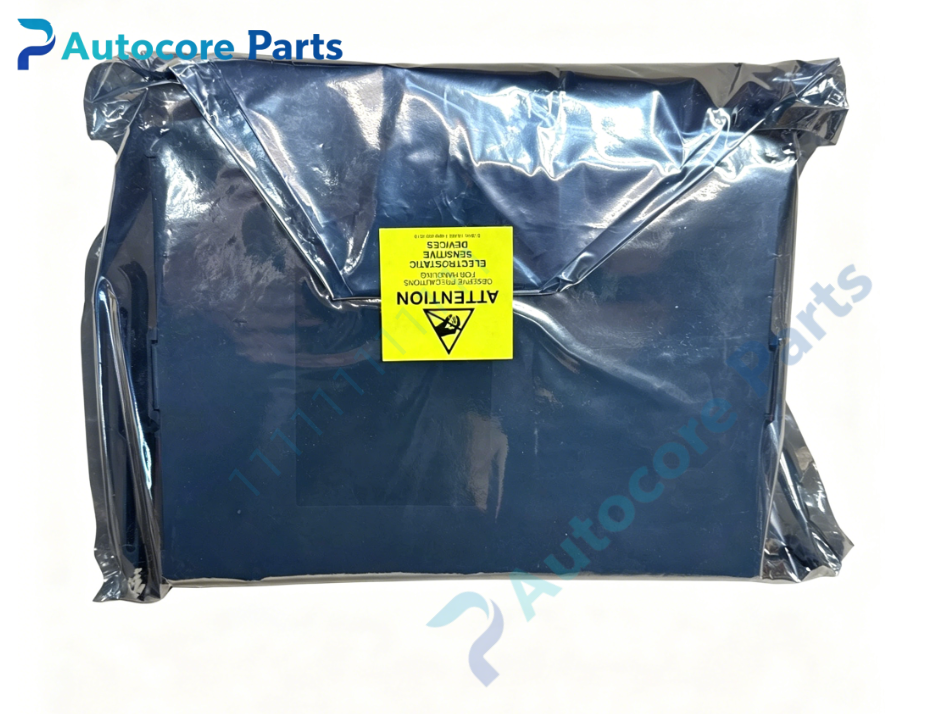

Giddings & Lewis M.1016.9710 PiC900 Power Supply

Technical SpecificationsModel：M.1016.9710 Brand：Giddings & Lewis Product Type: Single-slot plug-in AC-DC power supply module for PiC900 rack backplane

Module Feature:Function: Rack power supply for PiC900 CNC system, converts wide range AC input to stable regulated DC voltages to power PiC900 CPU, I/O and communication modules on heavy boring mills and machining centers. Input voltage:90~250V AC, 47~440Hz Output:Multiple regulated DC rails for backplane Backup battery slot:Equipped with BR-2/3A lithium battery to retain memory data during power loss Cooling:Built-in fan cooling assembly LED indicators: POWER OK, FAULT diagnostic lights Hardware self-diagnosis:Overvoltage, undervoltage, overcurrent, overtemperature protection, fan failure detection Programming software:PiCPro for power module status monitoring and fault readout

Electrical ParametersAC Input:90 to 250V AC Output:Multi-channel regulated DC for PiC900 rack Nominal power rating:50W Battery:BR-2/3A lithium battery (for memory retention)

Mechanical & Structure:Mounting:Plug into PiC900 rack single slot Weight:1.2kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy PiC900 power module

System compatibilityM.1016.9710 belongs to Giddings & Lewis PiC900 control platform. Compatible with PiC900 backplane, CPU processor boards, digital / analog I/O and SERCOS fiber modules. Widely fitted on G&L 70A horizontal boring mills and PMC CNC boring machines.

FunctionM.1016.9710 is PiC900 rack power supply manufactured by Giddings & Lewis. It supplies all DC operating voltages to every module in the PiC900 rack. The built-in lithium backup battery preserves CNC parameters, part programs and memory data when main power is cut off. Multi-level protection cuts output automatically if overheat, short circuit or voltage abnormality occurs. It is the core power spare part for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Disconnect AC mains power. Insert M.1016.9710 module into PiC900 rack slot and lock retainer. Verify battery condition before power-up. Connect 90-250V AC input wiring. Power on rack and check POWER OK indicator, test all rack modules for normal operation.

InterfaceAC input terminal block,PiC900 backplane gold-edge connector,battery compartment,on-board POWER OK / FAULT LED indicators for Giddings & Lewis M.1016.9710.

DiagnosticNo power output:Check AC mains input, fuse or internal fan failure. FAULT LED lit:Overtemperature, overvoltage/undervoltage or internal short circuit. Parameters lost after power down:Backup battery depleted or battery contact fault.

Product BriefM.1016.9710 is Giddings & Lewis legacy PiC900 rack power supply module,with wide 90-250VAC input and memory backup battery,for supplying PiC900 CNC rack system,discontinued CNC power spare module.
