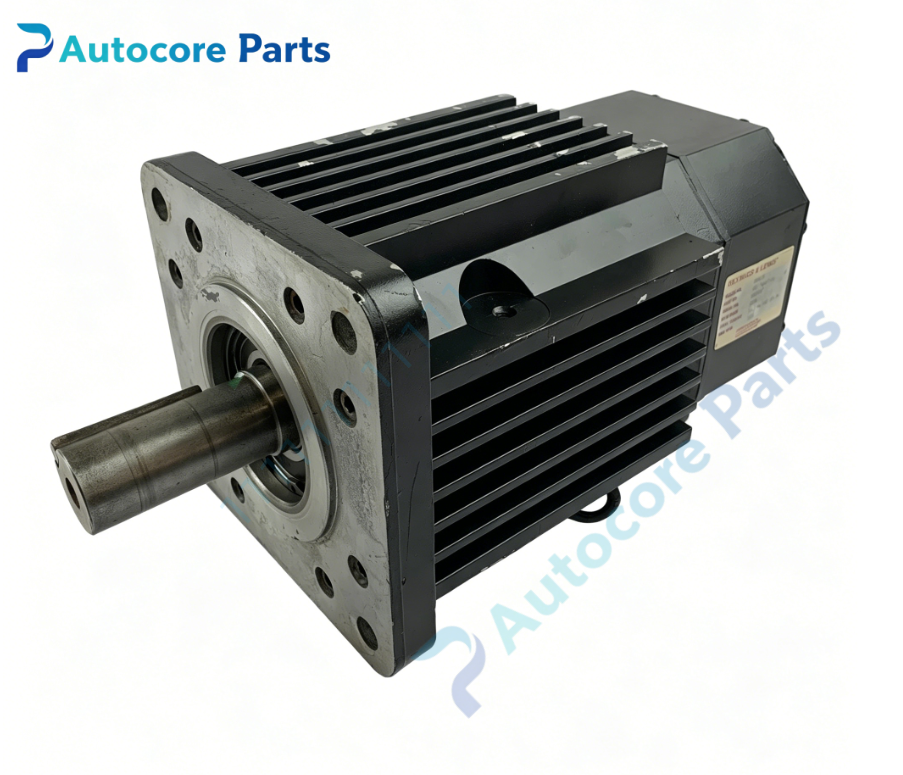

Giddings & Lewis 410-34437-00 Servo Motor

Technical SpecificationsModel：410-34437-00 Brand：Giddings & Lewis Product Type: Brushless AC servo motor for heavy CNC machine tool linear and rotary axis drive

Module Feature:Function: Permanent magnet brushless servo motor for G&L PiC900 CNC system, delivers closed-loop speed and position control for X/Y/Z axes of horizontal boring mills and heavy machining centers. Rated voltage:230V 3-phase AC Feedback:Integrated high resolution incremental encoder for position feedback Bearing:Heavy-duty bearing assembly for intermittent heavy cutting load Housing:Robust cast alloy housing Option:Spring-applied 24VDC holding brake LED indicators:Drive side motor ready, overload and fault indicator lights Hardware self-diagnosis:Motor winding temperature monitoring, encoder signal detection, overload protection, brake status feedback

Electrical ParametersRated supply:230V 3-phase AC Brake supply:24VDC (brake equipped version) Power consumption:Depends on dynamic cutting load

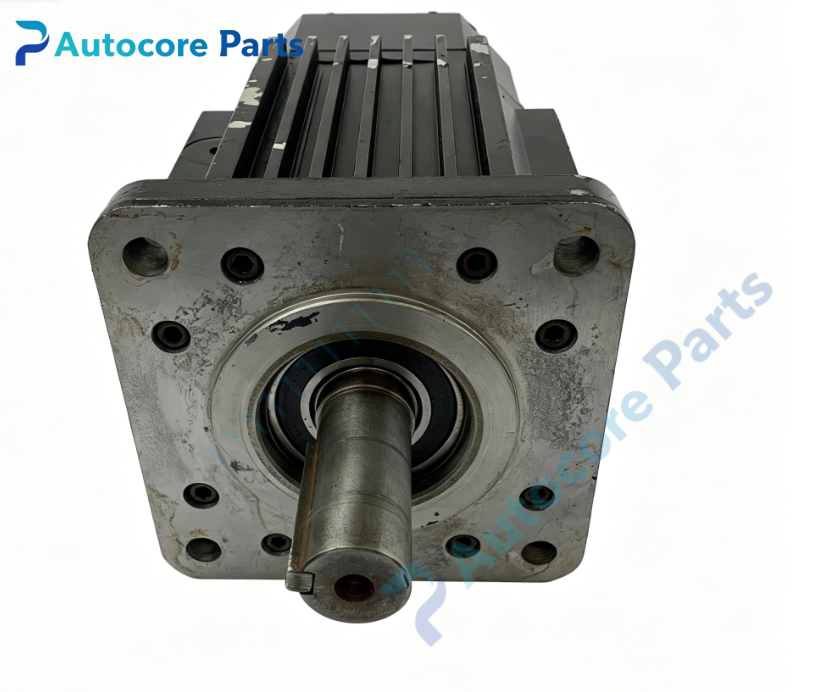

Mechanical & Structure:Mounting:Flange mount Weight:9.6kg Protection class:IP65

Environmental:Operating temperature:0℃ ~ +40℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy servo motor

System compatibility410-34437-00 belongs to Giddings & Lewis Centurion servo family. Compatible with PiC900 CNC control platform and Centurion SERCOS servo amplifiers. Widely fitted on G&L 70A horizontal boring mills and PMC CNC boring machines for machine axis motion drive.

Function410-34437-00 is brushless AC servo motor manufactured by Giddings & Lewis. It cooperates with Centurion SERCOS servo drive to achieve high-precision closed-loop position and velocity control for machine axes. Built-in incremental encoder feeds real-time axis position signal back to PiC900 CNC controller. Optional 24V holding brake locks axis position during power loss to prevent workpiece offset under heavy cutting load. It is a critical axis motion spare part for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off servo drive main power. Mount motor to ball screw or gearbox coupling and adjust shaft concentricity. Connect shielded three-phase power cable and encoder feedback cable. Wire 24VDC brake circuit if the brake option is equipped. Configure motor parameters in PiCPro software and complete axis homing test. Run no-load test and check axis positioning accuracy.

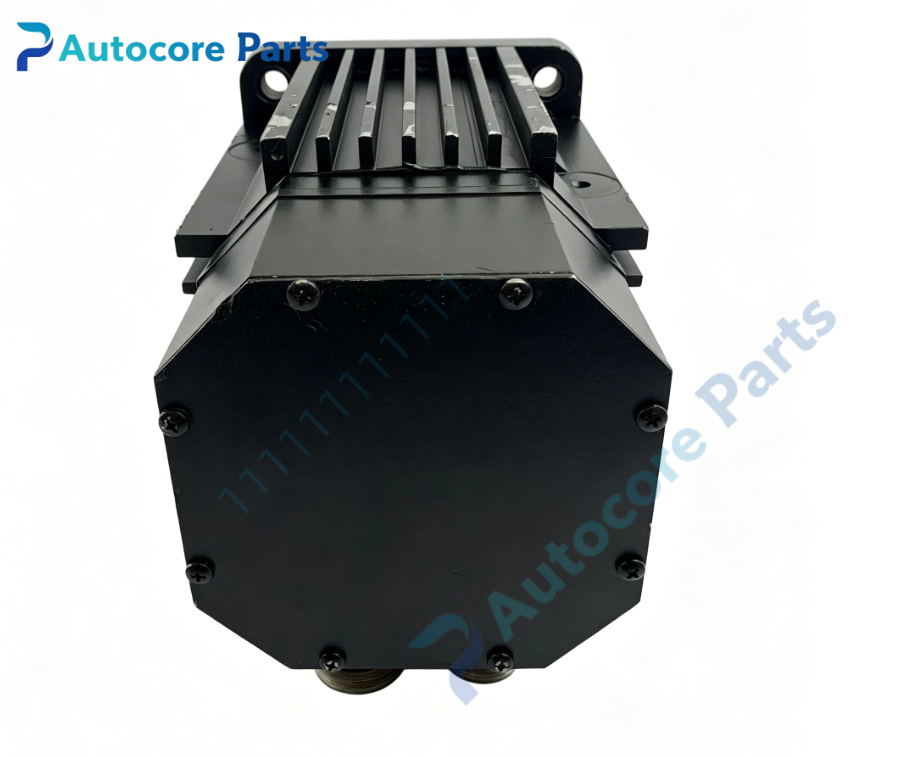

Interface3-phase power connector,encoder feedback connector,brake control connector,on-board drive side ready and fault LED indicators for Giddings & Lewis 410-34437-00.

DiagnosticAxis fails to move:Check servo enable signal,three-phase power supply or brake release circuit fault. Motor overload alarm:Mechanical axis binding, excessive cutting load or bearing wear. Position tracking error:Encoder cable damage, loose coupling or encoder hardware failure.

Product Brief410-34437-00 is Giddings & Lewis legacy brushless AC servo motor,for heavy CNC boring mill X/Y/Z axis closed-loop motion control,discontinued machine tool servo spare.
