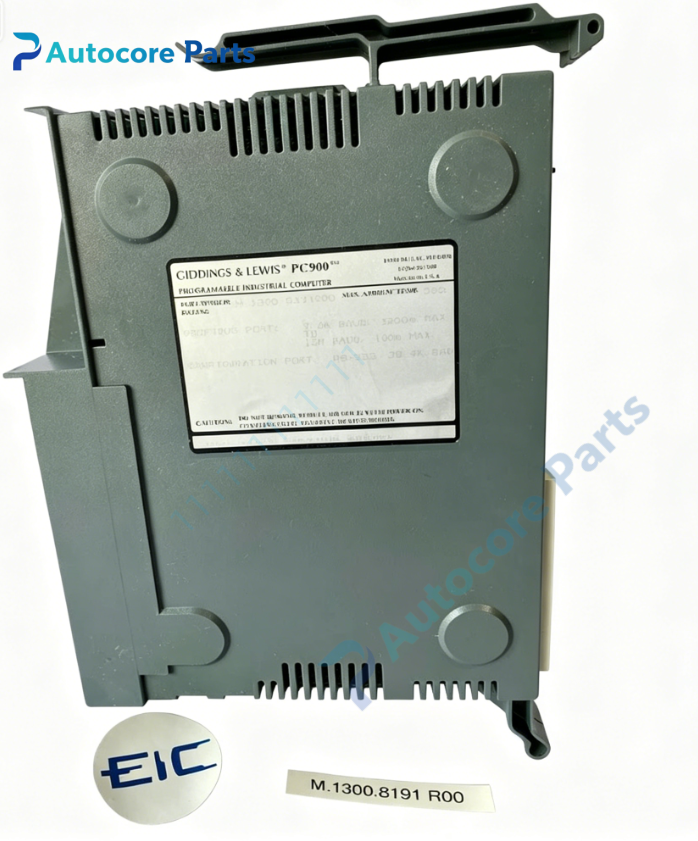

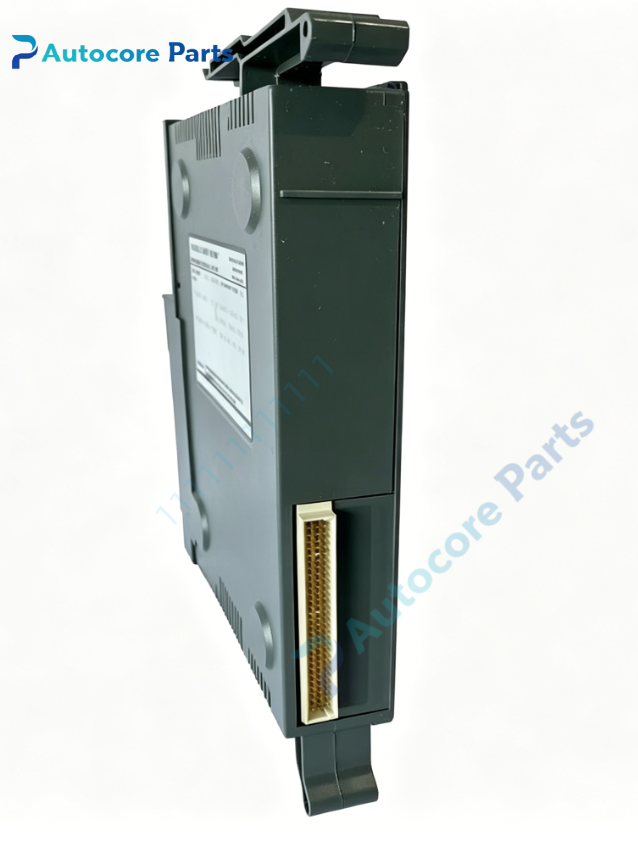

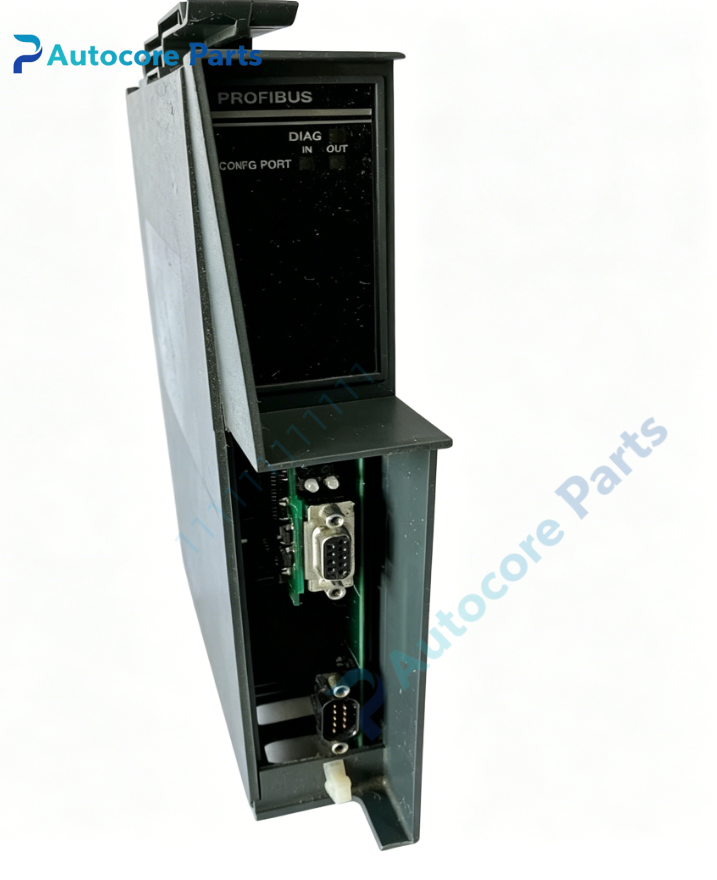

Giddings & Lewis M.1300.819 R00 Motion Control Module

Technical SpecificationsModel：M.1300.819 R00 Brand：Giddings & Lewis Product Type: MMC series rack mount multi-axis motion control board for PiC900 CNC system

Module Feature:Function: Multi-axis motion control board for G&L PiC900 platform,calculates closed-loop position and velocity loop for machine axes,output motion commands to servo amplifiers for horizontal boring mills and heavy machining centers. Control mode: Position loop, velocity loop, torque loop Feedback: Differential A/B/Z incremental encoder input per axis Communication: SERCOS fiber bus and analog ±10V command output options Onboard processor: Dedicated local processor for high-speed axis interpolation LED indicators: OK, READY, COM FAULT, AXIS ALARM diagnostic lights Hardware self-diagnosis: Encoder loss detection, tracking error monitoring, overrange signal check, overheat protection Programming software: PiCPro for motor parameter setup, axis gain tuning and fault diagnostics

Electrical ParametersControl power:24VDC Signal level:±10V analog command Power consumption:Max 12W

Mechanical & Structure:Mounting:Electrical cabinet rack mount Weight:2.3kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy MMC motion control module

System compatibilityM.1300.819 R00 belongs to Giddings & Lewis MMC motion control family. Compatible with PiC900 CPU, SERCOS fiber modules, G&L XSM/FSM series servo motors and DSA series servo drives. Widely used on G&L 70A horizontal boring mills and PMC CNC boring machines.

FunctionM.1300.819 R00 is MMC multi-axis motion control board manufactured by Giddings & Lewis. It receives trajectory instructions from PiC900 main CPU, executes axis closed-loop control, sends speed reference signals to servo amplifiers and collects encoder position feedback to calculate tracking error. It supports SERCOS fiber communication and analog command output for different servo drive configurations. It is a critical multi-axis motion spare part for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off 24VDC control power. Mount M.1300.819 R00 in electrical cabinet rack. Connect 24V control supply, shielded analog command cables, encoder feedback cables and SERCOS fiber cables. Configure motor data, axis resolution and servo gain in PiCPro software. Power on, verify SERCOS link and perform axis homing and motion test.

Interface24VDC control terminal,analog command terminal block,multi-channel encoder connectors,SERCOS fiber port,on-board OK / READY / COM FAULT / AXIS ALARM LED indicators for Giddings & Lewis M.1300.819 R00.

DiagnosticAxis tracking error alarm:Check encoder wiring, loose coupling or incorrect servo gain parameters. COM FAULT:SERCOS fiber damaged, fiber end contaminated or wrong network topology. AXIS ALARM:Encoder signal loss, analog signal overrange or axis mechanical overload.

Product BriefM.1300.819 R00 is Giddings & Lewis legacy MMC multi-axis motion control board,with SERCOS and analog command output for heavy CNC boring mill axis closed-loop control,discontinued CNC motion spare module.
