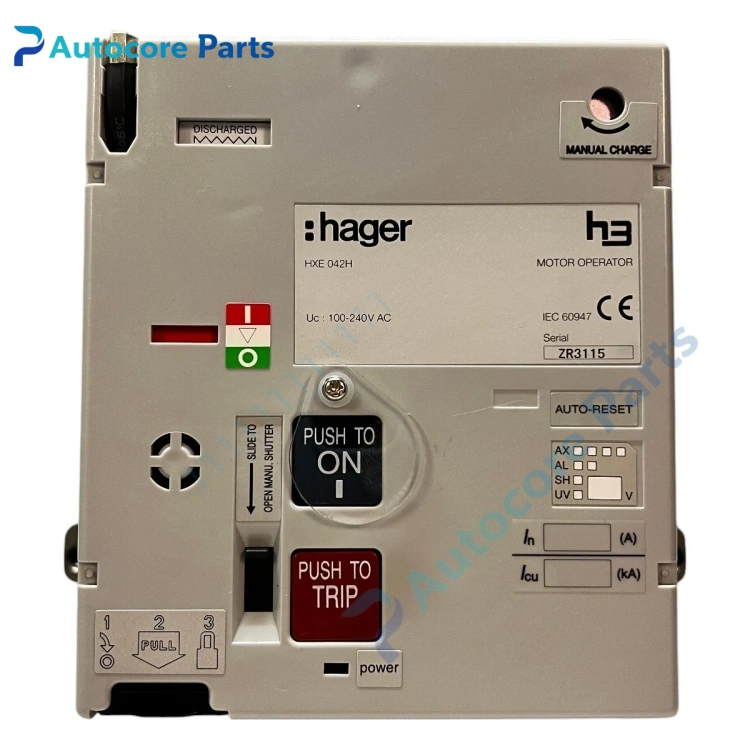

Hager HXE042H Motor Operator

Feature & Principle

It is an electric motor drive accessory for Hager H800-H1000 series molded case circuit breakers. After receiving the remote control signal, the internal motor drives the transmission mechanism to realize automatic closing and opening of the circuit breaker. It can also perform remote reset after tripping. It is used in distribution cabinets that require automatic control, avoiding frequent manual operation on site. Built-in limit switch for position feedback.

Specifications

Model: HXE042H Brand: Hager Applicable breaker: H800-H1000 Control voltage: 100~240VAC Frequency: 50 / 60 Hz Function: Remote ON / OFF / Reset Installation: Matched mounting on MCCB Application: Low voltage distribution panel, industrial power cabinet Certification: CE, UKCA

Components & Diagnostics

Drive motor, gear transmission set, limit switch, auxiliary contact, flame retardant housing. Common faults: motor no action, gear slipping, limit signal loss, remote control failure.

Product Brief

HXE042H motor operator, Hager MCCB electric drive spare widely used for power distribution cabinet overhaul and replacement.
