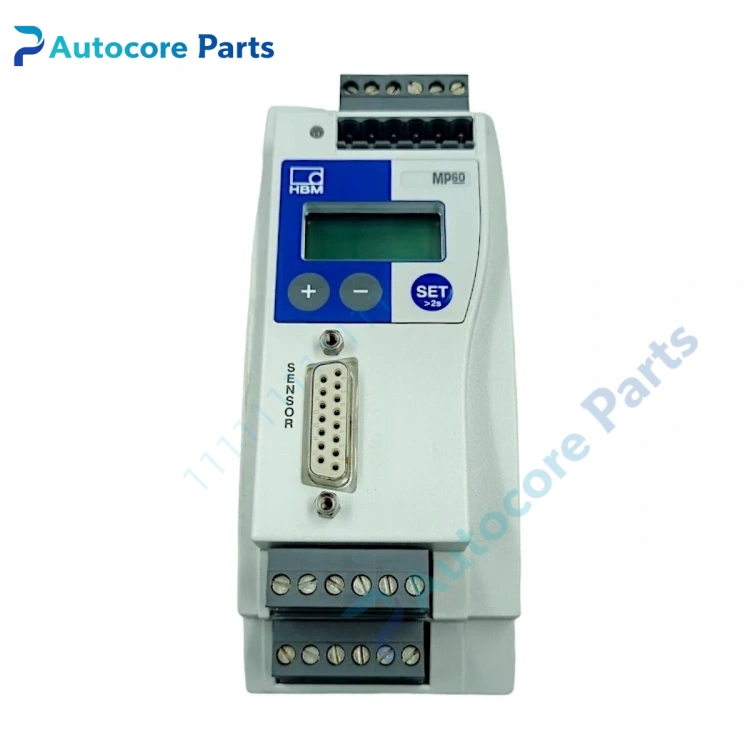

HBM MP60 Measurement Module

Feature & Principle

It is a single-channel industrial measurement module of HBM PME series. It is specially used to collect frequency signals from incremental encoders and HBM torque flanges. It converts frequency signals into digital values and supports direction recognition. It can output analog signals or communicate via CAN bus. It supports TEDS automatic sensor identification, local parameter setting through front panel keys and display, or configuration by PME Assistant software. Multiple modules can be synchronized for multi-channel test bench measurement. It is widely used in torque, speed and power test systems.

Specifications

Model: MP60 Brand: HBM Series: PME Accuracy class: 0.05 Measurement type: Frequency, incremental encoder, torque flange signal Communication: CAN bus, analog output Display & operation: Local LCD and keys Power supply: 24 VDC Mounting: DIN rail Application: Motor test bench, torque measurement, production line force monitoring, dynamometer system Certification: CE

Components & Diagnostics

Main measurement PCB, front LCD & keypad, CAN communication circuit, signal input terminal block, status LED indicators. Common faults: signal loss, communication offline, parameter loss, measurement drift, power supply damage.

Product Brief

MP60 measurement module, HBM PME high precision frequency and torque signal acquisition spare widely used for test bench overhaul and replacement.
