Pro-face PFXGP4603TAD Touch Panel HMI

Feature & Principle

It is a 12.1-inch resistive touch HMI of Pro-face GP4000 series. It realizes data visualization, parameter setting and manual operation for PLC and field equipment. It supports Ethernet, RS232C and RS422/485 multi-channel communication to connect various brands of controllers. Project programming and download are completed by GP-Pro EX software. It has SD card and USB interface for program backup and data logging. Front panel IP65 protection is suitable for workshop harsh environment.

Specifications

Model: PFXGP4603TAD Brand: Pro-face (Schneider) Display: 12.1 inch SVGA, 800×600, 65536 colors Touch type: Analog resistive touch Backlight: White LED Power supply: 24 VDC Interface: Ethernet, RS232C, RS422/485, USB, SD slot Front protection: IP65 Program software: GP-Pro EX Installation: Panel cutout mount Application: Packaging machinery, machine tool, water treatment, production line control cabinet Certification: CE, UL

Components & Diagnostics

LCD display assembly, resistive touch glass, main control board, communication chip, LED backlight circuit, status indicator. Common faults: touch drift, backlight failure, communication offline, program loss, power damage.

Product Brief

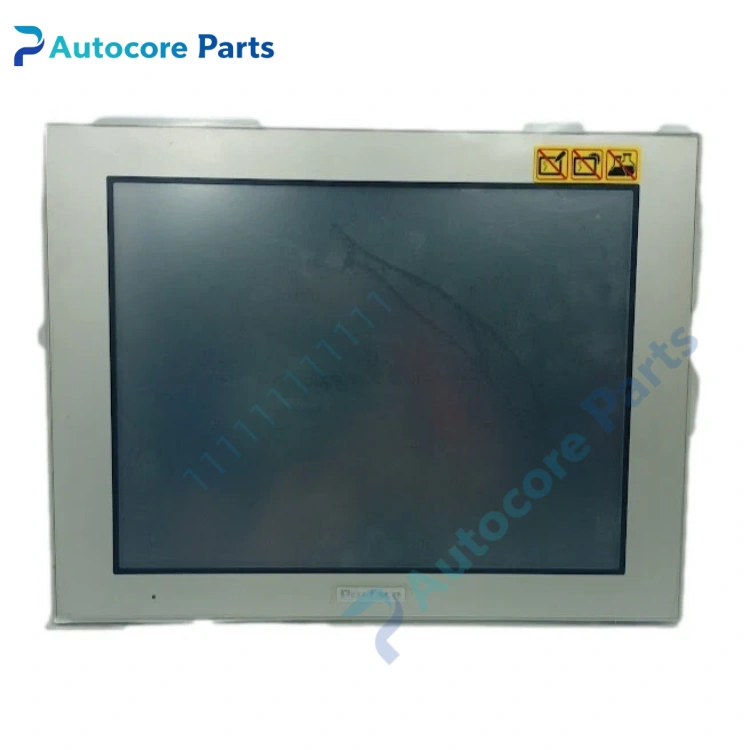

PFXGP4603TAD touch panel, Pro-face GP4000 industrial visualization spare widely used for automation equipment overhaul and replacement.
