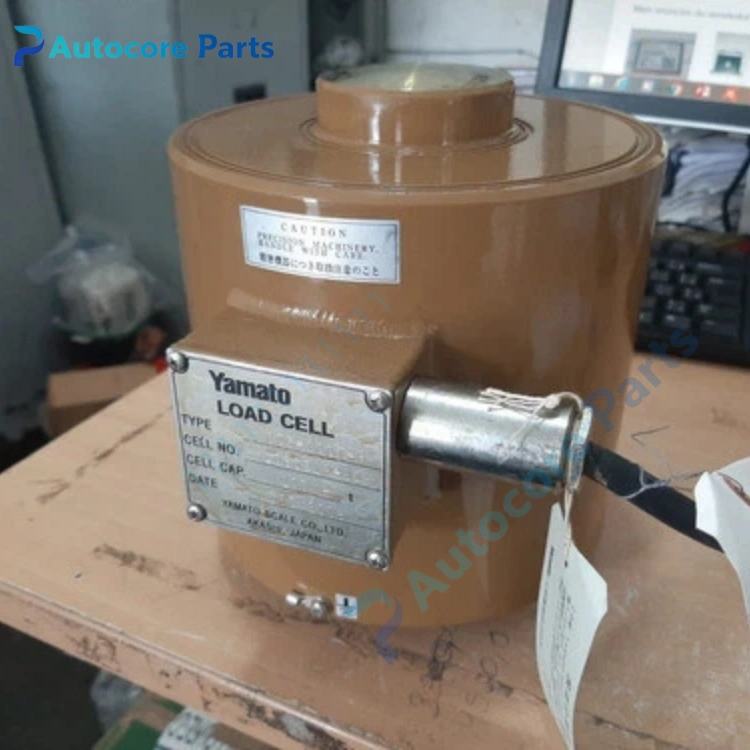

100ton-h Load Cell

Feature & Principle

It is a tension-compression type load cell with 100 ton rated capacity. Based on strain gauge principle, the internal strain foil deforms under force, and the resistance change is converted into standard analog signal. It can measure both tensile and compressive force. It has good overload resistance and stable performance, matched with weighing indicator or acquisition module. Widely used for hoisting force monitoring, material testing and heavy weighing occasions.

Specifications

Model: 100ton-h Type: Tension compression load cell Rated capacity: 100 ton Output: mV/V analog signal Excitation voltage: 10VDC Cable: Integrated shielded cable Protection: IP67 Application: Crane force monitoring, test bench, heavy hoisting, weighing system Certification: CE

Components & Diagnostics

Elastic body, strain gauge, compensation circuit, shielded cable, sealing housing. Common faults: zero drift, signal jump, cable breakage, overload damage, water ingress.

Product Brief

100ton-h load cell, 100 ton tension compression force measurement spare widely used for hoisting and test system overhaul and replacement.
