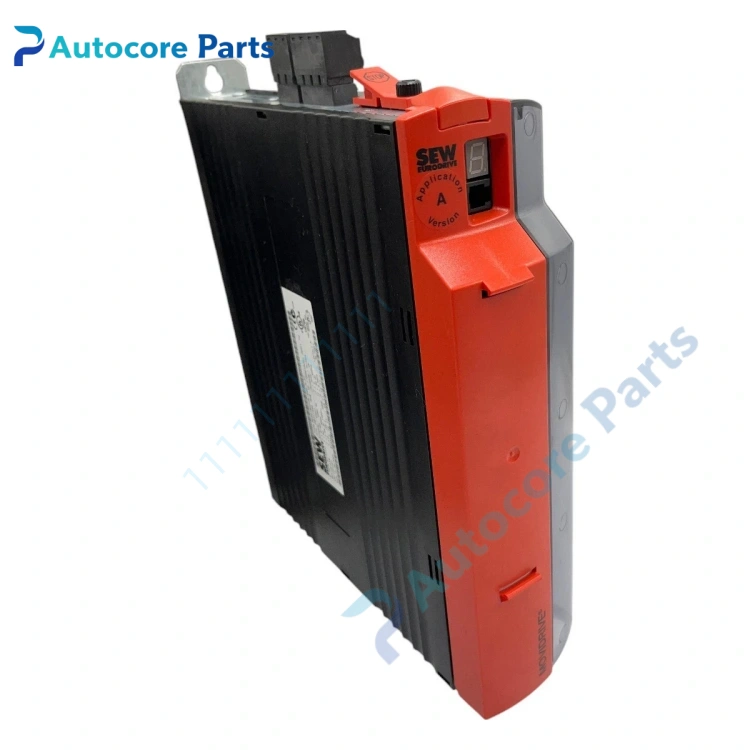

SEW MDX61B0005 Drive Inverter

Feature & Principle

It is a compact MOVIDRIVE B series application drive inverter from SEW. It supports asynchronous motor and synchronous servo motor control, adopts high-performance vector control algorithm. Built-in IPOS plus positioning function for independent sequence motion control. Integrated STO safe torque off safety function. It adopts modular design, can be equipped with PROFIBUS, PROFINET, EtherCAT and other communication option boards. Parameter setting and fault diagnosis are realized by MOVITOOLS MotionStudio software, widely used for automated production line positioning control.

Specifications

Model: MDX61B0005 Brand: SEW-EURODRIVE Series: MOVIDRIVE B Rated power: 0.55 kW Input: 3AC 380–500V, 50/60Hz Control mode: VFC, CFC, servo control Built-in function: IPOS plus positioning, STO Communication: Optional fieldbus module Protection class: IP20 Cooling: Temperature controlled fan cooling Application: Packaging machinery, conveyor, material handling, small servo positioning system Certification: CE, UL

Components & Diagnostics

IGBT power module, main control board, cooling fan, terminal block, status LED, optional communication card slot. Common faults: fan failure, overcurrent alarm, communication handshake failure, overheat trip, IGBT damage.

Product Brief

MDX61B0005 drive inverter, SEW MOVIDRIVE B compact servo and positioning drive spare widely used for automation equipment overhaul and replacement.
