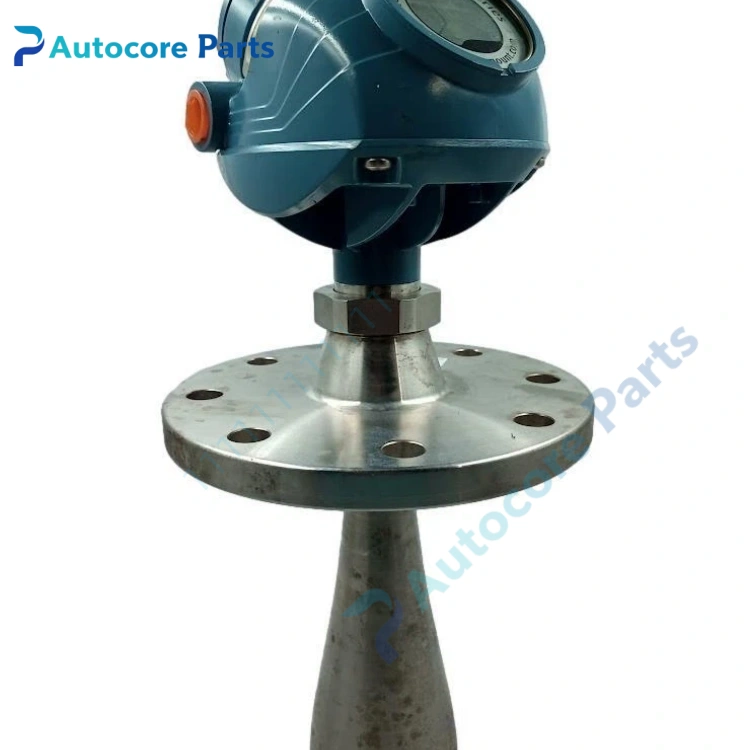

Rosemount 5402AH1NA4SPVJAM1Q4 Radar Level Transmitter

Feature & Principle

It belongs to Rosemount 5400 series two-wire FMCW radar level transmitter. It emits microwave pulses to the liquid surface, calculates distance by measuring time-of-flight of reflected signal, and converts to liquid level value. Non-contact design avoids medium corrosion and fouling impact. It supports HART communication for remote configuration and device diagnostics, suitable for most liquid media. Built-in echo processing algorithm suppresses tank wall disturbance and foam interference.

Specifications

Model: 5402AH1NA4SPVJAM1Q4 Brand: Rosemount (Emerson) Series: 5400 Measurement principle: FMCW radar Output: 4-20mA, HART Power supply: Two-wire 24VDC Antenna type: Horn antenna Ingress protection: IP66/IP67 Certification: ATEX, IECEx, SIL2 optional Application: Oil, chemical, water treatment storage tank liquid level continuous measurement

Components & Diagnostics

Radar electronic module, horn antenna, process flange, LCD display, terminal wiring cavity. Common faults: signal loss, false echo, lens fouling, HART communication failure, zero drift.

Product Brief

5402AH1NA4SPVJAM1Q4 radar level transmitter, Rosemount non-contact liquid level measuring spare widely used for storage tank instrument overhaul and replacement.
