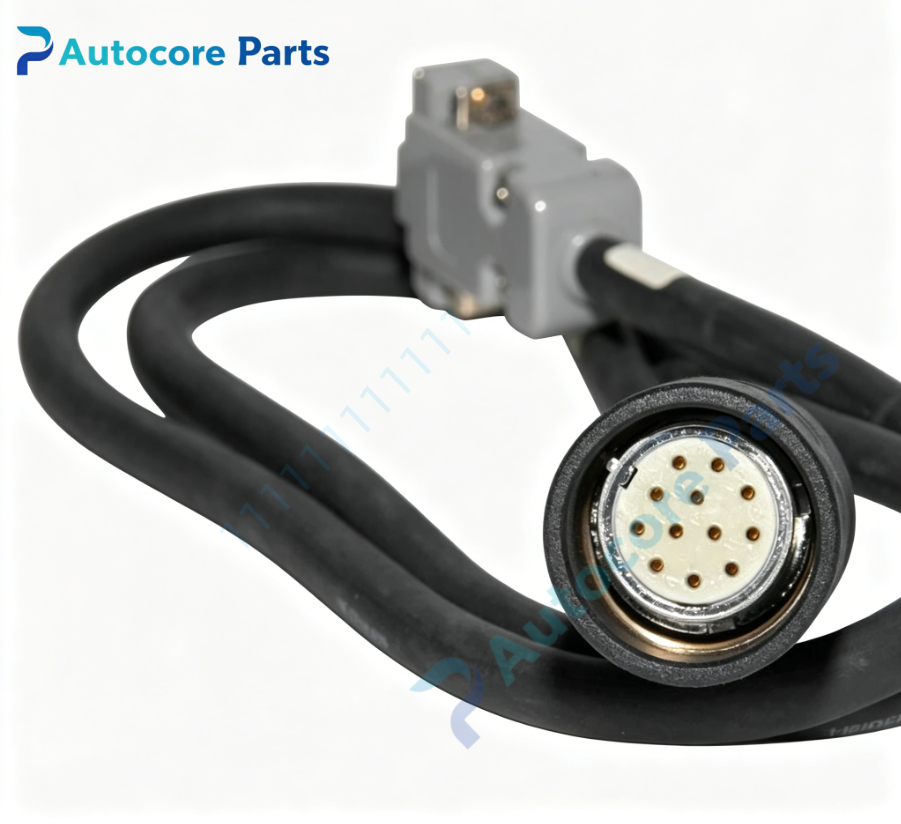

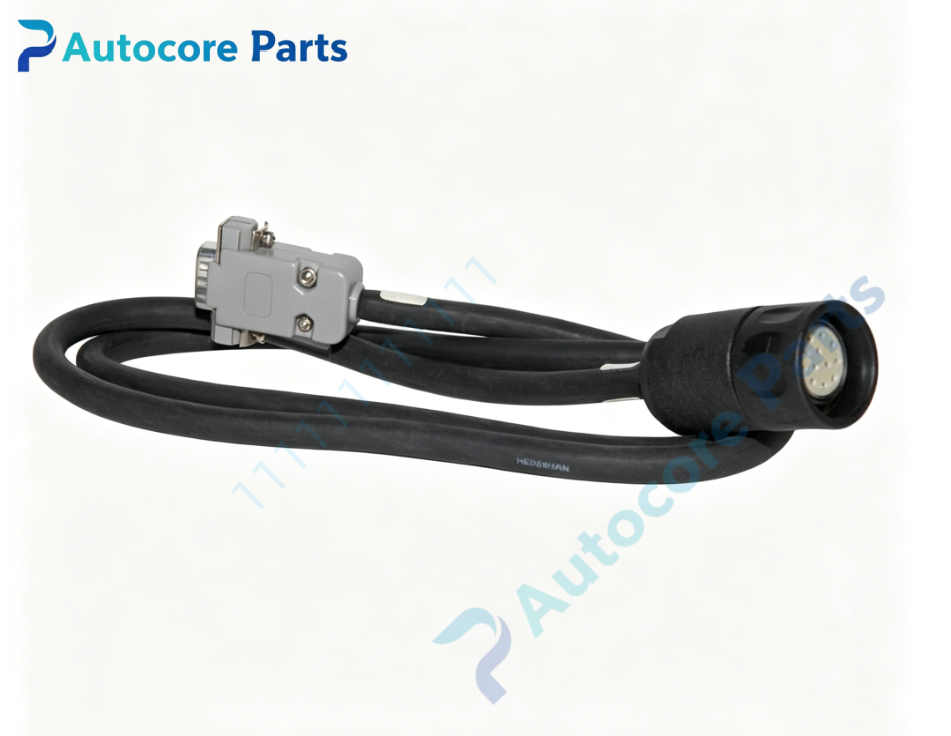

HEIDENHAIN 262 010-01 Encoder Signal Cable

Technical Specifications

Model：262 010-01 Brand：HEIDENHAIN Product Type: Prefabricated multi-core shielded encoder signal cable assembly

Module Feature

Function: HEIDENHAIN 262 010-01 factory-terminated shielded encoder cable. It transmits 5VDC power and 1Vpp sine/cosine incremental or EnDat absolute position signals between HEIDENHAIN encoders and interpolation or servo control units. Full copper braid shielding suppresses electromagnetic interference, ensuring stable high-precision position transmission for feed axes, spindle and rotary table closed-loop control on heavy horizontal boring mills and multi-axis machining centers.

Cable type: Multi-core shielded PUR signal cable Matched Device: HEIDENHAIN ERN, ROQ, ECN rotary encoders and LIC, LIDA, LIP linear read heads with M23 interface Onboard components: Tinned copper conductors, PE insulation, full copper braid shielding, molded M23 connectors on both ends, strain relief protection

LED indicators: Not applicable (cable assembly without LED)

Hardware self-diagnosis

Continuity test, insulation resistance test, shield continuity inspection

Programming software

No programming software required

Electrical Parameters

Supply voltage rating: 300V

Mechanical & Structure

Mounting: Routed inside machine cabinet and machine frame Outer jacket: Oil-resistant, coolant-resistant, flame-retardant PUR jacket Bending radius: ≥10 × cable outer diameter

Environmental

Operating temperature: -20℃ ~ +80℃ Ambient humidity: 5~85% non-condensing Certification: CE Status: HEIDENHAIN standard pre-assembled encoder signal cable

System compatibility

Compatibility description: 262 010-01 belongs to HEIDENHAIN encoder accessory family. Compatible with HEIDENHAIN incremental 1Vpp and EnDat absolute encoders equipped with M23 connectors. Suitable for Fives Giddings & Lewis PIC900 CNC heavy boring mill system.

Function

Function description: 262 010-01 is prefabricated shielded encoder cable manufactured by HEIDENHAIN. It connects linear scale scanning head or rotary encoder to interpolation unit or servo drive, delivering DC power and position feedback signals. Copper braid shielding protects weak measuring signals from electromagnetic noise generated by high-power servo motors. PUR outer jacket resists cutting fluid, oil mist and metal chips in machine workshop environment. It is encoder feedback wiring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder 5VDC power. Disconnect old cable connectors at encoder and electronics end. Route 262 010-01 separately from high-current servo power cables. Secure cable clamps and connectors. Check insulation resistance and shield grounding. Restore power, verify encoder communication and axis position stability.

Interface

Interface list: M23 flange connectors on both ends, 5VDC power and signal terminals for HEIDENHAIN 262 010-01.

Diagnostic

Troubleshooting: No encoder signal: Check 5VDC supply, internal wire breakage or connector pin damage. Intermittent position fault: Poor shield grounding, connector corrosion or cable insulation aging. Signal amplitude drop: Excessive bending damage to internal conductors or shield fracture.

Product Brief

Brief description: 262 010-01 HEIDENHAIN shielded prefabricated encoder signal cable assembly,for transmitting power and position feedback signals between HEIDENHAIN encoders and CNC electronics on heavy CNC boring mills,encoder wiring spare.
