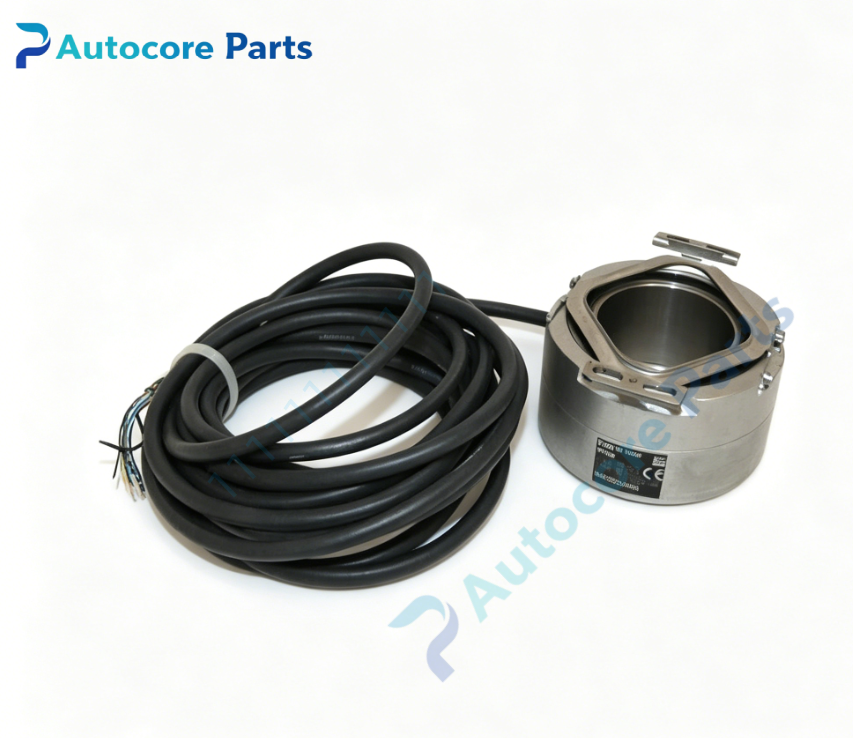

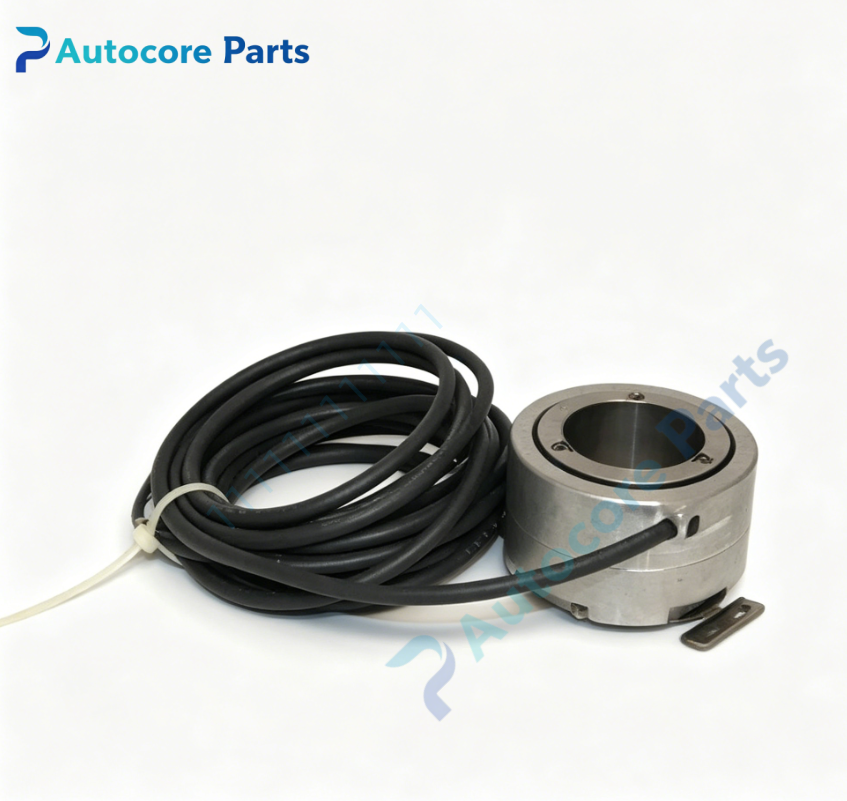

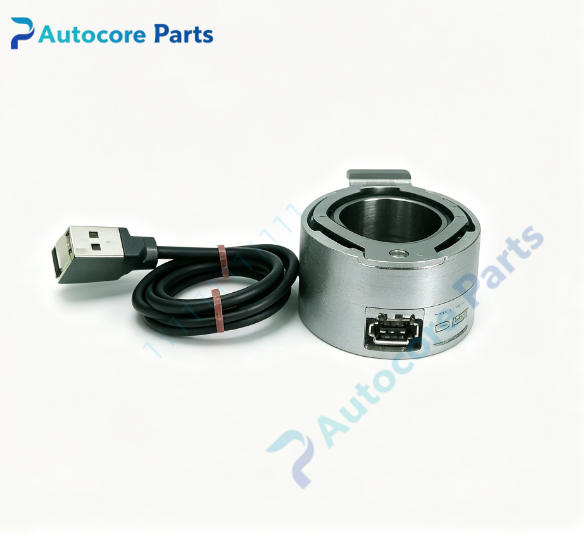

HEIDENHAIN ECN113 Absolute Rotary Encoder

Technical Specifications

Model： ECN113 2048 01-58

Brand： HEIDENHAIN

Product Type: Bearing-integrated hollow shaft absolute rotary encoder for CNC spindle

Module Feature:

Function: HEIDENHAIN ECN113 absolute rotary encoder. It measures spindle angular position and rotational speed, supports singleturn absolute position reading via EnDat01 serial interface. Integrated stator coupling for direct mounting on spindle shaft. No homing required after power cycle. Used for spindle orientation and closed-loop control on heavy horizontal boring mills and multi-axis machining centers.

Measuring principle: Absolute optical scanning Incremental lines: 2048 lines per revolution Interface: EnDat 01 Hollow shaft with integrated stator coupling Onboard components: Metallic grating disc, optical scanning assembly, precision bearing, aluminum housing, cable connector

LED indicators: POWER, COM, FAULT diagnostic lights

Hardware self-diagnosis: Encoder internal temperature monitoring, signal amplitude checking, EnDat communication diagnosis

Programming software: HEIDENHAIN diagnostic software for encoder parameter readout and fault log checking

Electrical Parameters

Supply voltage: 3.6V ~14V DC

Power consumption: Max 2.8W

Mechanical & Structure:

Mounting: Hollow shaft mounted directly on spindle with stator coupling Protection class: IP64 (housing)

Environmental:

Operating temperature: -20℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: HEIDENHAIN spindle absolute rotary encoder

System compatibility

Compatibility description: ECN113 belongs to HEIDENHAIN ECN series absolute encoder family, EnDat01 interface. Compatible with HEIDENHAIN CC series control units and Fives Giddings & Lewis PIC900 CNC heavy boring mill spindle axis.

Function

Function description: ECN113 is absolute rotary encoder manufactured by HEIDENHAIN. Integrated stator coupling removes need for separate flexible coupling and minimizes mechanical backlash. It outputs absolute angular position data over EnDat bus immediately after power-up without reference homing. Robust aluminum housing protects optical components from vibration, coolant mist and metal chips. It is high precision spindle position measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder DC power. Install encoder onto hollow spindle shaft and secure clamping of stator coupling. Connect shielded EnDat encoder cable to servo control unit. Restore power, verify LED indicators, run encoder diagnostic and test spindle orientation.

Interface

Interface list: Multi-core molded cable connector, DC power and EnDat signal terminals,on-board POWER / COM / FAULT LED indicators for HEIDENHAIN ECN113 2048 01-58.

Diagnostic

Troubleshooting: No encoder communication: Check DC supply voltage, cable breakage or connector pin damage. FAULT LED lit: EnDat communication timeout, low signal amplitude, over-temperature or shaft misalignment. Spindle orientation error: Shaft runout, coupling slip or contamination on optical grating.

Product Brief

Brief description: ECN113 2048 01-58 HEIDENHAIN hollow-shaft absolute rotary encoder with EnDat01 interface,provides absolute spindle angular position and speed feedback for heavy CNC boring mill spindle closed-loop control,spindle absolute encoder spare.
