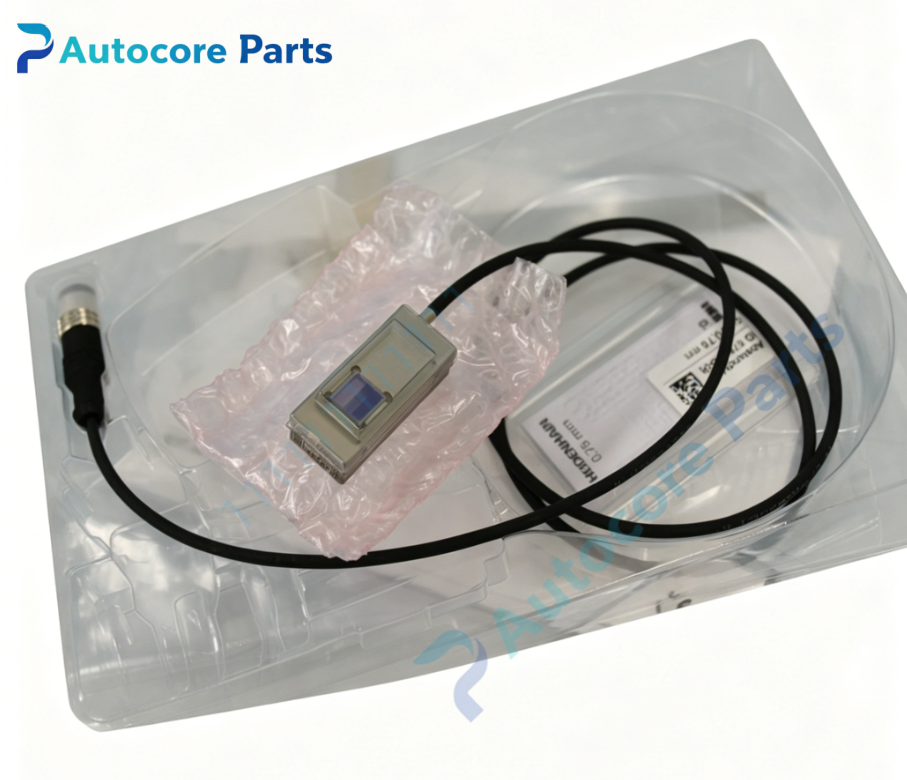

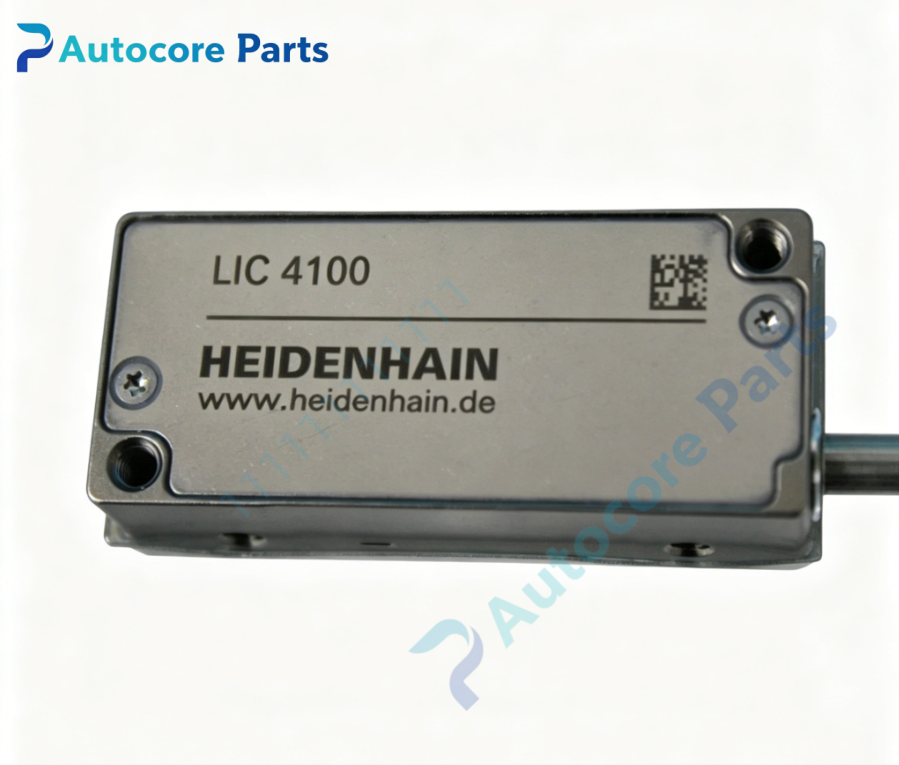

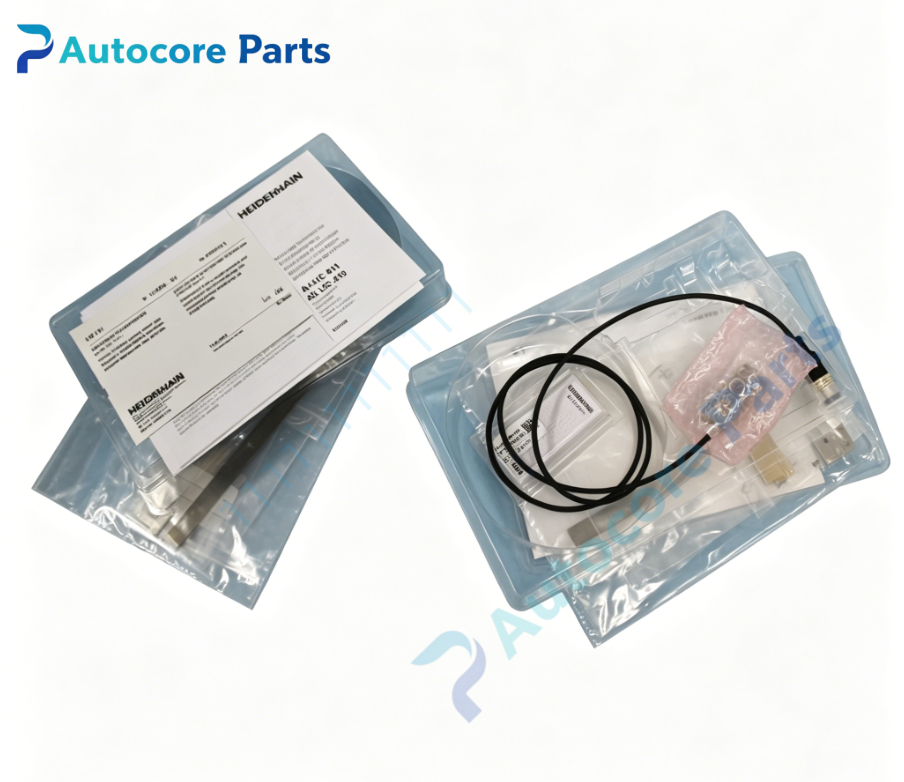

HEIDENHAIN LIC4100 Absolute Linear Encoder

Technical Specifications

Model： LIC4100

Brand： HEIDENHAIN

Product Type: Exposed non-enclosed absolute linear encoder for high dynamic linear feed axis

Module Feature:

Function: HEIDENHAIN LIC4100 exposed absolute linear encoder. It provides absolute linear position and speed measurement directly after power-up without reference homing. Supports ultra-fine resolution down to 1 nm and traversing speed up to 600 m/min. Multiple scale substrate options including steel tape, glass or glass ceramic. Optional high-vacuum and functional safety versions available. Widely used on heavy horizontal boring mills, gantry machines and high-speed direct-drive machining centers.

Measuring principle: Absolute optical scanning Max measuring length: 28 m Min resolution: 1 nm Max traversing speed: 600 m/min Encoder Interface: EnDat, Fanuc, Mitsubishi, Panasonic, Yaskawa Onboard components: METALLUR absolute grating scale tape, scanning read head, HSP 1.0 signal processing ASIC, metal read head housing, M12 / D-sub connector

LED indicators: POWER, COM, FAULT diagnostic lights

Hardware self-diagnosis: Signal amplitude monitoring, contamination detection, internal temperature check

Programming software: HEIDENHAIN diagnostic software for signal quality check and parameter configuration

Electrical Parameters

Supply voltage: 3.6VDC ~14VDC

Power consumption: Max 0.85W

Mechanical & Structure:

Mounting: Scale strip fixed to machine bed, read head mounted on moving slide carriage Protection class: IP67 (read head)

Environmental:

Operating temperature: -10℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: HEIDENHAIN high-performance exposed absolute linear encoder

System compatibility

Compatibility description: LIC4100 belongs to HEIDENHAIN LIC series exposed linear encoder family. Compatible with HEIDENHAIN CC series control units and third-party CNC systems. Suitable for Fives Giddings & Lewis PIC900 CNC heavy boring mill feed axis.

Function

Function description: LIC4100 is exposed absolute linear encoder manufactured by HEIDENHAIN. The non-enclosed grating strip design enables ultra-high accuracy and large measuring travel. The HSP1.0 ASIC improves tolerance to dust and minor contamination. Absolute position value is available immediately after power on, eliminating reference run and preventing axis collision on startup. Optional zero-expansion glass ceramic scale minimizes thermal drift. It is high precision linear position measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder DC power. Mount scale strip parallel to machine travel axis. Install scanning head on slide carriage, adjust scanning gap and parallelism. Connect shielded encoder cable to CNC or servo control unit. Restore power, verify LED indicators, run encoder signal test and axis positioning calibration.

Interface

Interface list: M12 or D-sub communication connector, DC power terminal,on-board POWER / COM / FAULT LED indicators for HEIDENHAIN LIC4100.

Diagnostic

Troubleshooting: No position reading: Check 3.6~14V supply voltage, cable breakage or connector pin damage. FAULT LED lit: Insufficient signal amplitude, contamination on grating, read head misalignment or hardware fault. Unstable position: Vibration, mounting parallelism error or grating surface contamination.

Product Brief

Brief description: LIC4100 HEIDENHAIN exposed absolute linear encoder with measuring length up to 28m and 1nm resolution,provides linear position feedback for heavy CNC boring mill high-speed feed axis closed-loop control,linear scale spare.
