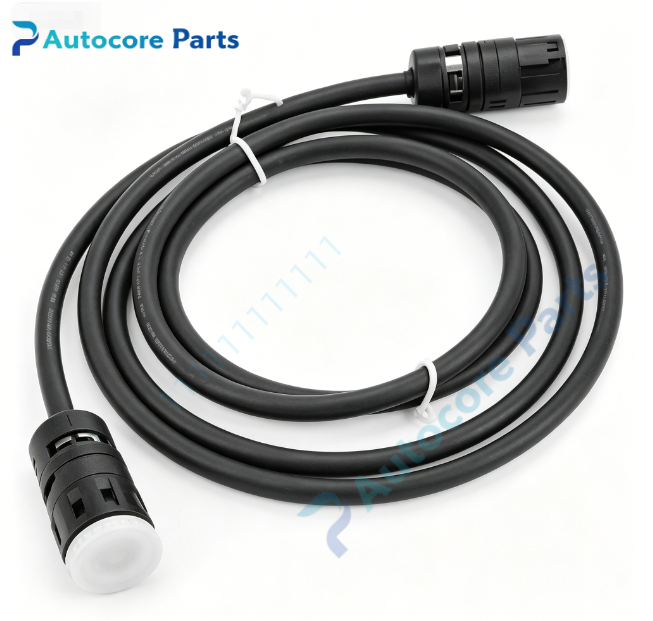

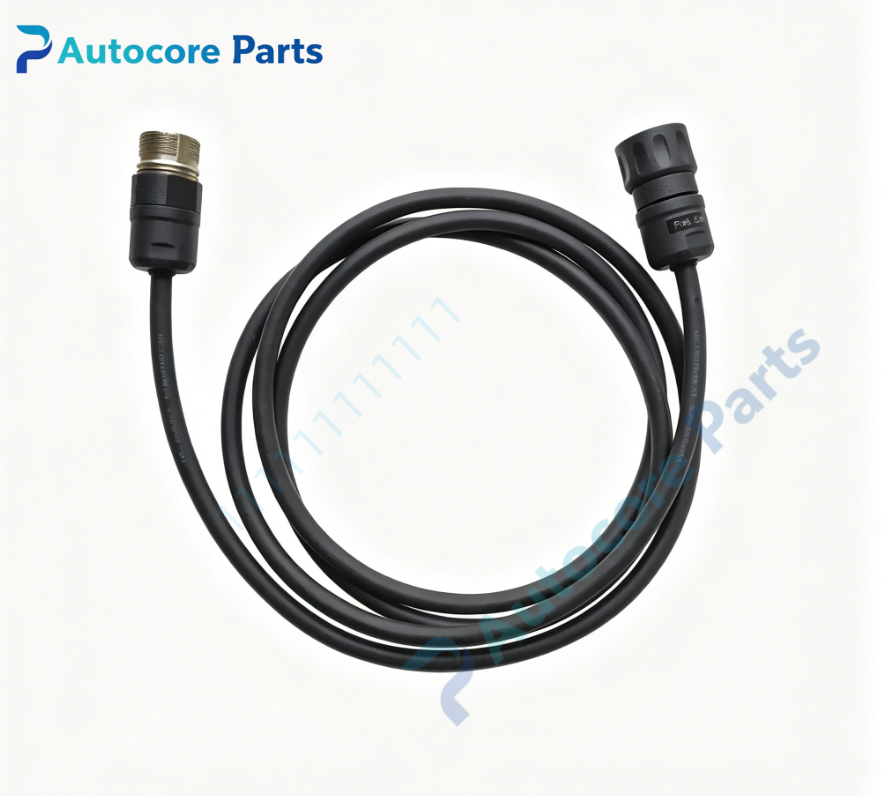

HEIDENHAIN 323897-01 Encoder Signal Cable

Technical Specifications

Model： 323897-01

Brand： HEIDENHAIN

Product Type: Prefabricated multi-core shielded encoder signal cable assembly

Module Feature:

Function: HEIDENHAIN 323897-01 factory finished shielded encoder cable. It supplies 5VDC power and transmits sine/cosine incremental or EnDat absolute position signals between HEIDENHAIN encoders and interpolation or servo control units. Full copper braid shielding suppresses electromagnetic interference, guarantees stable high-precision position transmission for closed-loop axis control on heavy horizontal boring mills and large machining centers.

Cable type: Multi-core shielded PUR signal cable Matched Device: HEIDENHAIN linear read heads and rotary encoders equipped with M23 interface Onboard components: Tinned copper conductors, PE insulation, overall copper braid shielding, molded M23 connectors on both ends, strain relief protection

LED indicators: Not applicable (Cable assembly)

Hardware self-diagnosis: Continuity test, insulation resistance test, shield continuity inspection

Programming software: No programming required

Electrical Parameters

Voltage rating: 300V

Mechanical & Structure:

Mounting: Routed inside machine cabinet and machine frame Outer jacket: Oil-resistant, coolant-resistant, flame-retardant PUR jacket Bending radius: ≥10 × cable outer diameter

Environmental:

Operating temperature: -20℃ ~ +80℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: HEIDENHAIN standard prefabricated encoder cable

System compatibility

Compatibility description: 323897-01 belongs to HEIDENHAIN encoder accessory family. Compatible with HEIDENHAIN incremental 1Vpp and EnDat absolute encoders with M23 connectors. Suitable for Fives Giddings & Lewis PIC900 CNC heavy boring mill system.

Function

Function description: 323897-01 is prefabricated shielded encoder cable manufactured by HEIDENHAIN. It connects linear scale read head or rotary encoder to interpolation unit or servo drive, delivering DC power and position feedback signals. Copper braid shielding isolates weak measuring signals from electromagnetic noise generated by high-power servo motors. PUR outer jacket resists cutting coolant, oil mist and metal chips in machine workshop environment. It is encoder feedback wiring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder and CNC controller 5VDC power. Disconnect old cable connectors at encoder and electronics end. Route 323897-01 separately from high-current servo power cables. Secure cable clamps and connectors. Check insulation resistance and shield grounding. Restore power, verify encoder communication and axis position stability.

Interface

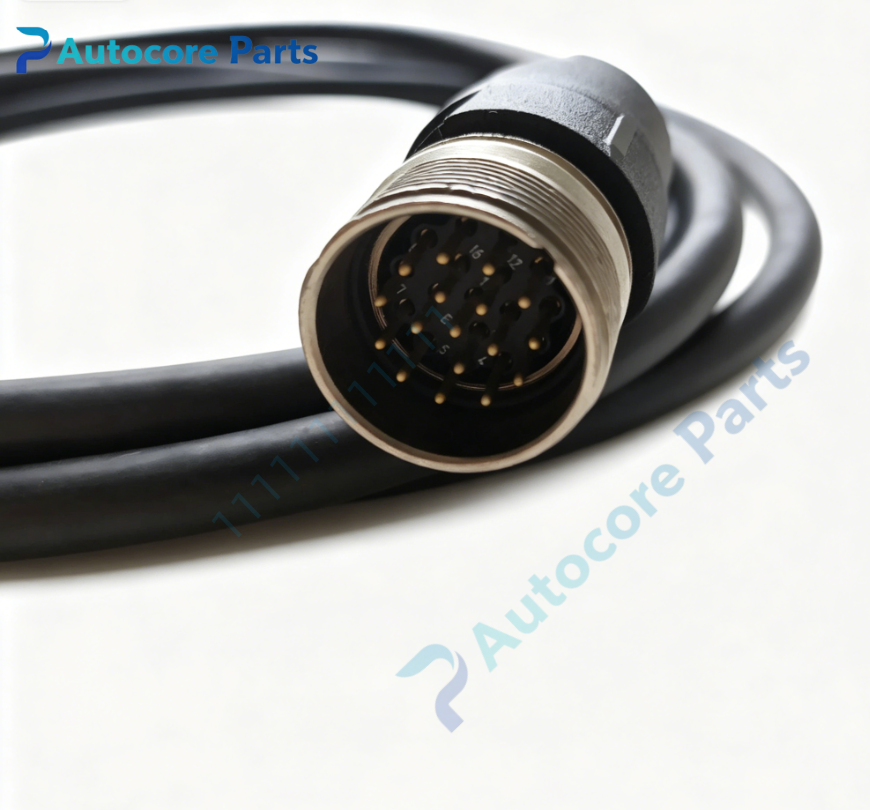

Interface list: M23 flange connectors on both ends, 5VDC power and signal terminals for HEIDENHAIN 323897-01.

Diagnostic

Troubleshooting: No encoder signal: Check 5VDC supply, internal wire breakage or connector pin damage. Intermittent position fault: Poor shield grounding, connector corrosion or cable insulation aging. Signal amplitude drop: Excessive bending damage to internal conductors or shield fracture.

Product Brief

Brief description: 323897-01 is HEIDENHAIN shielded prefabricated encoder signal cable assembly,for transmitting power and position feedback signals between HEIDENHAIN encoders and CNC electronics on heavy CNC boring mills,encoder wiring spare.
