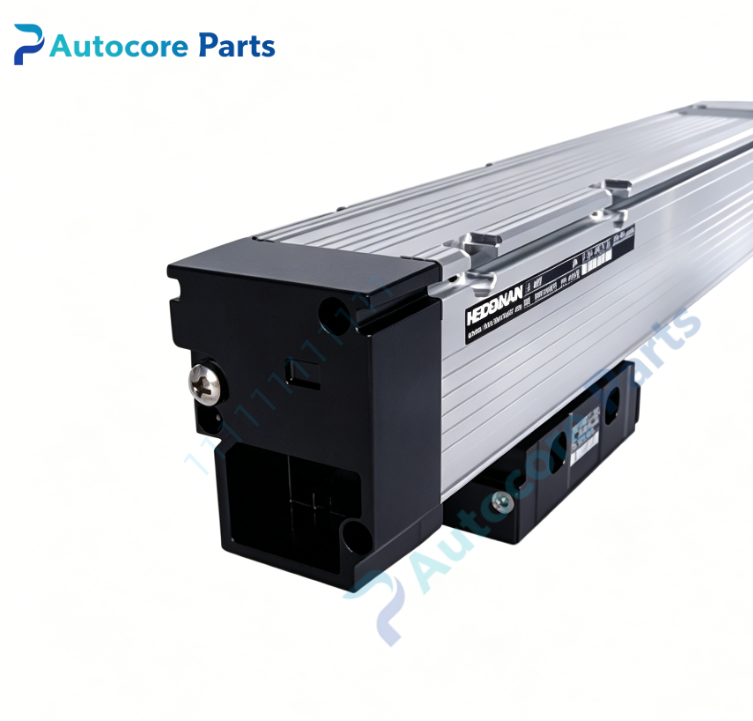

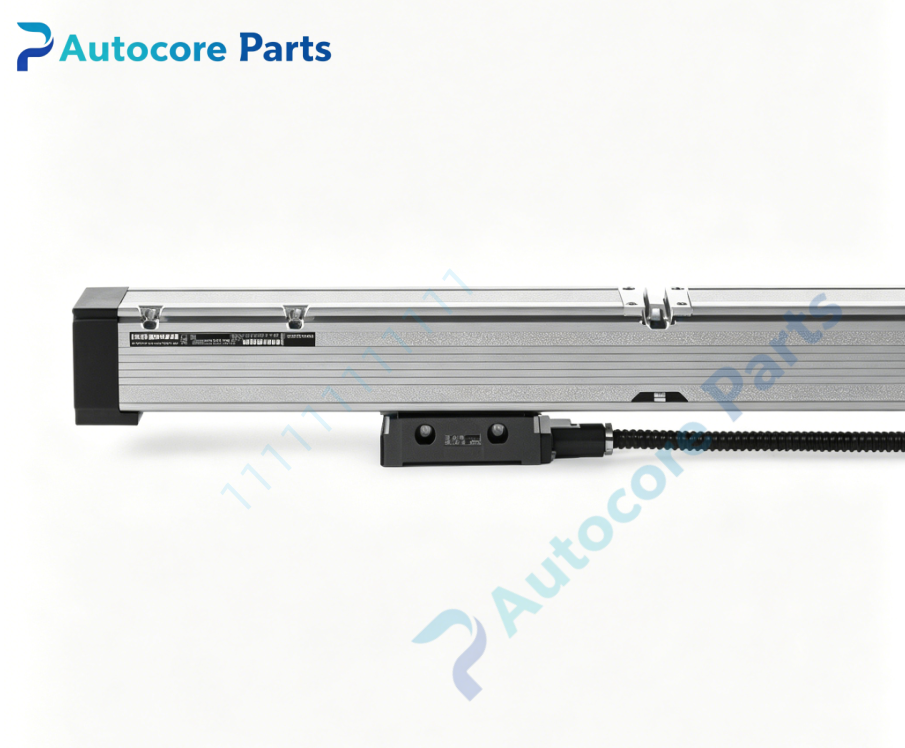

HEIDENHAIN AE LB 382C Scanning Head

Technical Specifications

Model： AE LB 382C

Brand： HEIDENHAIN

Product Type: Optical scanning head for LB382C large-size sealed incremental linear encoder

Module Feature:

Function: HEIDENHAIN AE LB 382C optical scanning unit. It scans the steel scale tape of LB382C long travel linear encoder, outputs 1Vpp sine/cosine incremental signals. Used for long travel axis closed-loop position measurement on heavy horizontal boring mills and large gantry machining centers.

Measuring principle: Incremental single-field scanning Output Signal: 1 Vpp sinusoidal signal Grating period: 40 μm Onboard components: Optical emitter & receiver, signal pre-amplifier, metal housing, 14-pin M23 flange connector

LED indicators: POWER, SIG, FAULT diagnostic lights

Hardware self-diagnosis: Scanning signal amplitude monitoring, optical signal integrity check

Programming software: HEIDENHAIN diagnostic software for signal amplitude inspection

Electrical Parameters

Supply voltage: 5VDC ±5%

Power consumption: Max 2.8W

Mechanical & Structure:

Mounting: Installed on machine slide carriage, matched with LB382C scale housing Protection class: IP64 (read head assembly)

Environmental:

Operating temperature: 0℃ ~ +70℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer legacy scanning head for LB382C linear encoder

System compatibility

Compatibility description: AE LB 382C belongs to HEIDENHAIN LB series linear encoder family. Exclusively matched with LB382C large length sealed linear scale. Compatible with HEIDENHAIN EXE interpolation units and Fives Giddings & Lewis PIC900 CNC system, widely used on heavy boring mills and gantry machines.

Function

Function description: AE LB 382C is optical read head manufactured by HEIDENHAIN. It reads the incremental grating on LB382C steel measuring tape and generates sine/cosine analog signals. Designed for very long machine axis travels up to 30 meters. Metal housing protects internal optical components from vibration, dust and oil mist. It needs homing after power-up to capture reference mark for absolute axis reference. It is legacy linear scale scanning head spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder 5VDC power. Mount AE LB382C read head on slide carriage, adjust air gap and parallelism against LB382C scale housing. Connect shielded encoder cable to interpolation unit or CNC axis board. Restore power, verify POWER and SIG LED indicators, run encoder diagnostic and check position counting.

Interface

Interface list: 14-pin M23 flange connector, 5VDC power terminal,on-board POWER / SIG / FAULT LED indicators for HEIDENHAIN AE LB 382C.

Diagnostic

Troubleshooting: No position counting: Check 5VDC power supply, cable breakage or connector pin damage. FAULT LED lit: Low signal amplitude, contamination on steel scale or misalignment of scanning head. Intermittent position jump: Coolant/chip contamination, cable shielding damage or optical component aging.

Product Brief

Brief description: AE LB 382C is HEIDENHAIN legacy scanning head for LB382C large-length incremental linear encoder,outputs 1Vpp sine/cosine signals for long-travel axis closed-loop control on heavy CNC boring mills,linear scale read head spare.
