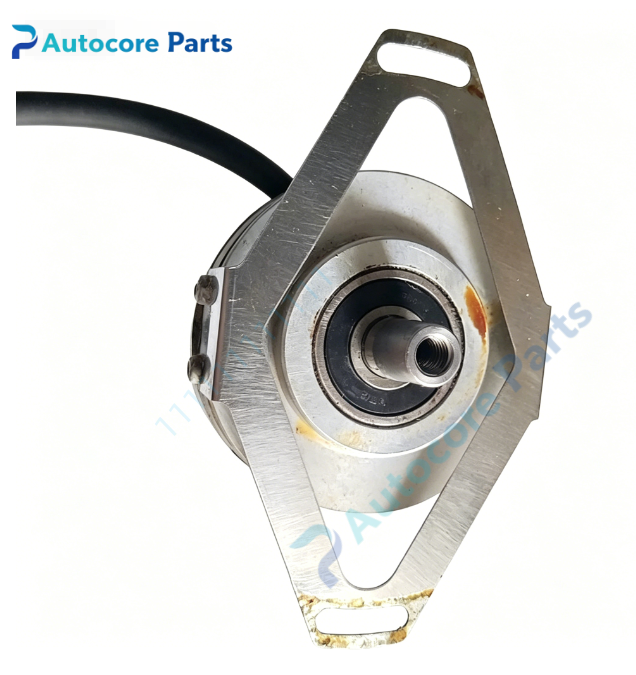

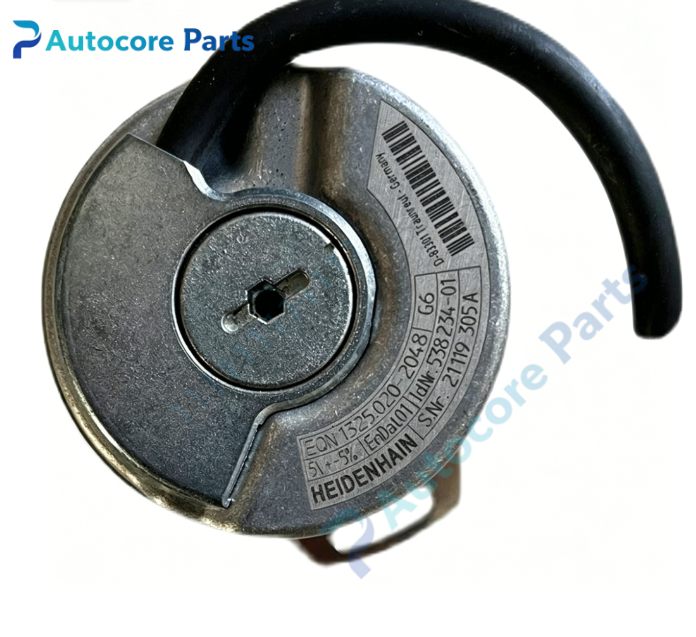

HEIDENHAIN EQN1325.020-20 Absolute Rotary Encoder

Technical Specifications

Model：EQN1325.020-20 Brand：HEIDENHAIN Product Type: Bearing-integrated multiturn absolute optical rotary encoder for CNC spindle and servo motor

Module Feature

Function: HEIDENHAIN EQN1325.020-20 is a multiturn absolute rotary encoder with built-in precision bearing. It outputs absolute angular position data immediately after power-up without axis homing. It adopts 1:10 tapered shaft with 9.25mm functional diameter for direct mounting onto spindle. It supplies serial absolute EnDat01 data plus 1Vpp sine/cosine incremental signals. Max mechanical rotational speed reaches 12000 rpm. Widely used on heavy horizontal boring mills, high-speed machining centers and spindle closed-loop control systems.

Measuring principle: Absolute optical scanning Shaft specification: Tapered shaft 9.25mm, taper ratio 1:10 Encoder Interface: EnDat 01 Onboard components: Optical grating disc, scanning assembly, precision bearing, metal housing, 12-pin M23 connector

LED indicators: POWER, COM, FAULT diagnostic lights

Hardware self-diagnosis

Internal temperature monitoring, signal amplitude detection, EnDat communication fault diagnosis

Programming software

HEIDENHAIN diagnostic software for encoder parameter reading and fault log retrieval

Electrical Parameters

Supply voltage: 3.6VDC ~14VDC Power consumption: Max 0.8W

Mechanical & Structure

Mounting: Tapered shaft fitted directly onto spindle rotor Protection class: IP40 (housing)

Environmental

Operating temperature: -40℃ ~ +115℃ Ambient humidity: 5~85% non-condensing Certification: CE Status: HEIDENHAIN heavy-duty multiturn spindle absolute rotary encoder

System compatibility

Compatibility description: EQN1325 series belongs to HEIDENHAIN EQN1300 encoder family with EnDat01 interface. Compatible with HEIDENHAIN CC series control units. Suitable for Fives Giddings & Lewis PIC900 CNC heavy boring mill spindle axis.

Function

Function description: EQN1325.020-20 is multiturn absolute rotary encoder manufactured by HEIDENHAIN. The 1:10 tapered shaft connection reduces mechanical backlash and ensures stable transmission. Multiturn design can record multiple revolutions, absolute position data available instantly after power on. Built-in bearing and stator coupling can compensate axial installation tolerance. Robust mechanical construction withstands high spindle speed and workshop vibration. It is high precision spindle measuring spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off encoder DC power. Install encoder onto tapered spindle shaft and fasten locking assembly. Connect shielded EnDat encoder cable to servo control unit. Restore power, verify LED indicators, run encoder signal test and spindle orientation calibration.

Interface

Interface list: M23 12-pin flange connector, DC power and EnDat signal terminals,on-board POWER / COM / FAULT LED indicators for HEIDENHAIN EQN1325.020-20.

Diagnostic

Troubleshooting: No encoder communication: Check 3.6~14V DC supply, cable breakage or connector pin damage. FAULT LED lit: EnDat communication timeout, low signal amplitude, over-temperature or shaft misalignment. Spindle orientation error: Shaft runout, loose taper locking or contamination on optical grating.

Product Brief

Brief description: EQN1325.020-20 HEIDENHAIN multiturn absolute rotary encoder with 1:10 tapered shaft and EnDat01 interface,provides absolute spindle angular position and speed feedback for heavy CNC boring mill spindle closed-loop control,spindle encoder spare.
