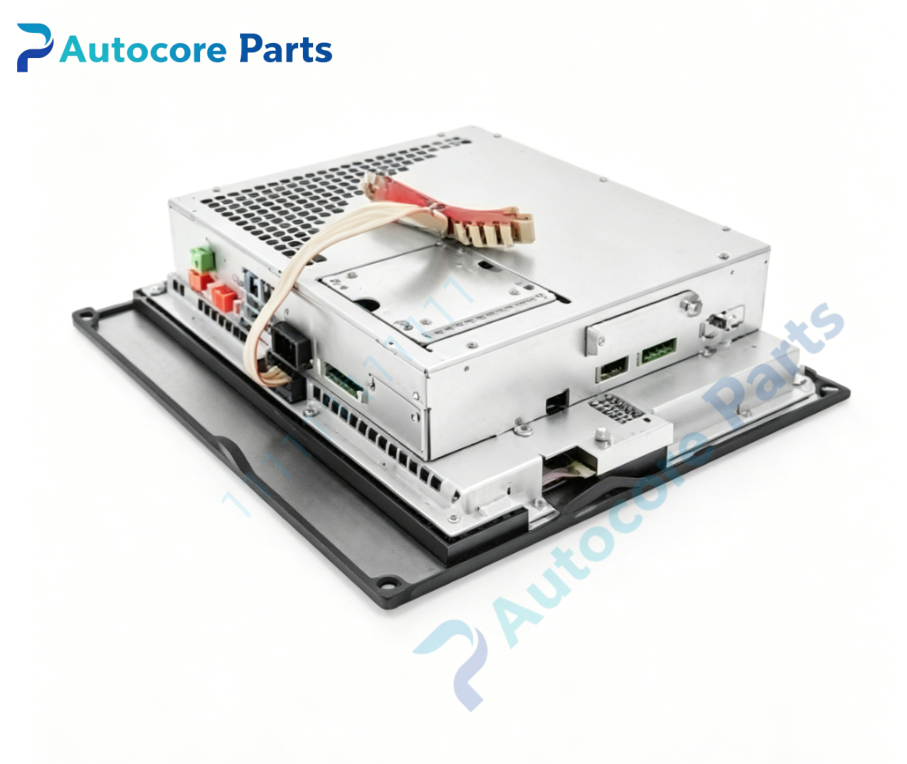

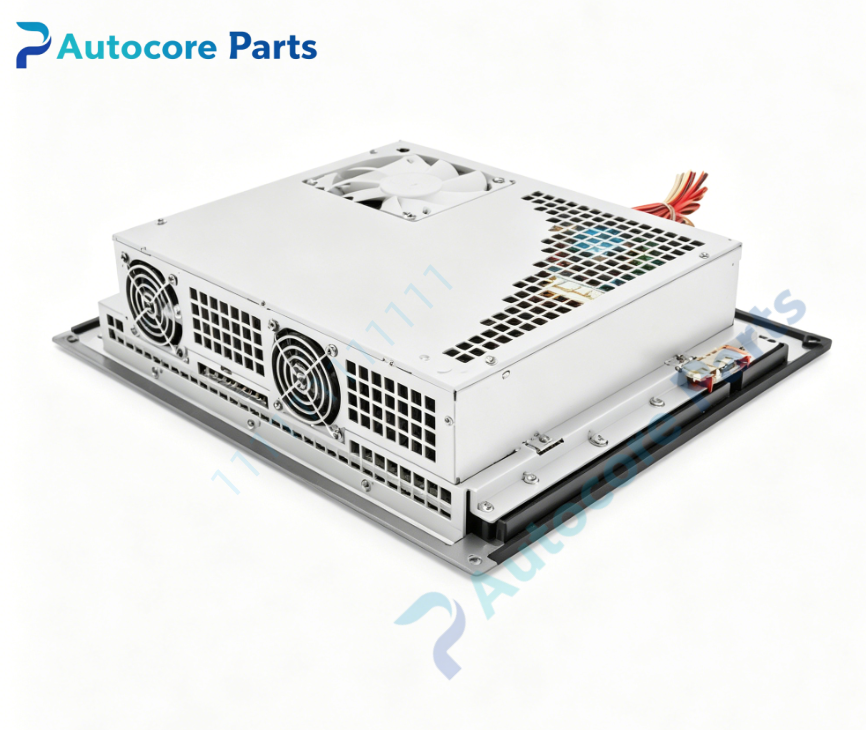

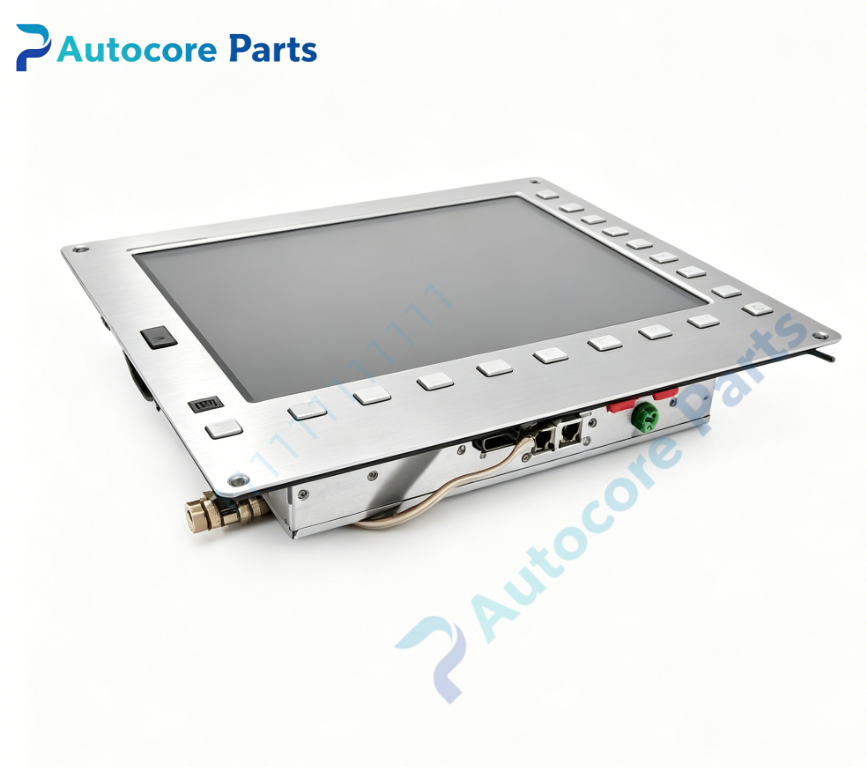

HEIDENHAIN MC7522 CNC Main Computer

Technical Specifications

Model： MC7522

Brand： HEIDENHAIN

Product Type: Rack-mounted NC main computer for HEIDENHAIN HSCI CNC control system

Module Feature:

Function: HEIDENHAIN MC7522 is the core NC main computer for TNC contouring control system. It executes NC program parsing, path interpolation and motion command distribution. It communicates with CC control units via HSCI high-speed serial bus, manages PLC logic, probe functions, tool management and system parameter storage. It works with Gen3 modular servo drive system. Used on heavy horizontal boring mills and multi-axis machining centers.

Interface: HSCI high speed control bus Storage: CFast memory card for NC software and parameters License: SIK module for activating axis channels and software options Onboard components: Industrial CPU board, memory module, HSCI communication circuit, CFast socket, metal rack housing, terminal connectors

LED indicators: POWER, RUN, HSCI, FAULT diagnostic lights

Hardware self-diagnosis: Power supply monitoring, HSCI communication diagnosis, internal temperature detection, storage media check

Programming software: HEIDENHAIN proprietary software for NC parameter loading, backup, restore and fault log analysis

Electrical Parameters

Supply voltage: 24VDC

Power consumption: Max 42W

Mechanical & Structure:

Mounting: Cabinet 19-inch rack mount Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +55℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: HEIDENHAIN legacy HSCI main computer

System compatibility

Compatibility description: MC7522 belongs to HEIDENHAIN HSCI main computer family. Works with CC series control units, PLB62xx PLC modules and Gen3 UM power modules. Compatible with HEIDENHAIN EnDat /1Vpp encoders and Fives Giddings & Lewis PIC900 CNC heavy boring mill system.

Function

Function description: MC7522 is NC main computer manufactured by HEIDENHAIN. It reads and interprets CNC part programs, calculates contour path and sends motion commands to axis control modules over HSCI bus. It manages tool data, workpiece coordinate system, probe measurement cycles and machine alarm logs. SIK chip defines licensed axis quantity and optional functions. It is core CNC control spare for heavy CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off 24V control power. Insert MC7522 into cabinet rack. Connect HSCI communication cable to CC control unit, wire 24VDC power and PLC bus. Install CFast card and SIK license module. Load machine parameters. Restore power, verify LED indicators, run system boot and axis test.

Interface

Interface list: 24VDC power terminal, HSCI bus connector, PLC communication port, CFast card slot, SIK socket,on-board POWER / RUN / HSCI / FAULT LED indicators for HEIDENHAIN MC7522.

Diagnostic

Troubleshooting: System boot failure: Check 24V power supply, CFast card integrity or SIK license error. HSCI communication fault: Loose HSCI cable, mismatched firmware or defective CC module. Program execution abnormality: Parameter corruption, storage media failure or hardware over-temperature.

Product Brief

Brief description: MC7522 is HEIDENHAIN legacy rack mount HSCI NC main computer,runs CNC program and sends motion commands via HSCI bus for Gen3 servo drives on heavy CNC boring mills,CNC main computer spare.
