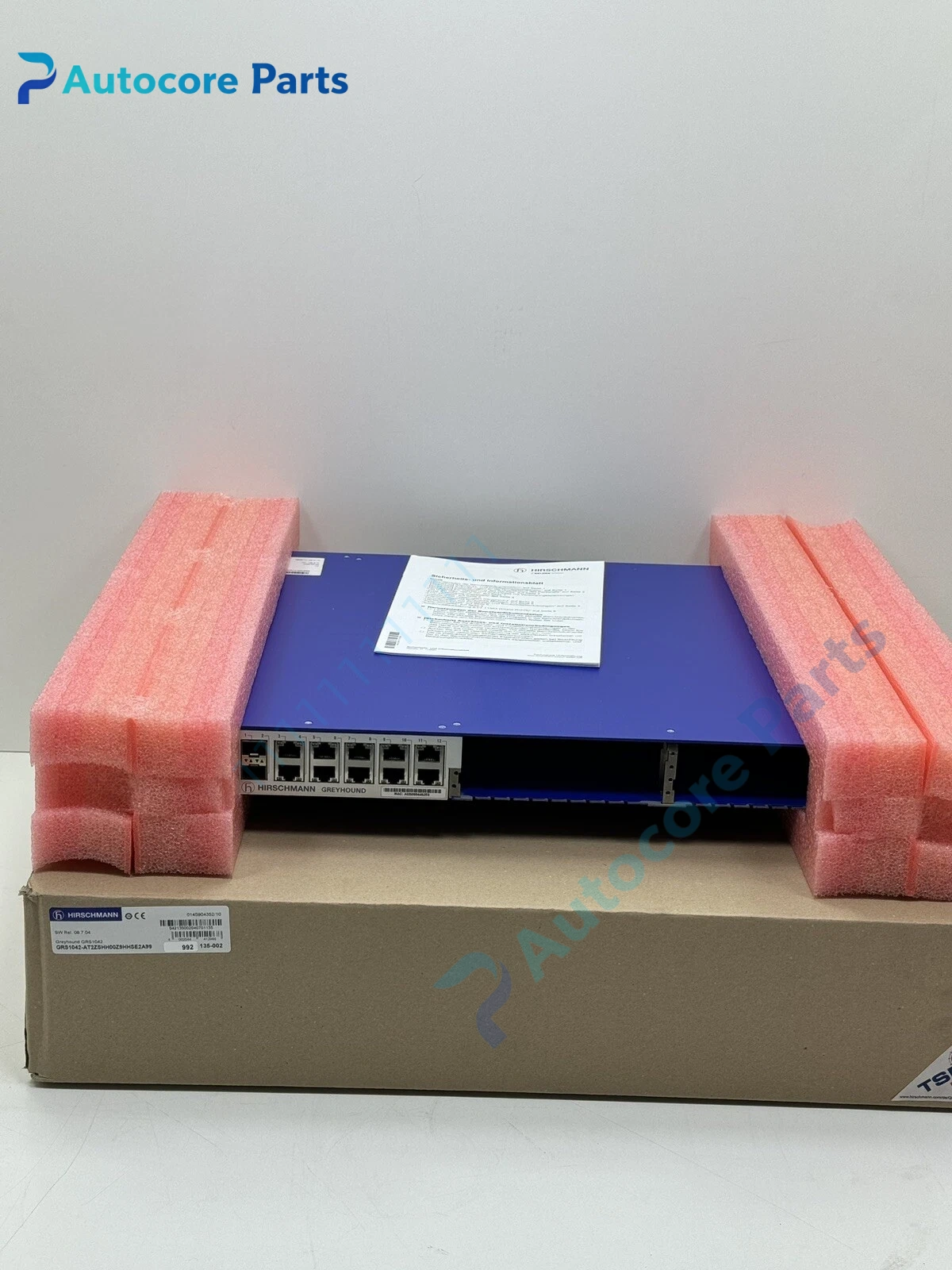

Hirschmann GRS1042-AT2ZSHH00Z9HHSE2A99-992 GREYHOUND 1042 Industrial Managed Switch Unit

Module Feature

GRS1042-AT2ZSHH00Z9HHSE2A99-992 is the AT2Z configuration variant of Belden Hirschmann GREYHOUND GRS1042 series modular managed gigabit switch. It adopts fanless passive cooling design, 19-inch rack mounting, dual hot-swappable power supply slots for power redundancy. It supports up to 28 gigabit ports, including RJ45 copper ports and SFP / 2.5G SFP fiber slots, expandable via GMM media modules. It runs on Hirschmann HiOS firmware, supports layer 2 switching, layer 3 routing, IEEE1588 PTP precision time synchronization, MRP, HIPER-Ring, PROFINET, EtherNet/IP and IEC61850 substation communication protocols. EMC heavy industry grade, anti-vibration and wide temperature design. It is widely stocked as emergency spare for power substation, rail transit, oil & gas and factory backbone communication cabinet.

Working principle

After power-on, the switch completes hardware initialization and HiOS system startup. It performs Ethernet frame forwarding, ring network redundancy management, PTP timestamp synchronization and access control according to configured rules. It continuously monitors port link status, power module health and network ring status. When link break occurs, ring protocol quickly switches the backup path to realize fast network recovery. Built-in fault alarm relay output reports abnormal status to DCS or SCADA system.

Onboard components

Main switching CPU, SFP fiber transceiver slots, RJ45 copper port PHY chips, dual power supply module slots, media module expansion slots, SD card slot for configuration backup, out-of-band management port, status LED array, alarm relay contact and metal chassis.

LED indicators

Port LED: Link / activity status Power LED: Power supply A/B status System LED: Run, fault, ring status

Hardware self‑diagnosis

Built-in supervision detects power supply loss, port link down, ring break, over-temperature, SFP module abnormal and configuration mismatch. Configuration and fault diagnosis are completed by Hirschmann HiOS configuration software / HiDiscovery.

Programming softwareHiDiscovery / HiOS Web & CLI, used for IP assignment, ring topology setup, PTP configuration, VLAN, access control and log reading.

Electrical & Process Parameters

Model:GRS1042-AT2ZSHH00Z9HHSE2A99-992 Brand:Hirschmann (Belden) Device type:GREYHOUND 1042 modular managed gigabit industrial switch Function:Industrial backbone Ethernet data exchange, ring redundancy and PTP time synchronization for substation, rail and harsh automation network

Mechanical & Structure

Mounting:19 inch standard rack mounting Protection class:IP30 front panel Housing:Heavy-duty metal fanless chassis

Environmental

Operating temperature:-40℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, ATEX optional, IEC61850, IEC61000 EMC heavy industry Status:Original Hirschmann industrial network spare

Installation

Cut off rack power before replacement. Match the AT2Z hardware variant, install correct redundant power modules and SFP transceivers, upload HiOS configuration file, test ring switchover, PTP sync and all port communication after commissioning.

Interface

RJ45 gigabit copper ports, SFP / 2.5G SFP fiber slots, out-of-band management RJ45 port, SD card slot, USB service port, alarm relay terminal, dual power supply terminal block.

Diagnostic

Port trouble: SFP fault, fiber attenuation, cable damage. Ring fault: Ring break, neighbor switch offline. Power alarm: One redundant PSU failed. Sync fault: PTP master clock lost, time offset over threshold.

Product Brief

GRS1042-AT2ZSHH00Z9HHSE2A99-992 switch, Hirschmann GREYHOUND 1042 modular managed gigabit network spare for power substation and railway backbone communication cabinet replacement.
