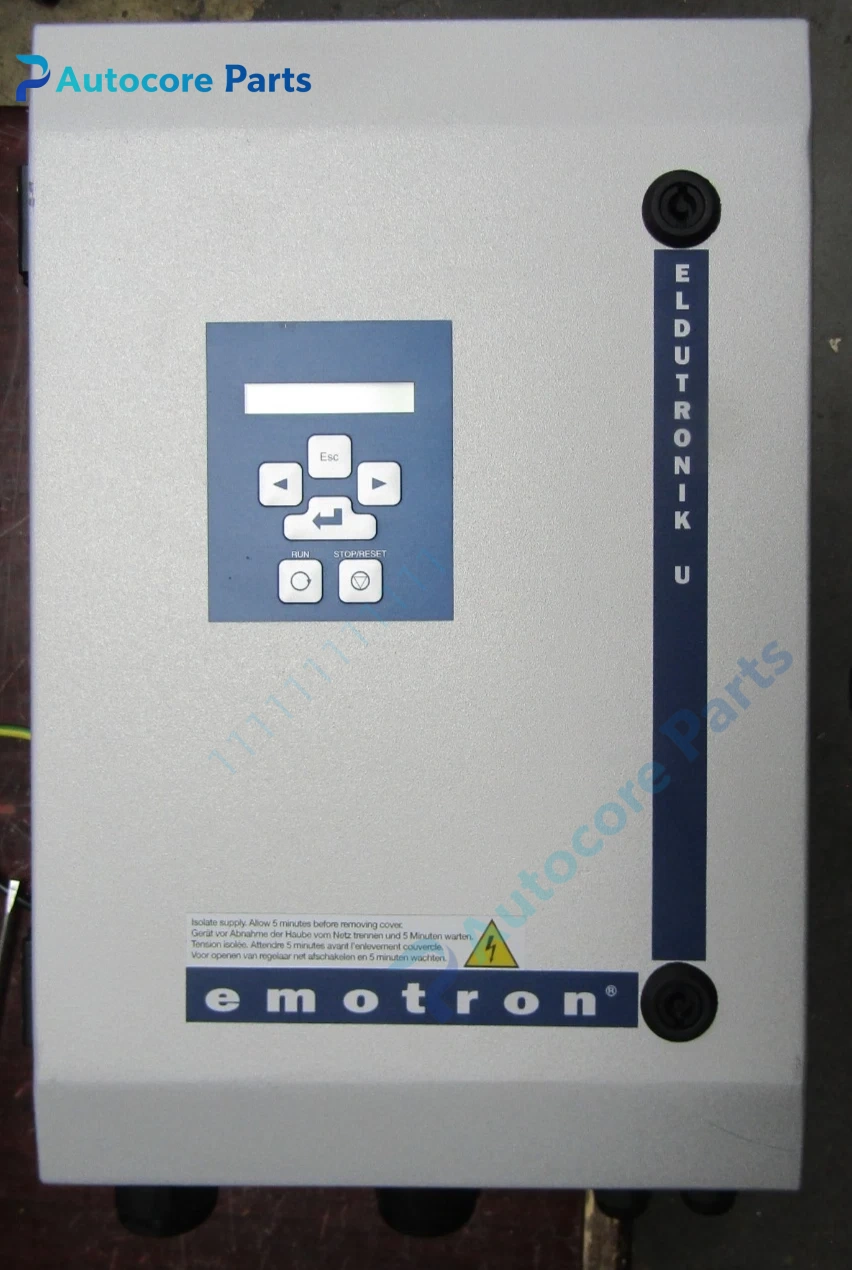

U2T-15/400/M/DC/LT/1 Variable Frequency Drive Unit

Module Feature

U2T-15/400/M/DC/LT/1 belongs to U2T heavy-duty variable frequency drive series. It adopts high-performance IGBT power module, supporting V/F control and sensorless vector control. This unit supports DC bus input, can be matched with external DC power supply system. Low-temperature hardware design ensures reliable startup and stable operation in cold working environment. Equipped with multi-function analog and digital I/O terminals, standard Modbus RTU communication interface to connect PLC and industrial control network. Built-in cooling fan and robust metal housing support continuous heavy-load operation. Widely used for industrial fans, water pumps, medium conveyors and other low-temperature field motor speed control applications.

Working principle

AC or DC power feeds the internal DC bus of the inverter. IGBT power unit converts DC power to AC power with adjustable frequency and voltage to drive the motor. Motor rotation speed is adjusted by changing output frequency. When motor decelerates, regenerative energy flows back to DC bus, external braking resistor dissipates surplus energy to prevent overvoltage fault trip.

Onboard components

DC bus terminal block, IGBT power module, DC bus capacitor, main control PCB, multi-function digital/analog I/O terminal block, cooling fan, operation keypad, status indicator panel, surge protection circuit.

LED indicators

Power LED, run LED, fault alarm LED.

Hardware self-diagnosis

Overvoltage, undervoltage, overcurrent, over-temperature, short circuit, ground fault detection, records fault code and historical operation logs.

Programming software

Manufacturer PC software for parameter backup, real-time running monitoring and firmware upgrade.

Electrical & Process Parameters

Model:U2T-15/400/M/DC/LT/1 Brand: Device type:U2T Series Heavy Duty 3-phase Variable Frequency Drive Rated power:15kW Rated voltage:400V Control mode:V/F, Sensorless vector control Power input:DC bus input compatible Communication:Modbus RTU Cooling:Forced air cooling Protection:Overcurrent, overvoltage, undervoltage, over temperature, short circuit, earth fault

Mechanical & Structure

Mounting:Panel mount inside control cabinet Protection class:IP20 Housing:Metal painted reinforced enclosure

Environmental

Operating temperature:-30℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status: Original low temperature multi-function heavy-duty VFD for industrial motor variable speed control

Installation

Follow strict ESD and high voltage safety procedure before handling. Mount the drive vertically in control cabinet and reserve sufficient ventilation space. Connect DC bus power cable and motor cable to corresponding terminals, set motor nameplate parameters before commissioning.

Interface

DC power input terminals, motor output terminals, multi-function digital/analog I/O terminals, Modbus communication port, keypad interface.

Diagnostic

Drive trip on startup: motor cable short circuit, wrong motor parameters or winding insulation damage. Over temperature fault: cooling fan failure or insufficient cabinet ventilation. No communication: incorrect Modbus station address or wiring error.

Product Brief

U2T-15/400/M/DC/LT/1 U2T series low temperature heavy-duty variable frequency drive, 3-phase 15kW 400V, DC bus input supported, multi-function I/O, IP20 panel mount, for industrial fan, pump and machinery speed regulation.
