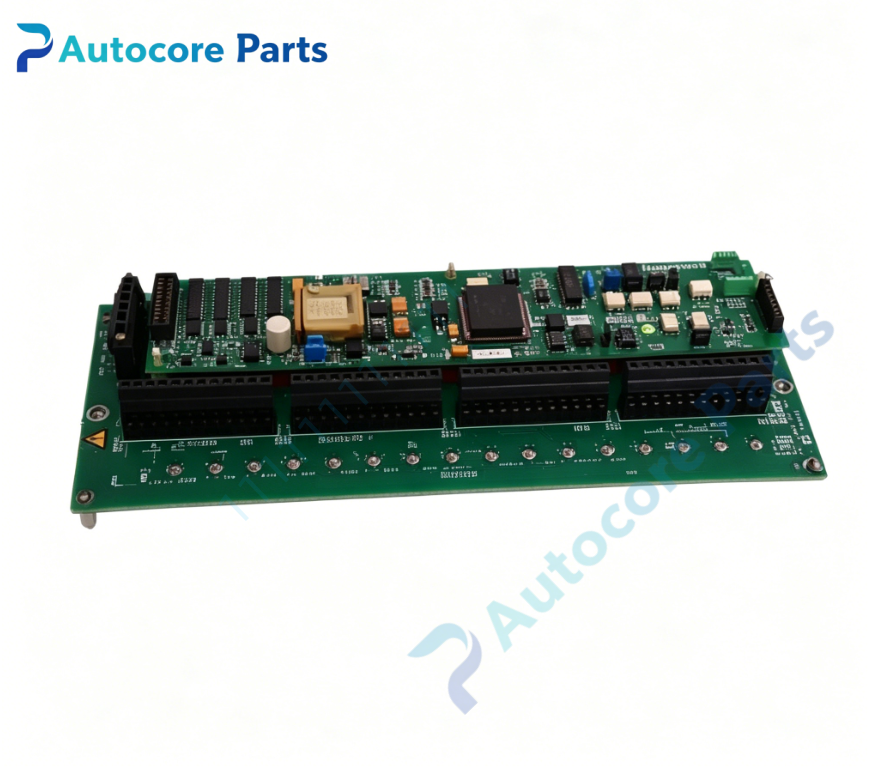

Honeywell 51197018100 Digital Output Module

Technical Specifications

Model:51197018100

Brand:Honeywell

Product type:FSC safety digital output module

System series:FSC Fail Safe Controller SIS

Bus type:Parallel backplane system bus

Compatible modules:FSC main controller,digital input boards,backplane assembly,redundant power supply

Redundancy:Supports DMR dual modular redundant / QMR quadruple modular redundant configuration

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:4.39kg

Certification:CE,TÜV,SIL3

System compatibility

This digital output hardware belongs to Honeywell FSC safety instrumented system,installed inside FSC rack cabinet. It receives safety interlock logic commands from main controller and sends discrete drive signals to field solenoid valves and safety contactors. It interconnects with Experion PKS DCS platform, widely used in oil & gas, petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

51197018100 serves as the fail-safe output unit of FSC SIS. It converts internal safety logic instructions into field switch signals to execute protective shutdown actions. Each output channel runs continuous circuit monitoring, detecting cable break, short circuit and actuator circuit fault in real time.

Installation

Insert the module vertically into designated backplane slot of FSC rack. Wire field actuator cables onto terminal blocks, configure channel logic and fault detection parameters via Honeywell FSC engineering software.

Interface

‑Gold finger connector for backplane bus communication

‑Field wiring terminals for actuator connection

‑Internal signal driving traces

‑LED indicators for channel running status and fault warning

Circuit feature

Conformal coated multi-layer PCB design,built-in signal drive circuit and surge suppression protection. Independent fault monitoring circuit for each channel, fully compliant with SIL3 functional safety hardware standards.

Feature

51197018100 is a spare digital output board within Honeywell FSC SIS spare range. Common faults include drive circuit burnout,gold finger oxidation and channel output failure. Confirm rack slot definition and firmware compatibility before replacement.

Diagnostic

When channel open circuit,short circuit or hardware defect is detected,the module will trigger safety alarm and upload detailed fault diagnostic logs to safety workstation.

Built‑in function

Fail-safe interlock signal output and channel health diagnosis for FSC safety rack,used as SIS digital output spare replacement.

Product Brief

51197018100 is Honeywell FSC SIL3 digital output module,supporting DMR/QMR redundant architecture. Verify rack compatibility before ordering. ESD anti-static protection must be followed during handling and installation.
