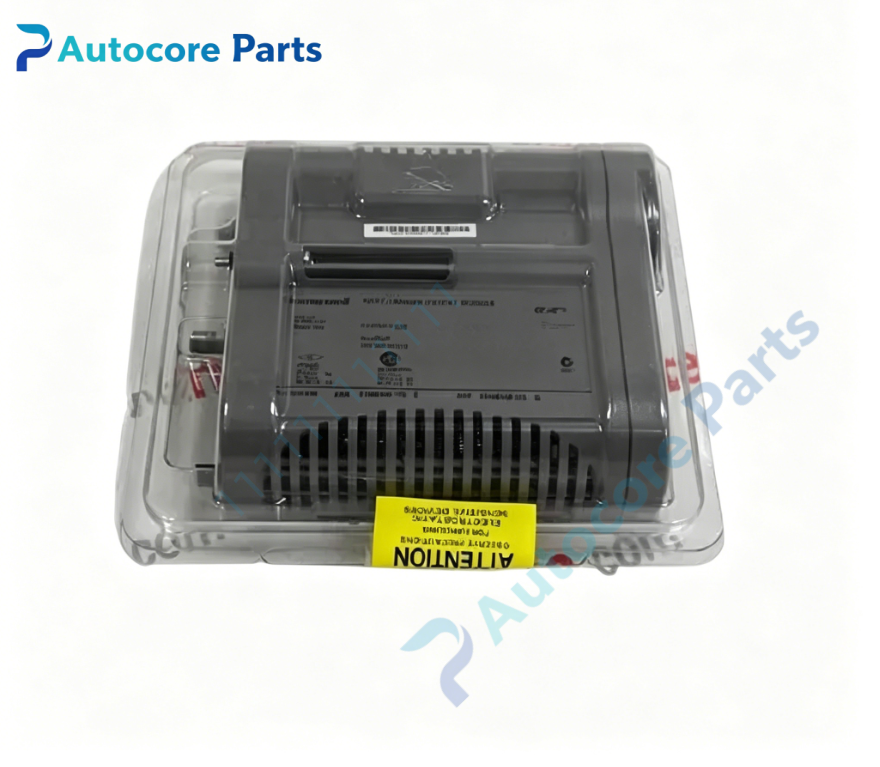

Honeywell 51197020100 Digital Output Module

Technical Specifications

Model:51197020100

Brand:Honeywell

Product type:FSC safety digital output module

System series:FSC Fail Safe Controller SIS

Bus type:Parallel backplane system bus

Compatible modules:FSC main controller,digital input modules,system backplane,redundant power supply units

Redundancy:Supports DMR dual modular redundant / QMR quadruple modular redundant configuration

Power bus:5V DC,24V DC power supply

Operating temperature:0~+60℃

Relative humidity:5~95% non-condensing

Weight:4.42kg

Certification:CE,TÜV,SIL3

System compatibility

This digital output hardware is part of Honeywell FSC safety instrumented system and mounted inside FSC rack cabinet. It receives safety logic orders from main controller and outputs discrete drive signals to field solenoid valves and safety contactors. It can exchange data with Experion PKS DCS,widely adopted in oil & gas,petrochemical and chemical sites for ESD emergency shutdown and fire & gas safety interlock.

Function

51197020100 acts as the fail-safe output component of FSC SIS. It translates safety logic commands from controller into field discrete signals to trigger emergency protective actions. Every output channel supports real-time circuit monitoring,able to identify cable break,short circuit and actuator circuit abnormalities.

Installation

Insert the module vertically into assigned backplane slot of FSC rack. Connect field actuator cables to terminal blocks,set channel logic and fault monitoring parameters in Honeywell FSC engineering software.

Interface

‑Gold finger connector for backplane bus communication

‑Field wiring terminals for actuator connection

‑Internal signal driving traces

‑LED indicators for channel running status and fault alert

Circuit feature

Conformal coated multi-layer PCB layout,built-in signal driving circuit and surge suppression. Each channel has separate fault detection circuit,fully meets SIL3 functional safety hardware requirements.

Feature

51197020100 is a spare digital output board for Honeywell FSC SIS system. Typical faults include drive circuit damage,gold finger corrosion and abnormal channel output. Check rack slot definition and firmware compatibility before replacement.

Diagnostic

Once channel open circuit,short circuit or hardware fault is detected,the module will activate safety alarm and upload detailed fault diagnostic logs to safety workstation.

Built‑in function

Fail-safe interlock signal output and channel health diagnosis for FSC safety rack,used as SIS digital output spare replacement.

Product Brief

51197020100 is Honeywell FSC SIL3 digital output module,supporting DMR/QMR redundant setup. Confirm rack compatibility before purchase. ESD anti-static protection is mandatory during handling and installation.
