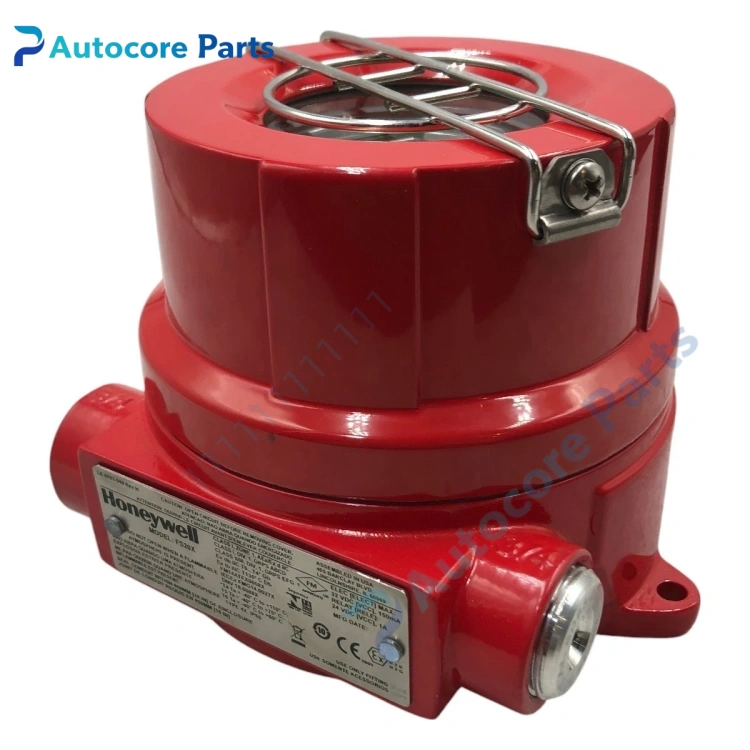

Honeywell FS20X Flame Detector

Feature & Principle

It is Honeywell FS20X multi-spectrum flame detector, adopts UV, dual infrared and visible light composite sensing technology. Dual CPU fail-safe signal processing, effectively distinguish real flame from sunlight, welding and other interference sources, reduce false alarms. It detects hydrocarbon and non-hydrocarbon flame, suitable for smoky fire scenarios. Support 4-20mA analog, relay alarm output, optional HART communication module for parameter configuration and diagnosis. With IP66 protection and ATEX/IECEx explosion-proof certification, widely deployed in petrochemical, offshore platform, LNG station, turbine room.

Specifications

Model: FS20X Brand: Honeywell Detection principle: UV + Dual IR + Visible light Power supply: 24 VDC Output: 4-20mA, SPDT relay, optional HART Housing: Copper-free aluminum / 316 stainless steel Protection grade: IP66, NEMA 4X Working temperature: -40 ~ +85℃ Certification: ATEX, IECEx, FM, SIL2 optional Application: Refinery, chemical plant, offshore platform, gas storage area

Components & Diagnostics

Optical sensor assembly, main processing board, relay unit, status LED indicator, explosion-proof housing, wiring terminal. Common faults: lens contamination, communication failure, fault alarm, power abnormality, sensor aging.

Product Brief

FS20X multi-spectrum flame detector, Honeywell explosion-proof fire detection spare widely used for petrochemical and gas hazardous zone overhaul and replacement.
