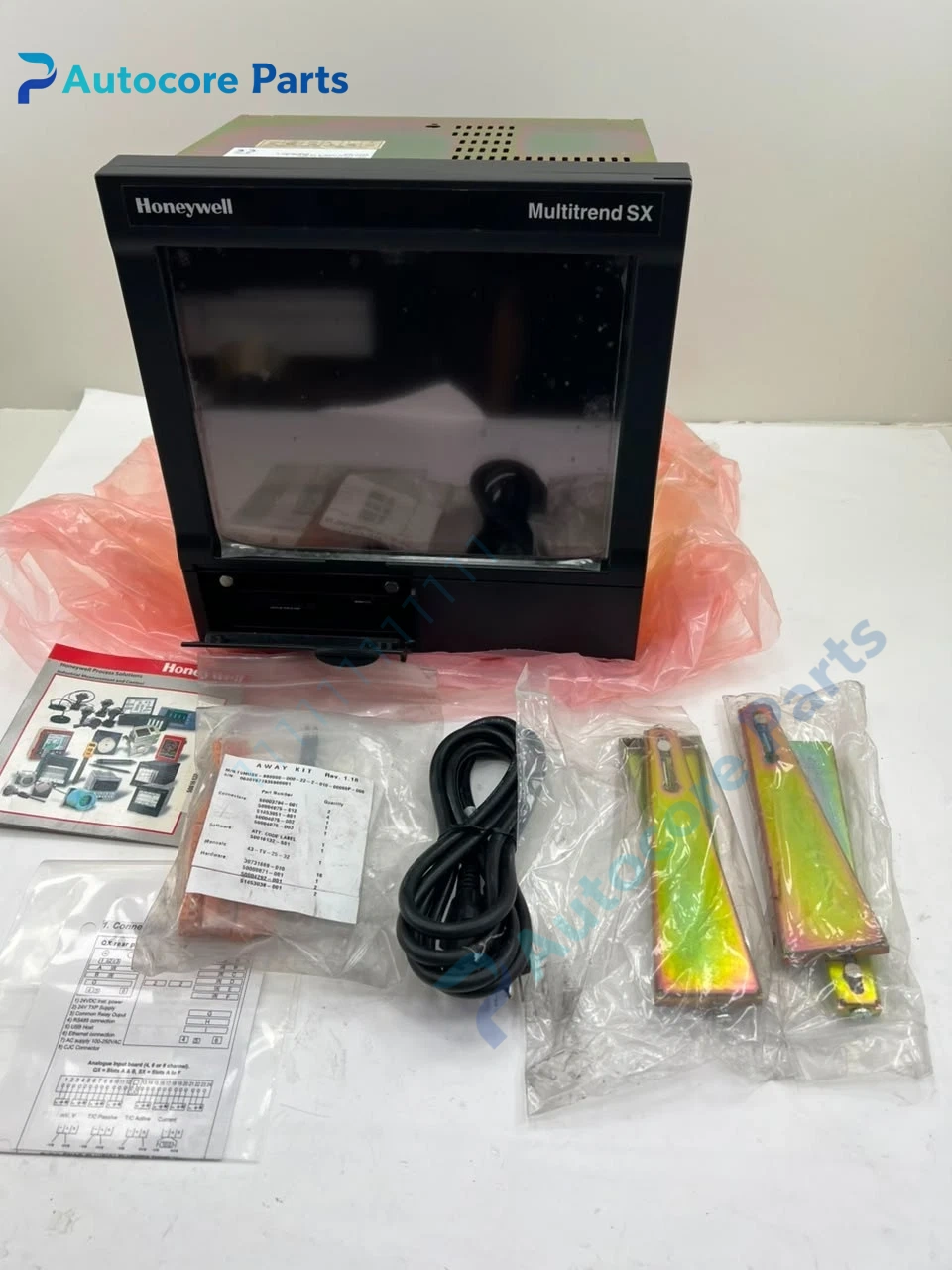

Honeywell TVMUSX-880000-000-22-2-010-00000P-000 Multitrend SX Recorder Unit

Module Feature

TVMUSX-880000-000-22-2-010-00000P-000 belongs to Honeywell Multitrend SX series paperless recorder. It adopts high resolution color touch display, universal input card design.

It can receive thermocouple, RTD, 4-20mA, voltage and pulse signals simultaneously, realize real-time trend curve display, historical data storage, alarm event recording and report output. The model code defines channel quantity, power supply, communication, storage and optional printing function. It has front IP55 protection grade, supports USB data export and Ethernet/Modbus networking. Widely used in thermal power, chemical, pharmaceutical and heat supply process monitoring occasions.

Working principle

The signal acquisition board collects field sensor analog or digital signals, and the main controller converts them into engineering values.

The system draws real-time trend curves on the screen and stores data in internal memory or external USB medium. When measurement value exceeds preset alarm threshold, sound and light alarm will be triggered. Historical data can be queried, exported and analyzed through local touch screen or upper computer software.

Onboard components

Color TFT touch display panel, main control motherboard, universal signal input module, power supply unit, internal flash storage chip, buzzer alarm, Ethernet communication port, USB interface and panel sealing frame.

LED indicators

Front panel LEDs indicate power status, recording active, alarm and communication running status.

Hardware self‑diagnosis

Built-in self-check covers input channel open/short circuit, internal storage error, power supply anomaly, communication timeout and touch screen fault. Fault information will pop up on display.

Programming software

Honeywell recorder configuration software for channel parameter setting, alarm threshold configuration, sampling rate setup and historical data analysis.

Electrical & Process Parameters

Model:TVMUSX-880000-000-22-2-010-00000P-000 Brand:Honeywell Device type:Paperless Recorder Screen:12.1 inch color touch screen Input:Universal TC/RTD/mA/V/pulse Signal:Modbus, Ethernet, USB Supply:100~240V AC Function:Industrial process multi-parameter trend recording, data storage and alarm monitoring

Mechanical & Structure

Mounting:Panel cutout installation in control cabinet Protection class:IP55 front panel Housing:Reinforced metal recorder cabinet

Environmental

Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, UL compliant Status:Honeywell original industrial recorder spare

Installation

Cut panel opening according to dimension drawing, insert recorder and lock fixing clips.

Wire each signal channel separately with shielded cable, do not mix power cable and signal cable. Set channel type, range and alarm parameters on touch screen. Regularly export historical data and check storage space.

Interface

Universal signal input terminals, AC power terminal, Ethernet communication port, USB data export port, relay alarm contact.

Diagnostic

No channel reading: Signal wiring reverse, input type parameter mismatch or sensor failure.

Cannot save history: Storage medium full or internal flash fault.

Communication offline: Network cable broken, IP address conflict.

Product BriefHoneywell TVMUSX-880000-000-22-2-010-00000P-000 Multitrend SX paperless recorder, multi-channel universal input, touch screen trend display, used for petrochemical and power plant process data recording.
