ICS TRIPLEX T8461 Digital Output Module

Technical Specifications

Model:T8461

Brand:ICS TRIPLEX

Product type:TMR 40-channel digital output module

System series:Trusted T8000 SIS

Bus type:Triple redundant parallel backplane bus

Compatible modules:T8300 / T8314 expander chassis,T8310 expander processor,T8311 expander interface

Redundancy:TMR triple modular redundant hot swap architecture

Field output:18~60VDC,40 channels,5 independent power groups (8 channels per group)

Per channel continuous current:0.75A

Group maximum current:6A

System supply:20~32VDC

Galvanic isolation:2500V DC

Response time:0.5ms

SOE resolution:1ms

Protection:Built-in per-channel automatic overcurrent protection,no external fuse required

Operating temperature:-5~+60℃

Relative humidity:5~95% non-condensing

Weight:1.32kg

Certification:CE,TÜV,SIL3

System compatibility

T8461 belongs to ICS TRIPLEX Trusted SIS safety instrumented system and installs inside T8300 or T8314 expander rack. It receives triplicated safety trip commands from expander processor and outputs 24/48VDC discrete signals to drive field safety relays,solenoid valves and shutdown actuators. Widely deployed in oil & gas,petrochemical and chemical plants for ESD emergency shutdown and fire & gas safety protection.

Function

T8461 serves as high integrity 40-channel 24/48V digital output unit of Trusted TMR SIS. It executes TMR 2oo3 hardware voting logic to output safety trip signals for final safety elements. It supports 0.5ms fast response and 1ms SOE timestamp recording for safety event analysis. Each channel continuously monitors open circuit,short circuit and overload faults. It supports hot swap replacement without shutting down the safety expansion rack.

Installation

Insert T8461 vertically into dedicated I/O slot of T8300/T8314 expander chassis. Connect field solenoid and relay wiring to terminal assembly. Verify output status and fault alarms via Trusted Workbench engineering software.

Interface

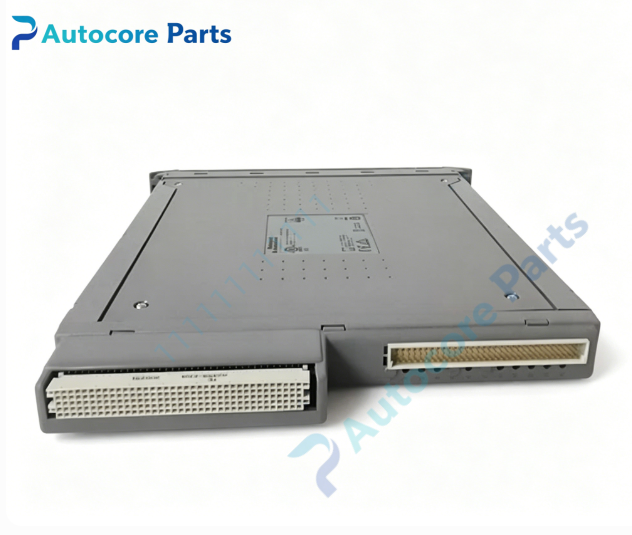

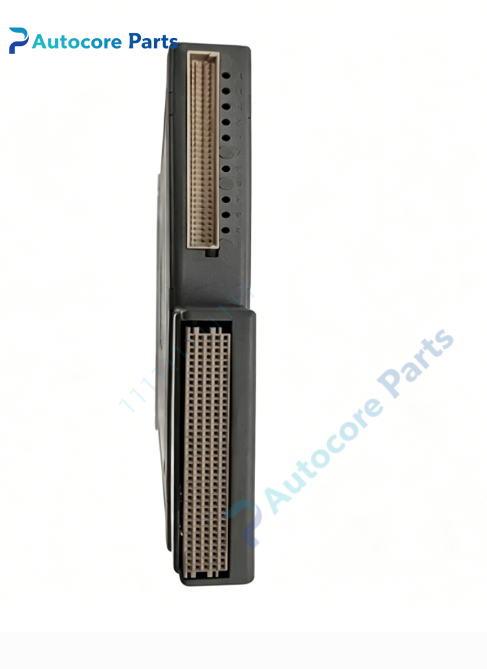

‑Gold finger connector for triple redundant backplane bus

‑Field termination interface for 40-channel 24/48VDC digital output wiring

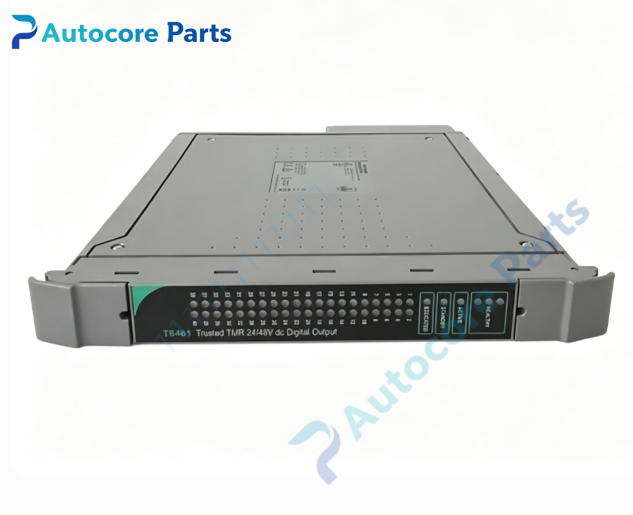

‑Front panel LED indicators for per-channel run,alarm and fault status

‑Onboard TMR output control,overcurrent protection and channel diagnostic circuit

Circuit feature

Conformal coated multi-layer PCB design,built-in surge and overvoltage protection circuit. Triple slice independent output control and hardware voting design,fully compliant with SIL3 functional safety hardware specifications.

Feature

T8461 is spare 40-channel 24/48VDC digital output board for ICS TRIPLEX Trusted SIS. Common faults include output channel burnout,field wiring short circuit and backplane contact fault. Confirm field actuator load and chassis compatibility before replacement.

Diagnostic

When channel open circuit,short circuit,overload or onboard hardware failure is detected,the module triggers fault alarm and uploads diagnostic messages and SOE event logs to safety workstation.

Built‑in function

Safety discrete 24/48VDC signal output,per-channel overcurrent & wiring fault monitoring and TMR signal voting for Trusted TMR expansion rack,used as SIS digital output spare replacement.

Product Brief

T8461 is ICS TRIPLEX Trusted SIL3 TMR 40-channel 24/48VDC digital output module,hot swappable for T8300/T8314 expander chassis,designed for ESD solenoid valve and safety relay driving. Verify system firmware compatibility before ordering. ESD anti-static protection must be followed during handling installation.
