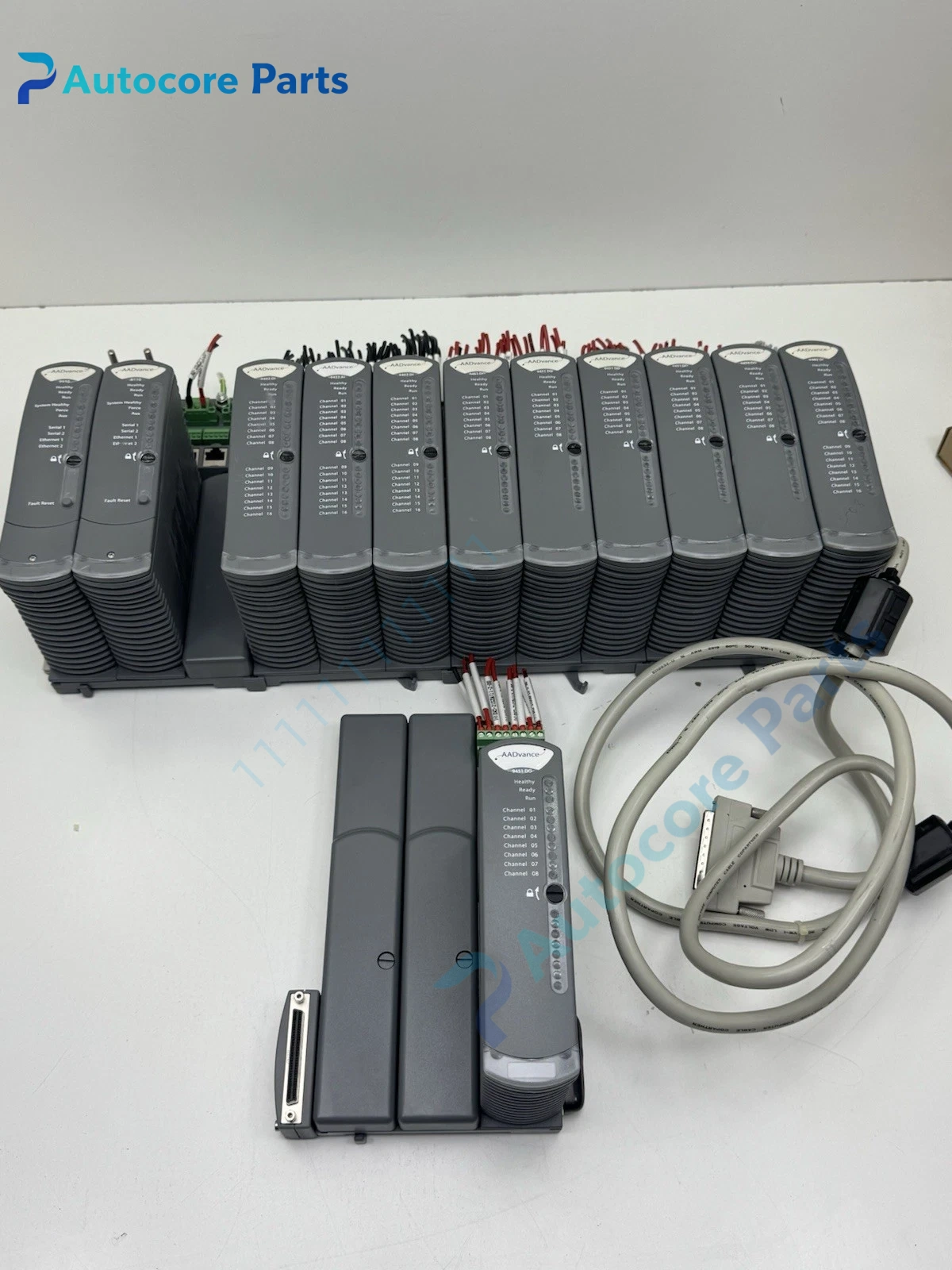

ICS Triplex T9432 Analog Input Module Unit

Module Feature

T9432 is ICS Triplex AADvance safety system analog input module with sixteen galvanically isolated input channels. It supports 4–20mA standard process signal and extended 0–24mA range, compatible with HART smart transmitters. Each channel provides open-circuit, short-circuit and out-of-range line diagnostics for safety integrity. Sampling update cycle is 6ms without filter, high resolution 15-bit conversion. It accepts redundant 24V DC power supply for high availability. Triple modular voting architecture ensures fault tolerance; single channel fault will not cause module loss of function. Configurable threshold and hysteresis can be set individually for each channel via AADvance Workbench software. Hot swap supported for online replacement without shutting down the SIS rack. Widely deployed for burner management, overpressure protection, emergency shutdown and toxic gas monitoring in petrochemical and power plant.

Working principle

Field 4–20mA signals from transmitters enter isolated input circuits. The onboard ADC converts analog current to digital value. Internal fault detection circuits check cable integrity and signal validity. Process data and diagnostic flags are transmitted to the AADvance controller backplane. Controller executes safety logic and voting to trigger ESD interlock when measurement exceeds safe limit.

Onboard componentsIsolated analog front-end circuit, 16-channel signal conditioning array, high precision ADC chipset, backplane communication FPGA, power redundancy management circuit, HART pass-through circuit, status LED bank, metal rack chassis, terminal assembly.

LED indicatorsFront panel LEDs for module health, rack communication, power status, channel fault and HART activity; individual channel fault indicators.

Hardware self‑diagnosisSelf-check covers supply voltage deviation, input open/short, signal over-range, ADC error, backplane communication timeout and internal circuit anomaly. Fault logs and channel diagnostic information are stored locally and uploaded to engineering station.

Programming softwareAADvance Workbench software for channel range configuration, alarm threshold setup, HART parameter access and firmware upgrade.

Electrical & Process Parameters

Model:T9432 Brand:ICS Triplex (Rockwell Automation) Device type:SIL2 Analog Input Module Channel count:16 isolated channels Input range:0–24mA (4–20mA standard) Resolution:15-bit, 0.98µA LSB Update rate:6ms Power supply:Redundant 24V DC, 18~32V DC Power consumption:4W max Safety rating:SIL2 IEC61508 Function:Safety analog signal acquisition for SIS and ESD system

Mechanical & Structure

Mounting:AADvance rack backplane mount Protection class:IP20 Housing:Coated metal module

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, IEC61508 SIL2, TÜV approved Status:Original AADvance SIS spare module

InstallationInsert module into matched AADvance rack slot. Wire field transmitter cables to channel terminals, follow isolation and grounding rules. Connect redundant 24V DC power. Configure channel type and alarm parameters in AADvance Workbench. Perform loop test and fault injection test before safety commissioning.

InterfaceField signal terminal block, AADvance backplane connector, redundant power terminals.

DiagnosticChannel fault alarm: Transmitter cable break, short circuit or signal out of 0–24mA range. Module health fault: Backplane communication loss, power supply imbalance or internal hardware failure. HART no response: Wrong wiring, HART address conflict or HART disabled on channel. Value drift: Transmitter drift or poor cable shielding under heavy interference.

Product BriefICS Triplex T9432 AADvance safety analog input module, 16 isolated 4-20mA HART channels, 6ms fast update, redundant 24V supply, SIL2 certified, used for ESD and SIS safety monitoring in petrochemical and power industry.
