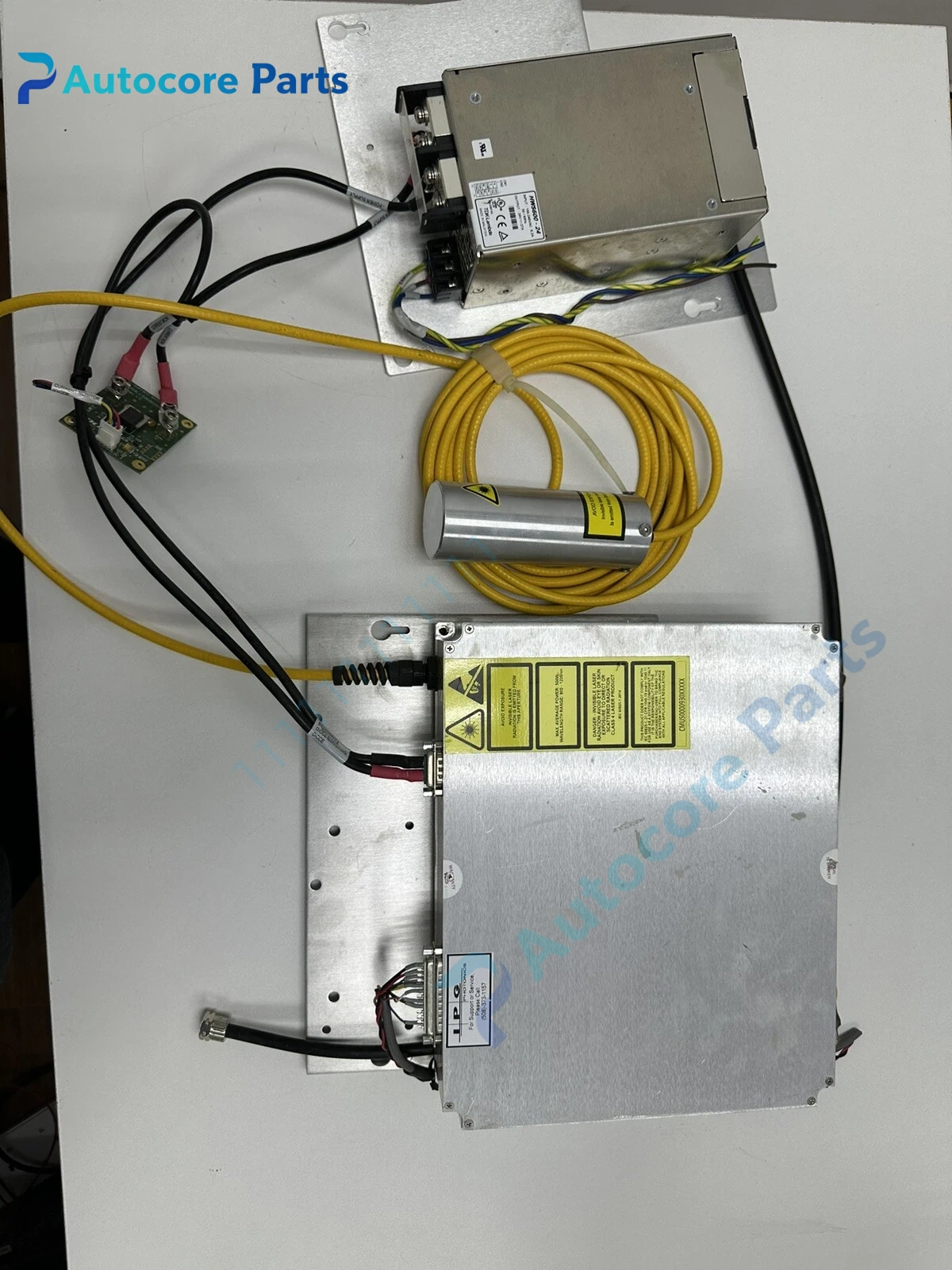

IPG DLM-200-976-EL2 200W 976nm Fiber Coupled Diode Laser Module Unit

Feature & Principle

This fiber coupled diode laser module adopts single-emitter diode chip, integrated drive and cooling structure. It outputs 976nm infrared laser through transmission fiber, equipped with red guide light for alignment. It supports high-frequency modulation, high electro-optic conversion efficiency, stable power output, widely used as pump source for fiber laser and thermal processing.

Specifications

Model: DLM-200-976-EL2 Brand: IPG Photonics Series: DLM Output power: 200W Center wavelength: 976nm Fiber output: Fiber coupled Guide laser: Red aiming laser Modulation frequency: Up to 50kHz Cooling: Air cooling Certification: CE, laser safety class

Components & Diagnostics

Diode chip array, drive control board, optical coupling assembly, delivery fiber, cooling radiator and status indicator. Common faults: power attenuation, fiber damage, guide laser failure, over-temperature alarm and drive board abnormality.

Product Brief

DLM-200-976-EL2 laser module, IPG optical spare widely used for fiber laser pumping, laser cladding, metal surface heat treatment and industrial laser equipment.
