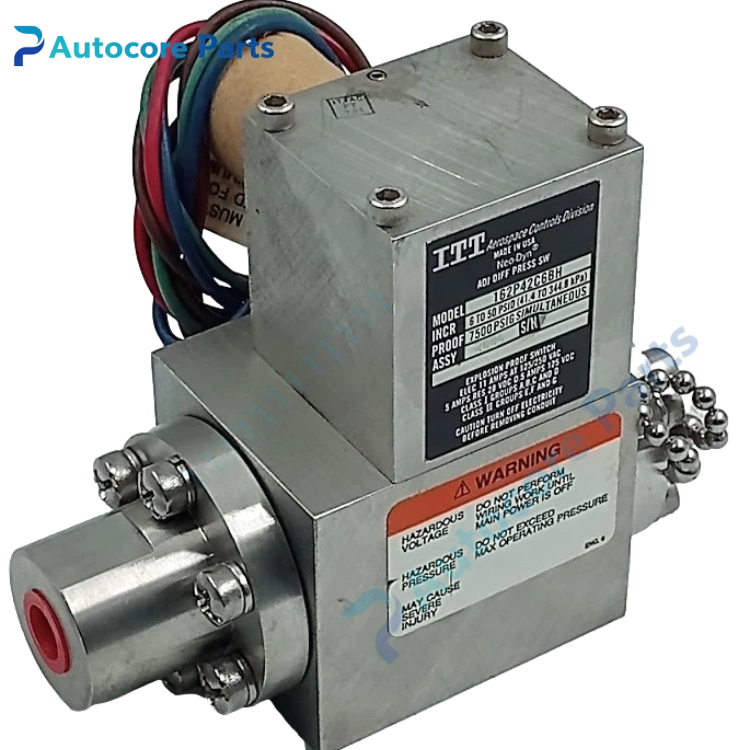

ITT Neo-Dyn 162P42C6BH Differential Pressure Switch

Feature & Principle

It is a mechanical differential pressure switch of ITT Neo-Dyn 160P series. It detects the pressure difference between high pressure port and low pressure port through internal diaphragm sensing element. When the differential pressure reaches the set threshold, the diaphragm pushes the mechanical linkage to act the micro switch, realize on-off of electrical contact signal. It supports on-site adjustment of differential pressure action value, no power supply required for sensing part, stable and reliable, suitable for filter clogging monitoring, fan air pressure difference protection and fluid pipeline interlock.

Specifications

Model: 162P42C6BH Brand: ITT Neo-Dyn Series: 160P Adjust range: 6 ~ 50 PSI Contact rating: 125/250V AC Sensing element: Diaphragm type Action type: SPDT micro switch Process connection: Standard pressure port Housing: Explosion proof optional Mounting: Surface mounting Application: Filter blockage alarm, fan differential pressure monitoring, hydraulic and gas pipeline interlock protection Certification: CE

Components & Diagnostics

Sensing diaphragm assembly, mechanical linkage, SPDT micro switch, adjustment screw, metal housing, wiring terminal. Common faults: diaphragm damage and leakage, contact ablation, pressure setting drift, switch no action.

Product Brief

162P42C6BH differential pressure switch, ITT Neo-Dyn mechanical pressure control spare widely used for industrial pipeline and fan equipment overhaul and replacement.
