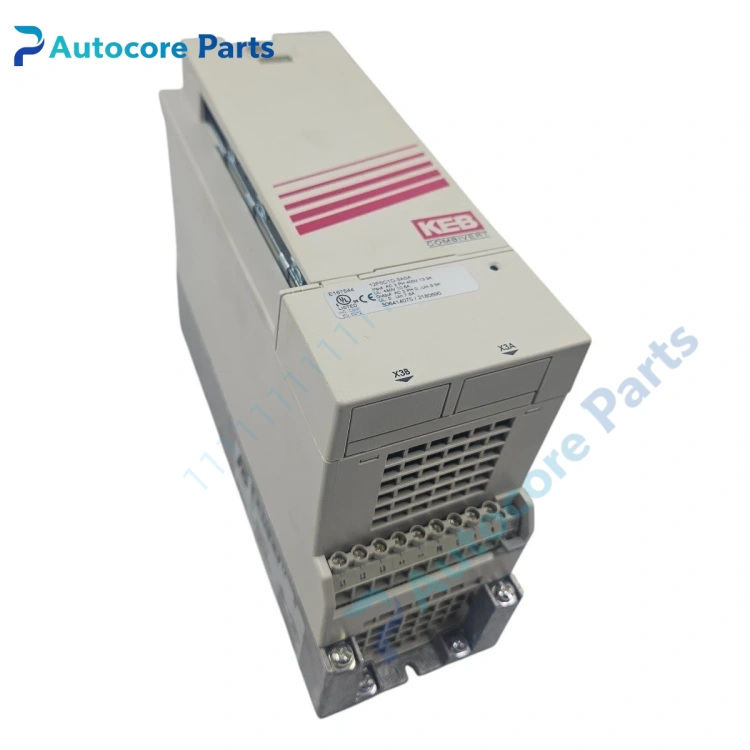

KEB 12F5C1D-3A0A Inverter

Feature & Principle

It is KEB Combivert F5 series frequency converter. It converts fixed AC power into adjustable frequency and voltage output to realize stepless speed regulation of three-phase asynchronous motor. It supports V/F control and sensorless vector control. Built-in brake transistor for fast stop. Multiple fieldbus expansion cards can be installed to connect with PLC. Compact panel mounting design, stable operation for continuous industrial production lines.

Specifications

Model: 12F5C1D-3A0A Brand: KEB Series: Combivert F5 Input: 3 × 400V AC Control mode: V/F, sensorless vector Built-in brake transistor: Yes Switching frequency: Adjustable Protection: Overcurrent, overvoltage, overtemperature, phase loss Mounting: Panel mount, IP20 Application: Packaging machine, textile machine, printing equipment, conveyor Certification: CE, UL

Components & Diagnostics

Power IGBT module, main control board, drive circuit, brake unit, heat sink, status LED and terminal block. Common faults: overcurrent alarm, communication failure, brake circuit fault, fan damage, parameter loss.

Product Brief

12F5C1D-3A0A frequency inverter, KEB Combivert F5 motion control spare widely used for automation equipment overhaul and replacement.
